AD5532HS Series

32-Channel 14-Bit bipolar DAC with High Speed 3-Wire Serial Interface

Catalog

32-Channel 14-Bit bipolar DAC with High Speed 3-Wire Serial Interface

Part	Reference Type	Number of D/A Converters	Number of Bits	INL/DNL (LSB)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package	Settling Time	Data Interface	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Package / Case	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog
Analog Devices AD5532ABC-3	External	32	14	0.39 1 LSB	Surface Mount	85 °C	-40 °C	Voltage - Unbuffered	74-CSPBGA (12x12)	30 µs	Parallel SPI	5.5 V	2.7 V	74-LBGA CSPBGA	16.5 V	-4.75 V 8 V	5 V
Analog Devices AD5532ABC-1	External	32	14	0.39 1 LSB	Surface Mount	85 °C	-40 °C	Voltage - Unbuffered	74-CSPBGA (12x12)	30 µs	Parallel SPI	5.5 V	2.7 V	74-LBGA CSPBGA	16.5 V	-4.75 V 8 V	5 V
Analog Devices AD5532ABC-5	External	32	14	0.39 1 LSB	Surface Mount	85 °C	-40 °C	Voltage - Unbuffered	74-CSPBGA (12x12)	30 µs	Parallel SPI	5.5 V	2.7 V	74-LBGA CSPBGA	16.5 V	-4.75 V 8 V	5 V
Analog Devices AD5532HSABCZ	External	32	14	0.39 1 LSB	Surface Mount	85 °C	-40 °C	Voltage - Unbuffered	74-CSPBGA (12x12)	30 µs	Parallel SPI	5.5 V	2.7 V	74-LBGA CSPBGA	16.5 V	-4.75 V 8 V	5 V
Analog Devices AD5532ABCZ-2	External	32	14	0.39 1 LSB	Surface Mount	85 °C	-40 °C	Voltage - Unbuffered	74-CSPBGA (12x12)	30 µs	Parallel SPI	5.5 V	2.7 V	74-LBGA CSPBGA	16.5 V	-4.75 V 8 V	5 V
Analog Devices AD5532ABCZ-1REEL	External	32	14	0.39 1 LSB	Surface Mount	85 °C	-40 °C	Voltage - Unbuffered	74-CSPBGA (12x12)	30 µs	Parallel SPI	5.5 V	2.7 V	74-LBGA CSPBGA	16.5 V	-4.75 V 8 V	5 V
Analog Devices AD5532ABC-2	External	32	14	0.39 1 LSB	Surface Mount	85 °C	-40 °C	Voltage - Unbuffered	74-CSPBGA (12x12)	30 µs	Parallel SPI	5.5 V	2.7 V	74-LBGA CSPBGA	16.5 V	-4.75 V 8 V	5 V
Analog Devices AD5532ABCZ-5	External	32	14	0.39 1 LSB	Surface Mount	85 °C	-40 °C	Voltage - Unbuffered	74-CSPBGA (12x12)	30 µs	Parallel SPI	5.5 V	2.7 V	74-LBGA CSPBGA	16.5 V	-4.75 V 8 V	5 V

Catalog

32-Channel 14-Bit bipolar DAC with High Speed 3-Wire Serial Interface

Key Features

• High Integration: 32-Channel DAC in 12 x 12 mm2CSPBGA

• Guaranteed Monotonic

• DSP-/Microcontroller-Compatible Serial Interface

• Channel Update Rate 1.1 MHz

• Output Impedance 0.5Ω

• Selectable Output Voltage

• 0 V to 5 V or -2.5 V to +2.5V

• AsynchronousRESETFacility

• Temperature Range -40°C to +85°C

Description

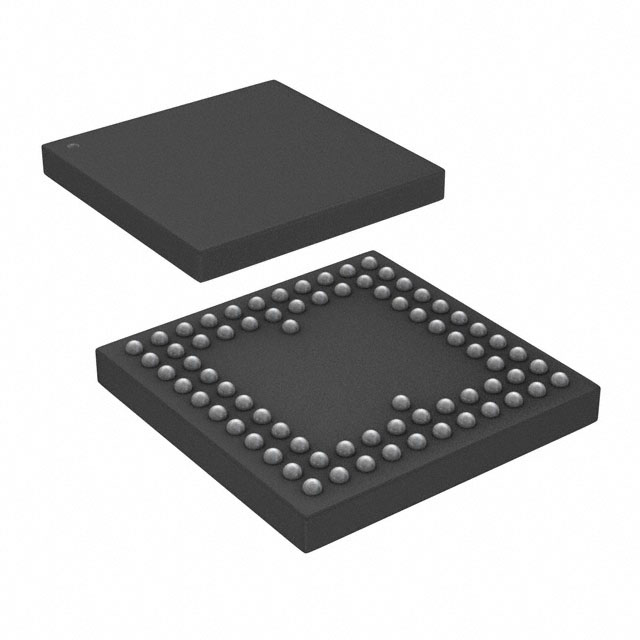

The AD5532HS is a 32-channel bipolar voltage-output 14-bit DAC with a high-speed serial interface and is packaged in a tiny 12x12 mm CSPBGA. The selected DAC register is written to via the 3-wire interface. The serial interface operates at clock rates up to 30 MHz and is compatible with DSP and microcontroller interface standards. The output voltage range is 0 V to 5 V or -2.5 V to +2.5 V and is determined by the offset voltage at the OFFS_IN pin. It is restricted to a range from VSS+ 2 V to VDD- 2 V because of the headroom of the output amplifier.The device is operated with AVCC= 5 V ± 5%, DVCC= 2.7 V to 5.25 V, VSS= –4.75 V to –12 V and VDD= +4.75 V to +12 V and requires a stable 2.5 V reference on REF_IN.PRODUCT HIGHLIGHTS32 14-bit DACs in one package, guaranteed monotonic.The AD5532HS is available in a 74-ball LFBGA package with a body size of 12 mm by 12 mm.APPLICATIONSOpticalNetworksLevel SettingInstrumentationAutomatic Test EquipmentIndustrial Control SystemsData AcquisitionLow Cost I/O
