MIC5209 Series

Catalog

IC REG LINEAR 1.8V 500MA TO263-5

Part	Current - Quiescent (Iq)	Number of Regulators	Current - Supply (Max) [Max]	Output Type	Package / Case	Supplier Device Package	Output Configuration	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Current - Output	Voltage - Input (Max) [Max]	Mounting Type	Voltage Dropout (Max) [Max]	Protection Features	PSRR	Package / Case [y]	Package / Case [x]	Output Type	Voltage - Output (Max)
Microchip Technology MIC5209-1.8BU TR	170 µA	1	25 mA	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	TO-263-5	Positive	Enable	125 °C	-40 °C	1.8 V	500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB
Microchip Technology MIC5209-3.3YS	170 µA	1	25 mA	1.81 mOhm	TO-261-4 TO-261AA	SOT-223-3	Positive		125 °C	-40 °C	3.3 V	500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB
Microchip Technology MIC5209-3.3BS TR	170 µA	1	25 mA	1.81 mOhm	TO-261-4 TO-261AA	SOT-223-3	Positive		125 °C	-40 °C	3.3 V	500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB
Microchip Technology MIC5209-3.6BU TR	170 µA	1	25 mA	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	TO-263-5	Positive	Enable	125 °C	-40 °C	3.6 V	500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB

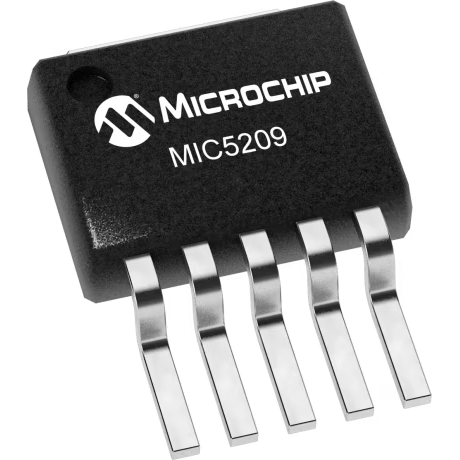

Microchip Technology MIC5209-1.8YU-TR	170 µA	1	25 mA	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	TO-263-5	Positive	Enable	125 °C	0 °C	1.8 V	500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB
Microchip Technology MIC5209-3.6YM-TR	170 µA	1	25 mA	1.81 mOhm	8-SOIC	8-SOIC	Positive	Enable	125 °C	-40 °C	3.6 V	500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB	3.9 mm	0.154 in
Microchip Technology MIC5209-3.0YS-TR	170 µA	1	25 mA	1.81 mOhm	TO-261-4 TO-261AA	SOT-223-3	Positive		125 °C	-40 °C		500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB
Microchip Technology MIC5209-5.0YU	170 µA	1	25 mA	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	TO-263-5	Positive	Enable	125 °C	-40 °C	5 V	500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB
Microchip Technology MIC5209-3.0BM-TR	170 µA	1	25 mA	1.81 mOhm	8-SOIC	8-SOIC	Positive	Enable	125 °C	-40 °C		500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB	3.9 mm	0.154 in
Microchip Technology MIC5209BM-TR	170 µA	1	25 mA		8-SOIC	8-SOIC	Positive	Enable	125 °C	-40 °C	2.5 V	500 mA	16 V	Surface Mount	0.6 V	Over Current Over Temperature Reverse Polarity	75 dB	3.9 mm	0.154 in	Adjustable	5 V
