A4B-3PA Series

Catalog

CONN HEADER

Part	Overall Contact Length	Overall Contact Length	Voltage Rating	Style	Insulation Material	Connector Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Insulation Height	Insulation Height	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Pitch - Mating	Pitch - Mating	Termination	Contact Material	Number of Rows	Number of Positions Loaded	Fastening Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]
Hirose Electric Co Ltd A4B-3PA-2DSA(51)	7.9 mm	0.311 in	200 VAC	Board to Board Cable	Nylon Polyamide (PA)	Header	2.6 mm	0.102 in	UL94 V-0	Male Pin	1.8 mm	0.071 in	Black	2 mm	0.079 in	-55 C	85 °C	Square	0.079 "	2 mm	Solder	Brass	1	All	Push-Pull	Through Hole	3.5 mm	0.138 in	Unshrouded	Gold
Hirose Electric Co Ltd A4B-3PA-2DSA	7.9 mm	0.311 in	200 V	Board to Board Cable	Nylon Polyamide (PA)	Header	2.6 mm	0.102 in	UL94 V-0	Male Pin	1.8 mm	0.071 in	Black			-55 C	85 °C	Square	0.079 "	2 mm	Solder	Brass	1	All	Push-Pull	Through Hole	3.5 mm	0.138 in	Unshrouded	Gold	2 A
Hirose Electric Co Ltd A4B-3PA-2DSA(71)	7.9 mm	0.311 in	200 V	Board to Board Cable	Nylon Polyamide (PA)	Header	2.6 mm	0.102 in	UL94 V-0	Male Pin	1.8 mm	0.071 in	Black			-55 C	85 °C	Square	0.079 "	2 mm	Solder	Brass	1	All	Push-Pull	Through Hole	3.5 mm	0.138 in	Unshrouded	Gold	2 A	2 çm	78.7 Áin	Flash	Tin
Hirose Electric Co Ltd A4B-3PA-2DS(51)			200 VAC	Board to Board Cable	Nylon Polyamide (PA)	Header	2.6 mm	0.102 in	UL94 V-0	Male Pin			Black			-55 C	85 °C	Square	0.079 "	2 mm	Kinked Pin Solder	Brass	1	All	Push-Pull	Right Angle Through Hole	3.5 mm	0.138 in	Unshrouded	Gold						2 mm	0.079 in

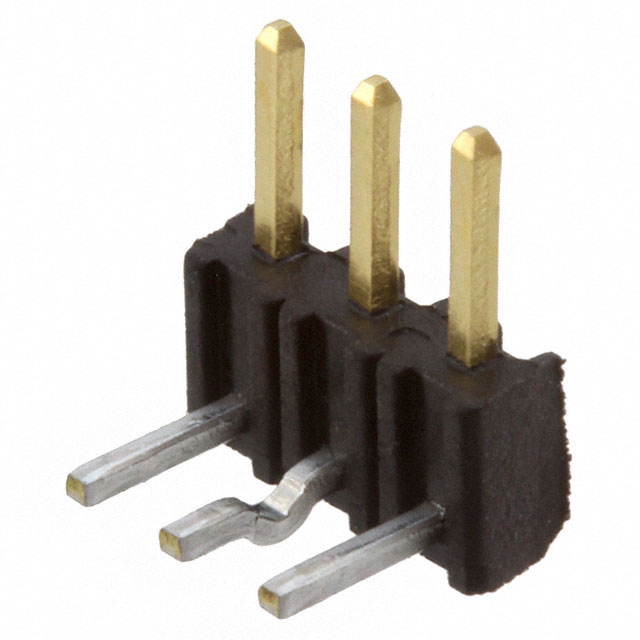

Hirose Electric Co Ltd A4B-3PA-2DS(71)			200 V	Board to Board Cable	Nylon Polyamide (PA)	Header	2.6 mm	0.102 in	UL94 V-0	Male Pin			Black			-55 C	85 °C	Square	0.079 "	2 mm	Kinked Pin Solder	Brass	1	All	Push-Pull	Right Angle Through Hole	3.5 mm	0.138 in	Unshrouded	Gold	2 A			Flash	Tin	2 mm	0.079 in	78.7 µin	2 µm
