CSD95410RRB Series

90-A peak continuous synchronous buck NexFET™ smart power stage

Catalog

90-A peak continuous synchronous buck NexFET™ smart power stage

Part	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Applications	Mounting Type	Fault Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Load Type	Package / Case	Technology	Features	Current - Peak Output

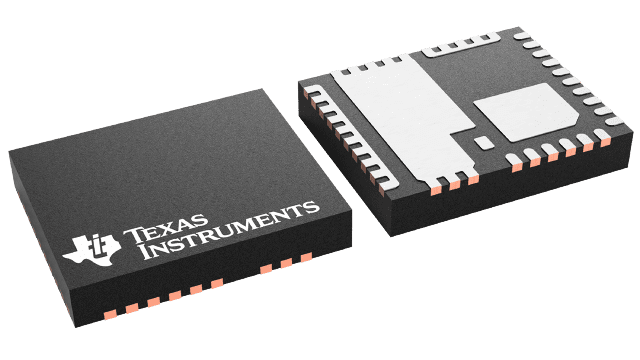

Texas Instruments CSD95410RRB	Logic PWM	-40 °C	125 °C	41-VQFN-CLIP	General Purpose	Surface Mount	Current Limiting Over Current	3.6 V	2.97 V	Capacitive Inductive	41-PowerTFQFN	Power MOSFET
Texas Instruments CSD95410RRBT		-40 °C	125 °C	41-VQFN-CLIP	Synchronous Buck Converters Voltage Regulators	Surface Mount	Shoot-Through			Inductive	41-PowerTFQFN	Power MOSFET	Bootstrap Circuit Diode Emulation	80 A

Catalog

90-A peak continuous synchronous buck NexFET™ smart power stage

Key Features

• 90-A peak continuous currentOver 95% system efficiency at 30 AHigh-frequency operation (up to 1.75 MHz)Diode emulation functionTemperature compensated bi-directional current senseAnalog temperature outputFault monitoring3.3-V and 5-V PWM signal compatibleTri-state PWM inputIntegrated bootstrap switchOptimized dead-time for shoot-through protectionHigh-density industry common QFN 5-mm × 6-mm footprintUltra-low-inductance packageSystem optimized PCB footprintThermally enhanced topside coolingRoHS compliant: lead-free terminal platingHalogen free90-A peak continuous currentOver 95% system efficiency at 30 AHigh-frequency operation (up to 1.75 MHz)Diode emulation functionTemperature compensated bi-directional current senseAnalog temperature outputFault monitoring3.3-V and 5-V PWM signal compatibleTri-state PWM inputIntegrated bootstrap switchOptimized dead-time for shoot-through protectionHigh-density industry common QFN 5-mm × 6-mm footprintUltra-low-inductance packageSystem optimized PCB footprintThermally enhanced topside coolingRoHS compliant: lead-free terminal platingHalogen free

Description

The CSD95410NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design. The CSD95410NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
