3099 Series

Pin & Socket Connectors 093 Shrd Pin Skt Hdrs 4Ckt

Manufacturer: Molex

Catalog

Pin & Socket Connectors 093 Shrd Pin Skt Hdrs 4Ckt

Catalog

Pin & Socket Connectors 093 Shrd Pin Skt Hdrs 4Ckt

Part	Connector Type	Number of Rows [custom]	Insulation Material	Fastening Type	Features	Termination	Contact Shape	Shrouding	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Positions	Mounting Type	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Type	Number of Positions Loaded	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Voltage Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)

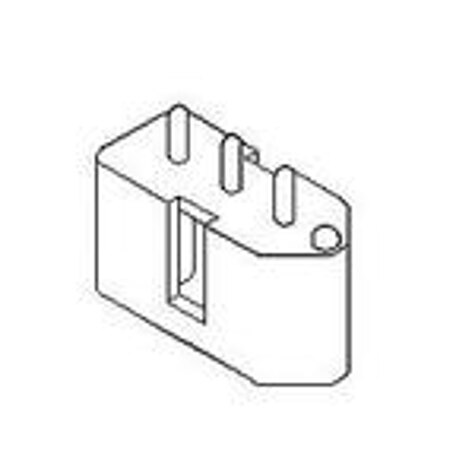

Molex 0010181120	Header	3	Polyester	Latch Lock	Board Guide	Solder	Circular	Shrouded - 4 Wall	Board to Board Cable	0.198 in	5.03 mm	5.03 mm	0.198 in	12	Through Hole	Tin	UL94 V-0	5.08 µm	200 µin	10.7 mm	0.421 "	Male Pin	All	Cartridge Brass	0.17 in	4.32 mm	Black
Molex 0010181041	Header		Polyester	Latch Lock	Board Guide	Solder	Circular	Shrouded - 4 Wall	Board to Board Cable			5.03 mm	0.198 in	4	Through Hole	Tin	UL94 V-0	5.08 µm	200 µin	10.7 mm	0.421 "	Male Pin	All	Cartridge Brass	0.17 in	4.32 mm	Black	1
Molex 10181040	Header		Polyester	Latch Lock	Board Guide	Solder	Circular	Shrouded - 4 Wall	Board to Board Cable			5.03 mm	0.198 in	4	Through Hole	Tin	UL94 V-0	5.08 µm	200 µin	10.67 mm	0.42 in	Male Pin		Cartridge Brass	0.17 in	4.32 mm	Black	1	200 µin	5.08 µm	General Purpose Telecommunications	250 V	2	-40 C	105 ░C	5 A

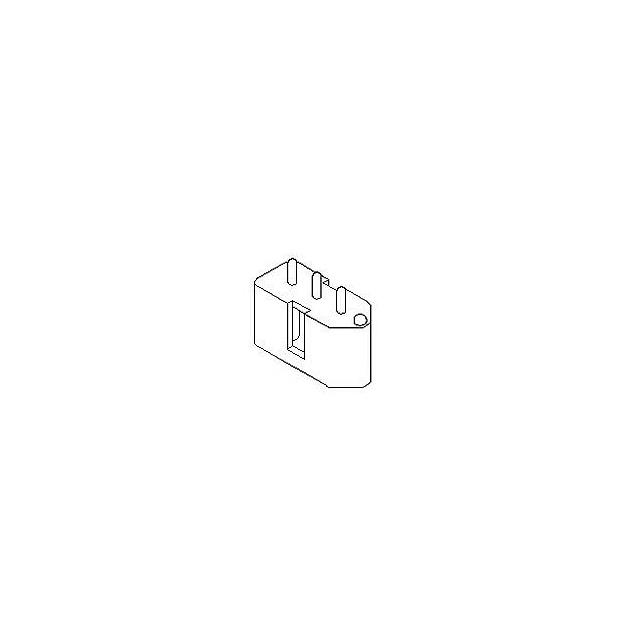

Molex 50291031
