A3A-6DA Series

Catalog

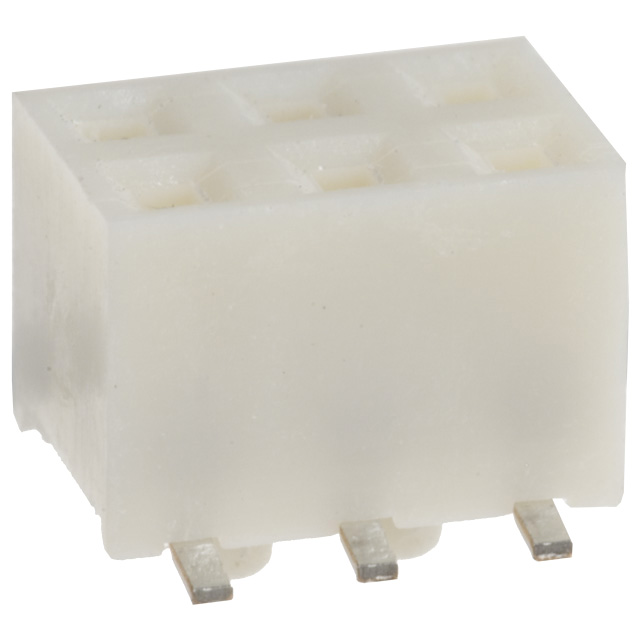

CONN RCPT 6POS 0.079 GOLD SMD

Part	Contact Shape	Contact Material	Applications	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Fastening Type	Contact Finish - Post	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Features	Contact Finish - Mating	Connector Type	Insulation Height	Insulation Height	Mated Stacking Heights	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Type	Insulation Color	Number of Positions
Hirose Electric Co Ltd A3A-6DA-2SV(71)	Square	Phosphor Bronze	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	39.4 çin	1 çm	200 VAC	Push-Pull	Tin	2	2 mm	0.079 in	Surface Mount	Board Guide	Gold	Receptacle	0.165 in	4.2 mm	5.1 mm 6 mm	Solder	UL94 V-0	8 µin	0.203 µm	All	0.079 "	2 mm	-55 C	85 °C	Board to Board Cable	Female Socket	Brown	6
Hirose Electric Co Ltd A3A-6DA-2SV	Square	Phosphor Bronze	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	39.4 çin	1 çm	200 VAC	Push-Pull	Tin	2	2 mm	0.079 in	Surface Mount	Board Guide	Gold	Receptacle	0.165 in	4.2 mm	5.1 mm 6 mm	Solder	UL94 V-0	8 µin	0.203 µm	All	0.079 "	2 mm	-55 C	85 °C	Board to Board Cable	Female Socket	Brown	6
