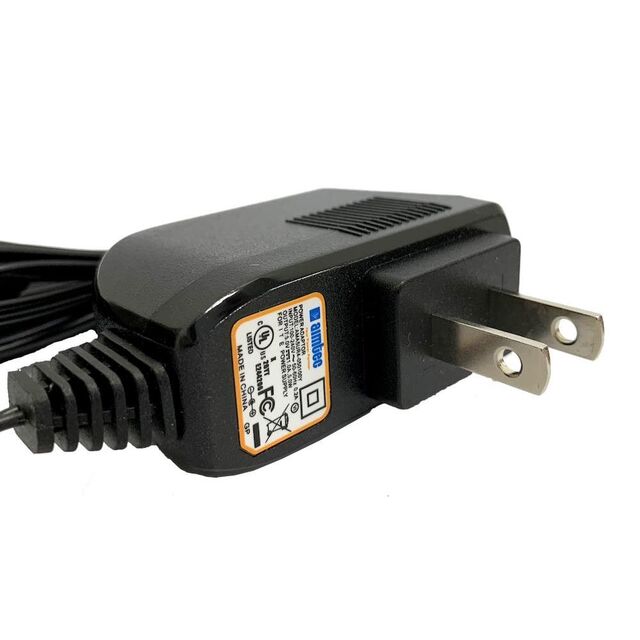

AMA5 Series

Manufacturer: aimtec

Catalog

AC/DC WALL MOUNT ADAPTER 5V 5W

Part	Weight [custom]	Weight [custom]	Current - Output (Max) [Max]	Cord Length	Cord Length	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	No Load Power Consumption	Polarization	Approval Agency	Operating Temperature [Max]	Input Type	Standard Number	Output Connector	Output Connector [diameter]	Output Connector [x]	Input Connector	Applications	Voltage - Output	Form	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized
aimtec AMA5UR4-050100Y	0.088 lb	40 g	1 A	1.5 m	60.2 in	5 W	26.2 mm	2.52 "	2.4 in	64 mm	61 mm	1.03 in	100 mW	Positive Center	CE	40 °C	Fixed Blade	60950-1	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	NEMA 1-15P	ITE (Commercial)	5 V	Wall Mount	Level VI	264 VAC	90 VAC	North America
aimtec AMA5UU3-050100Y	0.088 lb	40 g	1 A			5 W	26.2 mm	2.52 "	2.4 in	64 mm	61 mm	1.03 in	100 mW		CE IEC UL	40 °C	Fixed Blade	60950-1	USB A Receptacle			NEMA 1-15P	ITE (Commercial)	5 V	Wall Mount	Level VI	264 VAC	90 VAC	North America
aimtec AMA5ER4-050100Y	0.088 lb	40 g	1 A	1.5 m	60.2 in	5 W	26.2 mm	2.52 "	2.4 in	64 mm	61 mm	1.03 in	100 mW	Positive Center	CE	40 °C	Fixed Blade	60950-1	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	CEE 7/16	ITE (Commercial)	5 V	Wall Mount	Level VI	264 VAC	90 VAC	Europe
aimtec AMA5UR4-120050Y	0.088 lb	40 g	500 mA	1.5 m	60.2 in	6 W	26.2 mm	2.52 "	2.4 in	64 mm	61 mm	1.03 in	100 mW	Positive Center	CE	40 °C	Fixed Blade	60950-1	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	NEMA 1-15P	ITE (Commercial)	12 V	Wall Mount	Level VI	264 VAC	90 VAC	North America
aimtec AMA5UR1-033160Y	0.088 lb	40 g	1.6 A	1.5 m	59 in	5.28 W	26.2 mm	2.52 "	1.52 in	64 mm	38.7 mm	1.03 in	100 mW	Positive Center	FCC	40 °C	Fixed Blade	60950-1	Barrel Plug	1.35 mm 3.5 mm	9.5 mm	NEMA 1-15P	ITE (Commercial)	3.3 V	Wall Mount	Level VI	264 VAC	90 VAC	North America
