VN5E016 Series

16 mΩ high-side driver with analog current sense

Catalog

16 mΩ high-side driver with analog current sense

Part	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Interface	Fault Protection	Number of Outputs	Mounting Type	Features	Current - Output (Max) [Max]	Input Type	Ratio - Input:Output	Supplier Device Package	Package / Case	Switch Type	Output Type	Voltage - Supply (Vcc/Vdd)	Rds On (Typ)

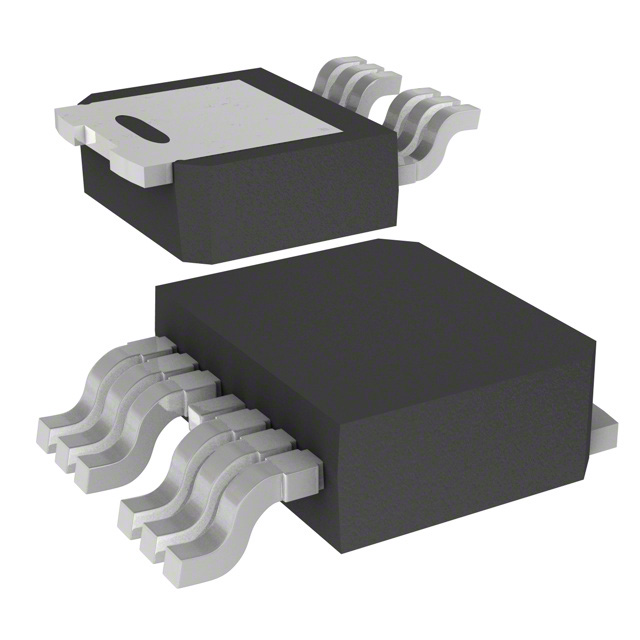

STMicroelectronics VN5E016AH-E	4.5 V	28 V	-40 °C	150 °C	High Side	On/Off	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	1	Surface Mount	Auto Restart	54 A	Non-Inverting	1:1	6-HPAK	TO-252-7 DPAK (6 Leads + Tab)	General Purpose	N-Channel	Not Required	16 mOhm
STMicroelectronics VN5E016MH-E	4.5 V	28 V	-40 °C	150 °C	High Side	On/Off	Current Limiting (Fixed) Over Temperature Over Voltage	1	Surface Mount	Auto Restart	54 A	Non-Inverting	1:1	6-HPAK	TO-252-7 DPAK (6 Leads + Tab)	General Purpose	N-Channel	Not Required	16 mOhm
STMicroelectronics VN5E016AHTR-E	4.5 V	28 V	-40 °C	150 °C	High Side	On/Off	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	1	Surface Mount	Auto Restart	54 A	Non-Inverting	1:1	6-HPAK	TO-252-7 DPAK (6 Leads + Tab)	General Purpose	N-Channel	Not Required	16 mOhm

Catalog

16 mΩ high-side driver with analog current sense

Description
