VNV35 Series

Catalog

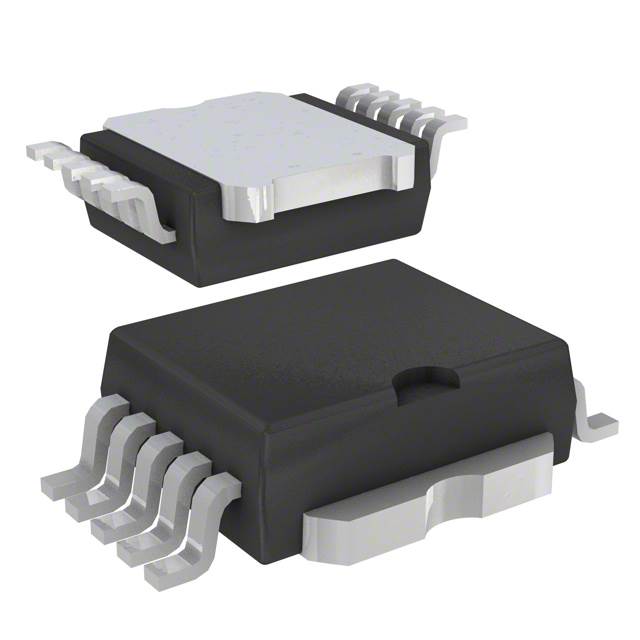

IC PWR DRIVER N-CHAN 1:1 PWRSO10

Part	Input Type	Number of Outputs	Voltage - Supply (Vcc/Vdd)	Ratio - Input:Output	Fault Protection	Supplier Device Package	Rds On (Typ)	Switch Type	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Package / Case	Voltage - Load [Max]	Mounting Type	Interface	Output Configuration
STMicroelectronics VNV35NV04-E	Non-Inverting	1	Not Required	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	10-PowerSO	10 mOhm	General Purpose	N-Channel	-40 °C	150 °C	30 A	PowerSO-10 Exposed Bottom Pad	36 V	Surface Mount	On/Off	Low Side
STMicroelectronics VNV35N07-E	Non-Inverting	1	Not Required	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	10-PowerSO	28 mOhm	General Purpose	N-Channel			25 A	PowerSO-10 Exposed Bottom Pad	55 V	Surface Mount	On/Off	Low Side
STMicroelectronics VNV35NV0413TR	Non-Inverting	1	Not Required	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	10-PowerSO	10 mOhm	General Purpose	N-Channel	-40 °C	150 °C	30 A	PowerSO-10 Exposed Bottom Pad	36 V	Surface Mount	On/Off	Low Side
STMicroelectronics VNV35N07TR-E	Non-Inverting	1	Not Required	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	10-PowerSO	28 mOhm	General Purpose	N-Channel			25 A	PowerSO-10 Exposed Bottom Pad	55 V	Surface Mount	On/Off	Low Side
STMicroelectronics VNV35NV04TR-E	Non-Inverting	1	Not Required	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	10-PowerSO	10 mOhm	General Purpose	N-Channel	-40 °C	150 °C	30 A	PowerSO-10 Exposed Bottom Pad	36 V	Surface Mount	On/Off	Low Side
