BXEM-30 Series
Manufacturer: BRIDGELUX
Beta
⌘K

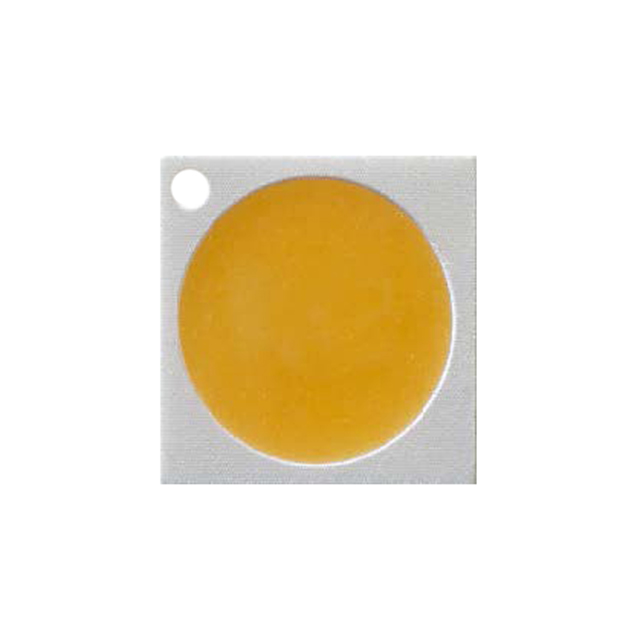

LED GEN2 WARM WHT 3000K 3030
| Part | Thermal Resistance of Package | Color | Voltage - Forward (Vf) (Typ) | Flux @ 85°C, Current - Test | CRI (Color Rendering Index) | Mounting Type | Current - Test | Viewing Angle | Package / Case | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Supplier Device Package | CCT (K) | Current - Max [Max] | Lumens/Watt @ Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 12 °C/W | Warm White | 3 V | 105 lm | 80 | Surface Mount | 300 mA | 120 ° | 3030 Metric | 1212 | 3 mm | 0.118 in | 3 mm | 0.118 " | 0.62 mm | 0.024 " | 3030 | 3000 K | 400 mA | 117 lm/W |
