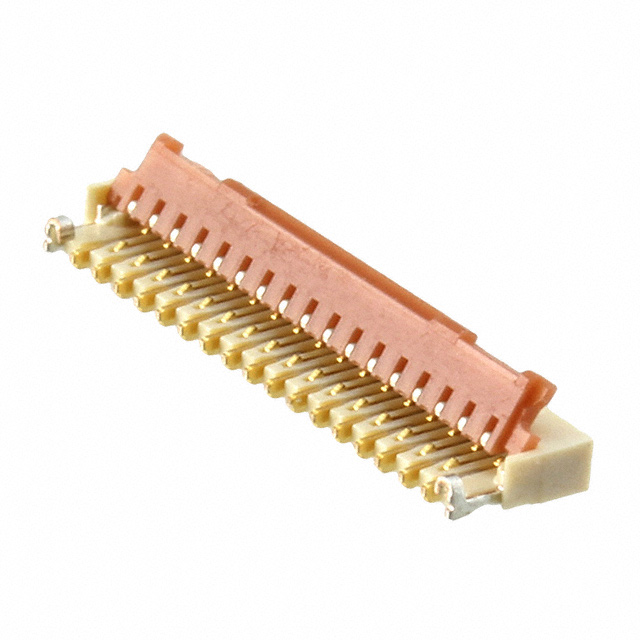

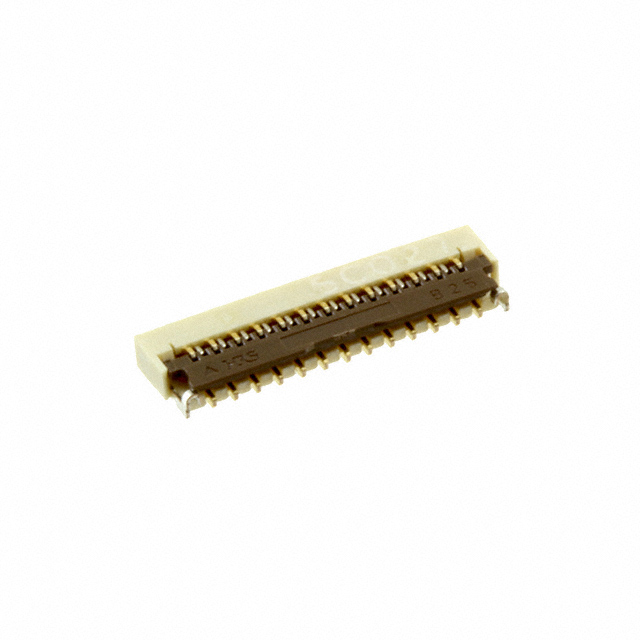

FH36 Series

Catalog

CONN FPC BOTTOM 15POS 0.3MM R/A

Part	Housing Color	Mating Cycles	Current Rating (Amps)	Actuator Color	Termination	Cable End Type	Actuator Material	FFC, FCB Thickness [custom]	Connector/Contact Type	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Flat Flex Type	Housing Material	Voltage Rating	Pitch	Pitch	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Locking Feature	Contact Finish	Contact Finish Thickness	Contact Finish Thickness

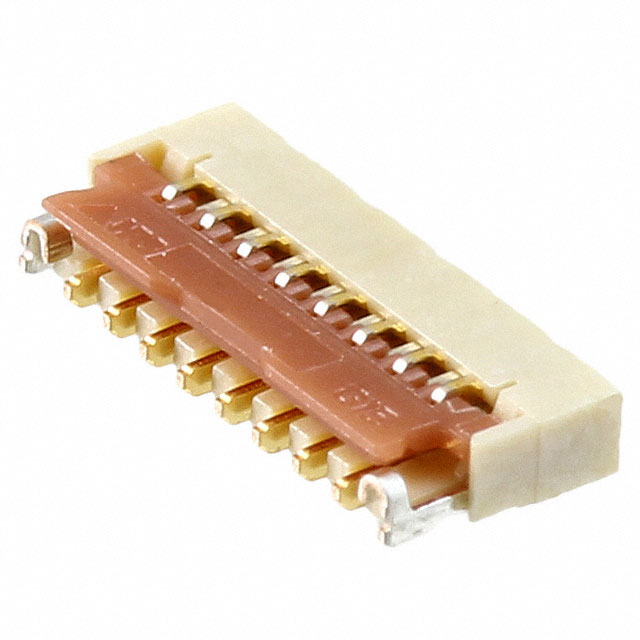

Hirose Electric Co Ltd FH36W-15S-0.3SHW(99)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 HB	FPC	Liquid Crystal Polymer (LCP) Halogen Free	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	15	Flip Lock	Gold
Hirose Electric Co Ltd FH36-19S-0.3SHW(50)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 V-0	FPC	Liquid Crystal Polymer (LCP)	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	19	Flip Lock	Gold	19.7 µin	0.5 µm

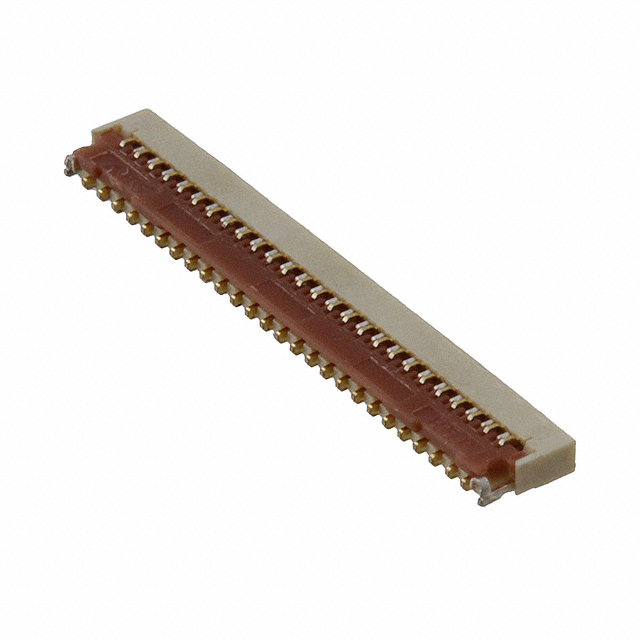

Hirose Electric Co Ltd FH36W-51S-0.3SHW(99)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 HB	FPC	Liquid Crystal Polymer (LCP) Halogen Free	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	51	Flip Lock	Gold
Hirose Electric Co Ltd FH36-25S-0.3SHW(99)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 V-0	FPC	Liquid Crystal Polymer (LCP)	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	25	Flip Lock	Gold

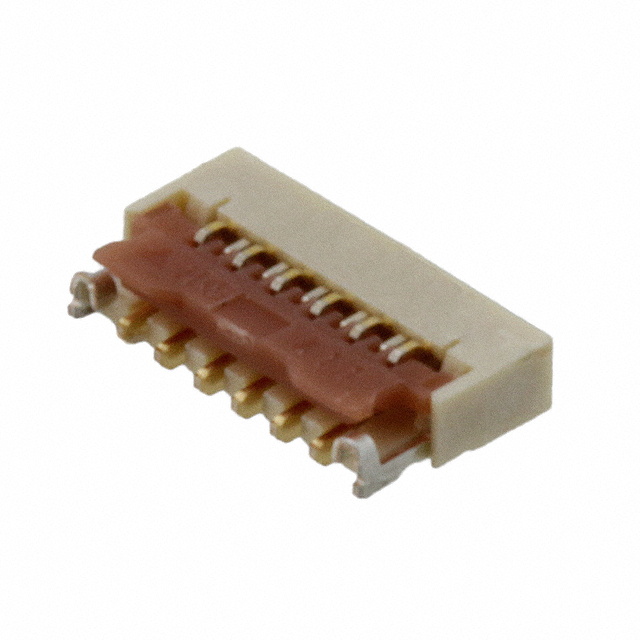

Hirose Electric Co Ltd FH36W-11S-0.3SHW(99)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 HB	FPC	Liquid Crystal Polymer (LCP) Halogen Free	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	11	Flip Lock	Gold

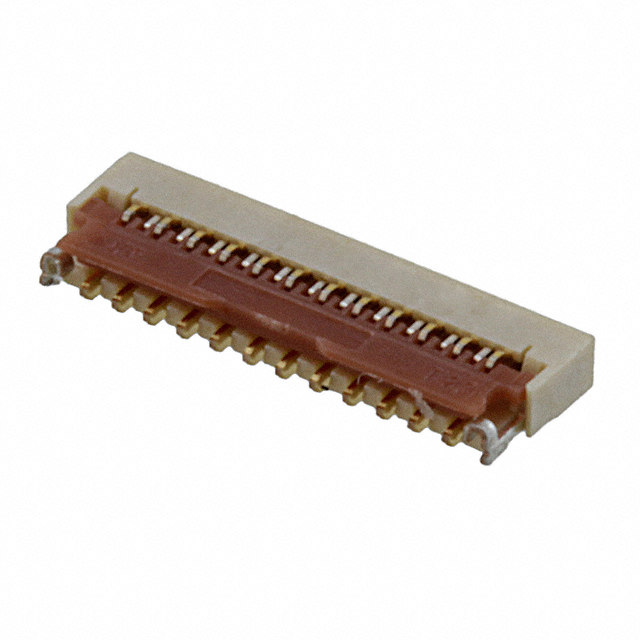

Hirose Electric Co Ltd FH36W-23S-0.3SHW(99)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 HB	FPC	Liquid Crystal Polymer (LCP) Halogen Free	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	23	Flip Lock	Gold
Hirose Electric Co Ltd FH36W-23S-0.3SHW(50)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 HB	FPC	Liquid Crystal Polymer (LCP) Halogen Free	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	23	Flip Lock	Gold	19.7 µin	0.5 µm

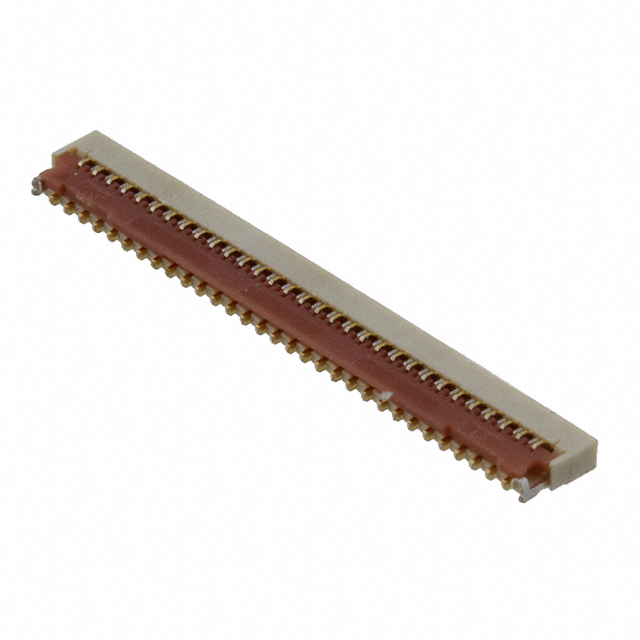

Hirose Electric Co Ltd FH36W-61S-0.3SHW(99)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 HB	FPC	Liquid Crystal Polymer (LCP) Halogen Free	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	61	Flip Lock	Gold

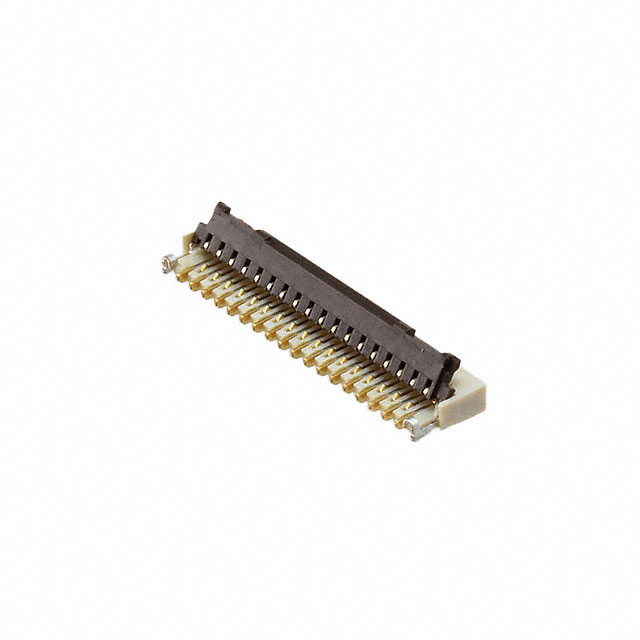

Hirose Electric Co Ltd FH36-35S-0.3SHW(99)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 V-0	FPC	Liquid Crystal Polymer (LCP)	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	35	Flip Lock	Gold
Hirose Electric Co Ltd FH36W-51S-0.3SHW(50)	Beige	10	0.2 A	Brown	Solder	Tabbed	Polyamide (PA) Nylon	0.2 mm	Contacts Bottom	1 mm	0.039 "	UL94 HB	FPC	Liquid Crystal Polymer (LCP) Halogen Free	30 VDC	0.012 in	0.3 mm	Right Angle Surface Mount	-55 C	85 °C	Phosphor Bronze	51	Flip Lock	Gold	19.7 µin	0.5 µm
