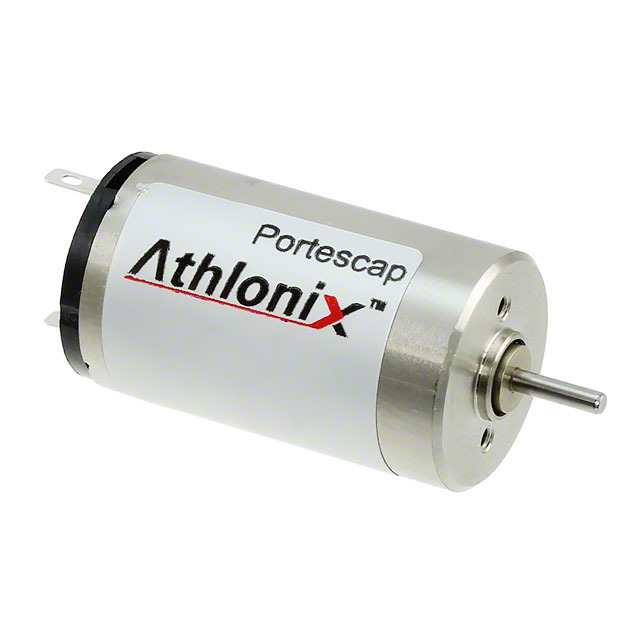

16N78214 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 10000 RPM 9V
| Part | Weight | Weight | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Power - Rated | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Function | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Type | RPM | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Motor Type | Voltage - Rated | Termination Style | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 24.04 g | 0.053 lb | 85 °C | -30 ░C | 0.354 in | 9 mm | 5.2 W | 0.94 oz-in | 6.6 mNm | Standard | 1.5 mm | 0.059 in | DC Motor | 10000 RPM | 7.5 mm | 0.295 " | Brushed | 9 V | Solder Tab | 0.629 in | Round | 16 mm |
