C0561 Series

Catalog

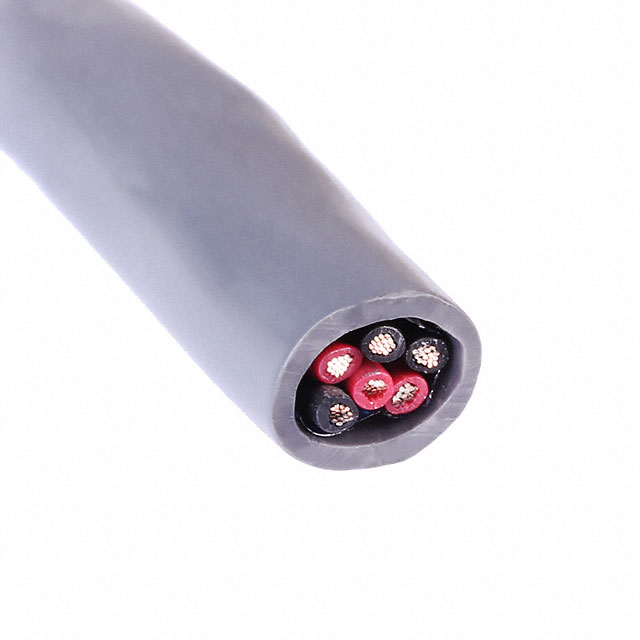

MULTI-PAIR 6COND 18AWG GRAY

Part	Usage	Ratings	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Wire Gauge	Jacket Color	Number of Conductors	Jacket (Insulation) Material	Conductor Material	Shield Type	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length [x]	Length [x]	Shield Material	Shield Coverage
Prysmian Group C0561A.38.10	Communication Control	ASTM B-33	Poly-Vinyl Chloride (PVC)	0.042 in	1.067 mm	Multi-Pair	16	30 AWG	-20 ░C	105 ░C	Drain Wire	18 AWG	Gray	6	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	Foil	152.4 m	500 ft	0.403 in	10.24 mm	300 VDC
Prysmian Group C0561A.41.10	Communication Control	ASTM B-33	Poly-Vinyl Chloride (PVC)	0.042 in	1.067 mm	Multi-Pair	16	30 AWG	-20 ░C	105 ░C	Drain Wire	18 AWG	Gray	6	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	Foil	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	0.403 in	10.24 mm	300 VDC	100 ft	30.5 m
Prysmian Group C0561A.38.10	Communication Control	ASTM B-33	Poly-Vinyl Chloride (PVC)	0.042 in	1.067 mm	Multi-Pair	16	30 AWG	-20 ░C	105 ░C	Drain Wire	18 AWG	Gray	6	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	Foil	152.4 m	500 ft	0.403 in	10.24 mm	300 VDC			Copper Flexfoil® Tinned	100 %
Prysmian Group C0561A.41.10	Communication Control	ASTM B-33	Poly-Vinyl Chloride (PVC)	0.042 in	1.067 mm	Multi-Pair	16	30 AWG	-20 ░C	105 ░C	Drain Wire	18 AWG	Gray	6	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	Foil	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	0.403 in	10.24 mm	300 VDC	100 ft	30.5 m	Copper Flexfoil® Tinned	100 %
