TRS 2 Series

Catalog

DC DC CONVERTER +/-12V 2W

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power (Watts)	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Applications	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 2	Voltage - Output 1	Package / Case	Efficiency	Current - Output (Max) [Max]
Traco Power TRS 2-4822	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	75 V	83 mA	83 mA	ITE (Commercial)	36 V	2	-12 V	12 V	7-SMD Module
Traco Power TRS 2-2413	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	36 V			ITE (Commercial)	18 V	1		15 V	7-SMD Module 6 Leads	84 %	134 mA

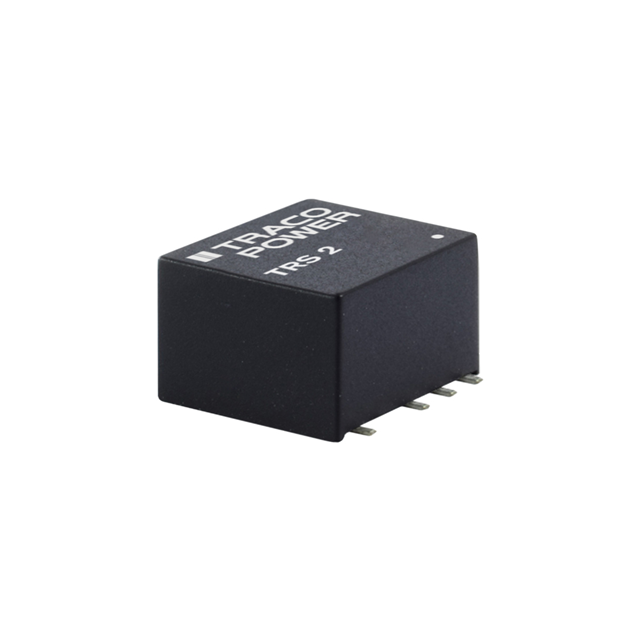

Traco Power TRS 2-4813	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	75 V			ITE (Commercial)	36 V	1		15 V	7-SMD Module 6 Leads	83 %	134 mA
Traco Power TRS 2-1213	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	18 V			ITE (Commercial)	9 V	1		15 V	7-SMD Module 6 Leads	83 %	134 mA
Traco Power TRS 2-0915	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	13.2 V			ITE (Commercial)	4.5 V	1		24 V	7-SMD Module 6 Leads		83 mA
Traco Power TRS 2-4815	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	75 V			ITE (Commercial)	36 V	1		24 V	7-SMD Module 6 Leads		83 mA
Traco Power TRS 2-1219	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	18 V			ITE (Commercial)	9 V	1		9 V	7-SMD Module 6 Leads	80 %	222 mA
Traco Power TRS 2-0912	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	13.2 V			ITE (Commercial)	4.5 V	1		12 V	7-SMD Module 6 Leads	83 %	167 mA
Traco Power TRS 2-4823	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	75 V	67 mA	67 mA	ITE (Commercial)	36 V	2	-15 V	15 V	7-SMD Module	80 %
Traco Power TRS 2-2419	SCP	90 °C	-40 °C	Surface Mount	2 W	1.6 kV	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	Isolated Module	36 V			ITE (Commercial)	18 V	1		9 V	7-SMD Module 6 Leads	80 %	222 mA
