TEL 12 Series

Catalog

12 WATT DC/DC CONVERTER, INDUSTR

Part	Current - Output (Max)	Voltage - Isolation	Applications	Approval Agency	Voltage - Output 2	Package / Case	Number of Outputs	Type	Features	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max) [Max]
Traco Power TEL 12-2423	400 mA	1800 V	ITE (Commercial)	CB cURus	-15 V	16-DIP Module 5 Leads	2	Isolated Module	Baseplate	87 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	18 V	36 V	15 V
Traco Power TEL 12-2413		1800 V	ITE (Commercial)	CB cURus		16-DIP Module 5 Leads	1	Isolated Module	Baseplate	88 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	18 V	36 V	15 V	0.8 A
Traco Power TEL 12-4823WI	400 mA	1800 V	ITE (Commercial)	CB cURus	-15 V	16-DIP Module 5 Leads	2	Isolated Module	Baseplate	87 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	18 V	75 V	15 V
Traco Power TEL 12-2422WI	500 mA	1800 V	ITE (Commercial)	CB cURus	-12 V	16-DIP Module 5 Leads	2	Isolated Module	Baseplate	87 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	9 V	36 V	12 V

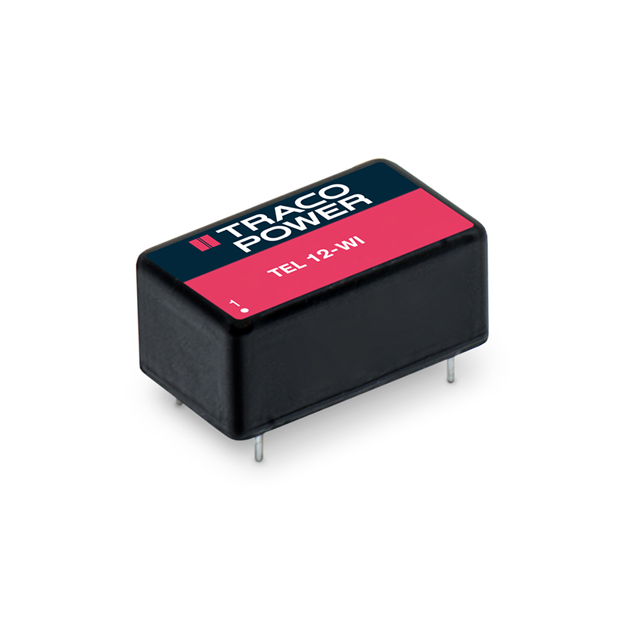

Traco Power TEL 12-4815WI		1800 V	ITE (Commercial)	CB cURus		16-DIP Module 5 Leads	1	Isolated Module	Baseplate	88 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	18 V	75 V	24 V	500 mA
Traco Power TEL 12-4813WI		1800 V	ITE (Commercial)	CB cURus		16-DIP Module 5 Leads	1	Isolated Module	Baseplate	88 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	18 V	75 V	15 V	0.8 A
Traco Power TEL 12-4815		1800 V	ITE (Commercial)	CB cURus		16-DIP Module 5 Leads	1	Isolated Module	Baseplate	88 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	36 V	75 V	24 V	500 mA
Traco Power TEL 12-2412WI		1800 V	ITE (Commercial)	CB cURus		16-DIP Module 5 Leads	1	Isolated Module	Baseplate	87 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	9 V	36 V	12 V	1 A
Traco Power TEL 12-1215		1800 V	ITE (Commercial)	CB cURus		16-DIP Module 5 Leads	1	Isolated Module	Baseplate	88 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	9 V	18 V	24 V	500 mA
Traco Power TEL 12-4822	500 mA	1800 V	ITE (Commercial)	CB cURus	-12 V	16-DIP Module 5 Leads	2	Isolated Module	Baseplate	87 %	85 °C	-40 C	Through Hole	12 W	10.2 mm	0.94 in	0.4 "	23.8 mm	13.7 mm	0.54 in	36 V	75 V	12 V
