MRF24J40M Series

Catalog

RF TXRX MODULE 802.15.4U.FL SMD

Part	Current - Receiving	RF Family/Standard	Current - Transmitting	Antenna Type	Serial Interfaces	Mounting Type	Protocol	Package / Case	Frequency	Operating Temperature (Min)	Operating Temperature (Max)	Sensitivity	Power - Output	Data Rate	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)

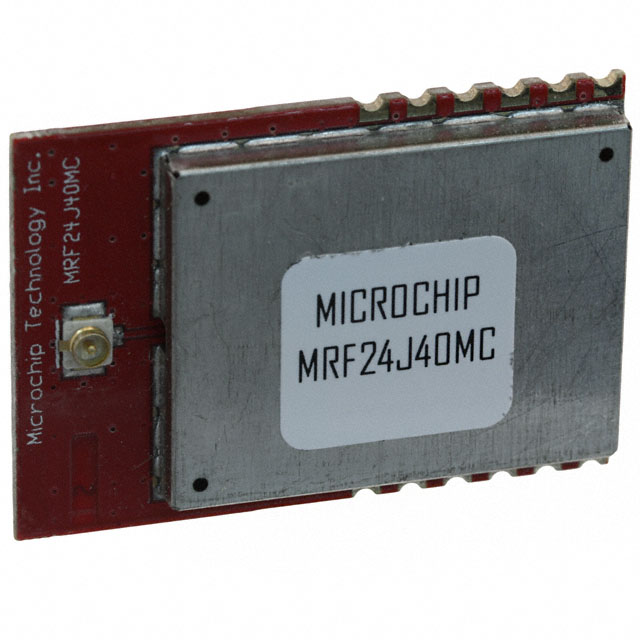

Microchip Technology MRF24J40MC-I/RM	25 mA	802.15.4	120 mA	Antenna Not Included U.FL	SPI	Surface Mount	Zigbee®	Module	2.4 GHz	-40 °C	85 °C	-108 dBm	19 dBm	250 Kbps	2.4 V	3.6 V
Microchip Technology MRF24J40MBT-I/RM	25 mA	802.15.4	130 mA	Integrated Trace	SPI	Surface Mount	Zigbee®	Module	2.4 GHz	-40 °C	85 °C	-102 dBm	20 dBm	250 Kbps	2.4 V	3.6 V

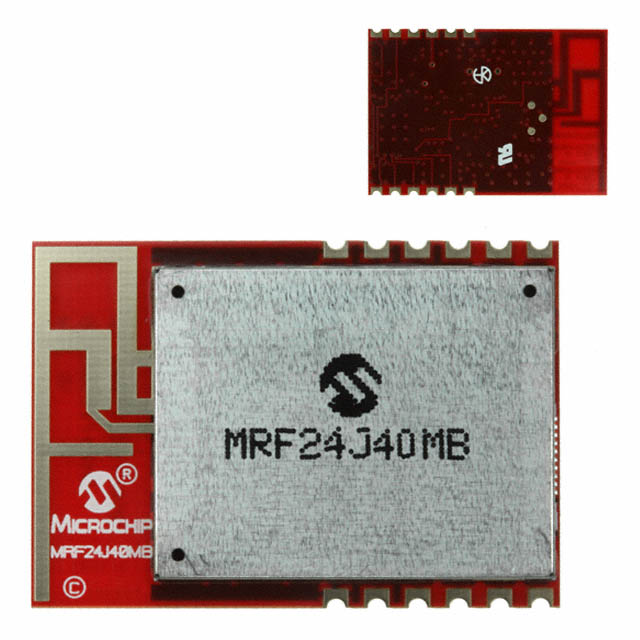

Microchip Technology MRF24J40MB-I/RM	25 mA	802.15.4	130 mA	Integrated Trace	SPI	Surface Mount	Zigbee®	Module	2.4 GHz	-40 °C	85 °C	-102 dBm	20 dBm	250 Kbps	2.4 V	3.6 V
Microchip Technology MRF24J40MCT-I/RM	25 mA	802.15.4	120 mA	Antenna Not Included U.FL	SPI	Surface Mount	Zigbee®	Module	2.4 GHz	-40 °C	85 °C	-108 dBm	19 dBm	250 Kbps	2.7 V	3.6 V
