NCP10672 Series

High-Voltage Switcher for low Power offline SMPS

Catalog

High-Voltage Switcher for low Power offline SMPS

Part	Board Type	Outputs and Type	Outputs and Type	Main Purpose	Voltage - Output	Utilized IC / Part	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Supplied Contents	Fault Protection	Voltage - Start Up	Power (Watts)	Supplier Device Package	Mounting Type	Duty Cycle	Output Isolation	Control Features	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Frequency - Switching	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature	Voltage - Breakdown	Topology

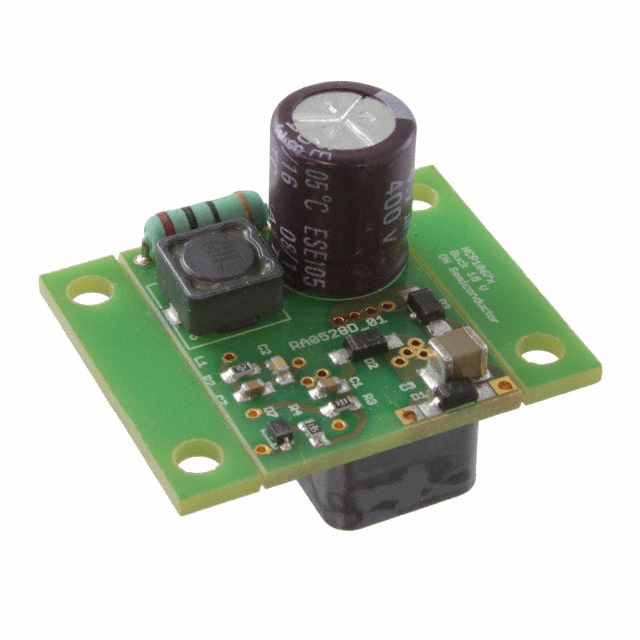

ON Semiconductor NCP10672B15GEVB	Fully Populated	Non-Isolated	1	AC/DC Primary Side	15 VDC	NCP10672	Flyback	90 VAC	265 VAC	270 mA	Board(s)
ON Semiconductor NCP10672BD100R2G												Current Limiting Over Load Over Voltage Short Circuit	9 V	15.5 W	8-SOIC	Surface Mount	66 %	Either	Soft Start	7	8-SOIC	3.9 mm	0.154 in	100 kHz	6.7 V	20 V	150 °C	700 V	Buck Buck-Boost Flyback
ON Semiconductor NCP10672BD060R2G												Current Limiting Over Load Over Voltage Short Circuit	9 V		8-SOIC	Surface Mount	66 %	Either	Soft Start	7	8-SOIC	3.9 mm	0.154 in	60 kHz	6.7 V	20 V	150 °C	700 V	Buck Buck-Boost Flyback

Catalog

High-Voltage Switcher for low Power offline SMPS

Key Features

• Built−in 700 V MOSFET with RDS(on) of 12 Ω

• Large Creepage Distance Between High−voltage Pins

• 780 mA Peak Current

• Direct Feedback connection for non-isolated converter

• Auto-Recovery Output Short Circuit Protection with Timer-Based Detection

• Frequency Jittering

• Current−Mode Fixed Frequency Operation – 60 or 100 kHz

• Skip-Cycle at low peak currents

• Dynamic Self−Supply

Description

The NCP1067X products integrate a fixed frequency current mode controller with a700 V MOSFET. Available in a SOIC-7 package, the NCP1067X offer a high level ofintegration, including soft−start, frequency−jittering, short−circuit protection, skip−cycle, ramp compensation, and a Dynamic Self−Supply (eliminating the need for an auxiliary winding).During nominal load operation, the NCP1067X switches at one of the availablefrequencies (60 or 100 kHz). When the output power demand diminishes, the IC automatically enters into a skip mode to reduce the standby consumption down.Protection features include: a timer to detect an overload or a short−circuit event,Overvoltage Protection with auto−recovery.For improved standby performance, the connection of an auxiliary winding orsupplying the IC from the output, stops the DSS operation and helps to reduce input power consumption below 15 mW at high line.NCP1067x can be seamlessly used both in non-isolated and in isolated topologies.
