SQJ136 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

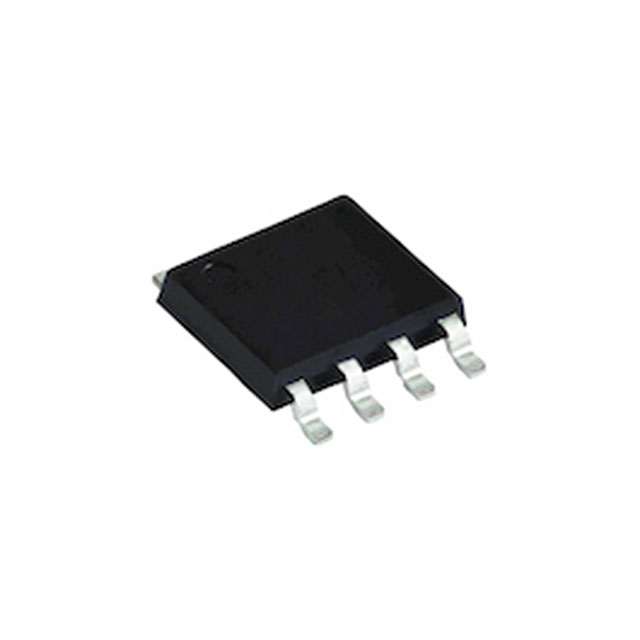

MOSFET N-CH 40V 350A PPAK SO-8
| Part | Package / Case | FET Type | Power Dissipation (Max) | Technology | Gate Charge (Qg) (Max) @ Vgs | Rds On (Max) @ Id, Vgs | Qualification | Grade | Mounting Type | Current - Continuous Drain (Id) @ 25°C | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Vgs (Max) | Vgs(th) (Max) @ Id [Max] | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | PowerPAK® SO-8 | N-Channel | 500 W | MOSFET (Metal Oxide) | 150 nC | 1.12 mOhm | AEC-Q101 | Automotive | Surface Mount | 350 A | PowerPAK® SO-8 | -55 °C | 175 ░C | 20 V | 2.2 V | 40 V |
