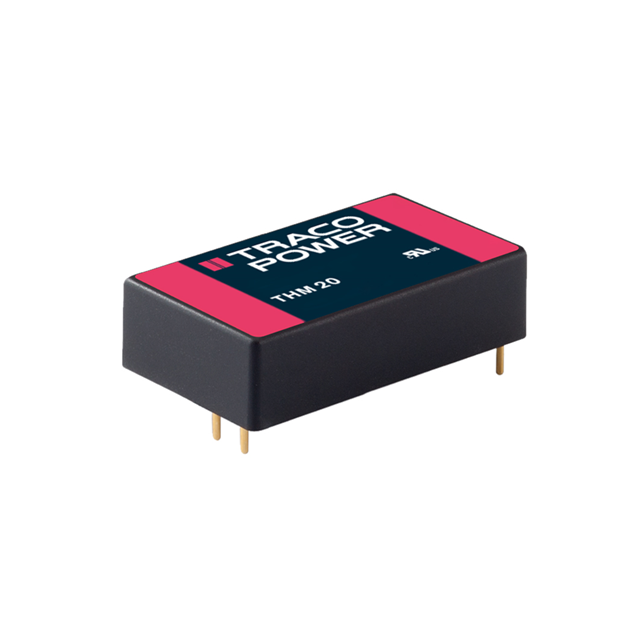

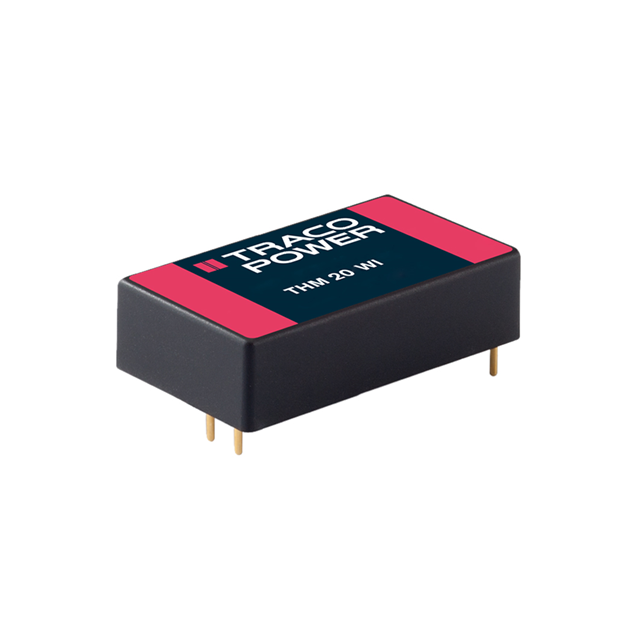

THM 20 Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W 9-18VIN 24VOUT 833MA ISO MEDICAL
| Part | Type | Power (Watts) | Applications | Number of Outputs | Features | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Output 1 | Package / Case | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Current - Output (Max) [Max] | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Isolated Module | 20 W | Medical | 1 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 89 % | 24 V | 5-DIP Module | 18 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 833 mA | 5000 V | 9 V | |||
 Traco Power | Isolated Module | 20 W | Medical | 1 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 90 % | 12 V | 5-DIP Module | 36 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 1.67 A | 5000 V | 18 V | |||
Traco Power | Isolated Module | 20 W | Medical | 2 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 88 % | 15 V | 5-DIP Module | 75 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 5000 V | 36 V | -15 V | 667 mA | 667 mA | |
 Traco Power | Isolated Module | 20 W | Medical | 1 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 90 % | 15 V | 5-DIP Module | 36 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 1.33 A | 5000 V | 18 V | |||
Traco Power | Isolated Module | 20 W | Medical | 2 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 86 % | 5 V | 5-DIP Module | 18 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 2 A | 5000 V | 9 V | -5 V | ||
Traco Power | Isolated Module | 20 W | Medical | 2 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 86 % | 5 V | 5-DIP Module | 75 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 2 A | 5000 V | 36 V | -5 V | ||
 Traco Power | Isolated Module | 20 W | Medical | 1 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 88 % | 15 V | 5-DIP Module | 75 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 1.33 A | 5000 V | 18 V | |||
Traco Power | Isolated Module | 20 W | Medical | 1 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 88.5 % | 24 V | 5-DIP Module | 75 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 833 mA | 5000 V | 36 V | |||
Traco Power | Isolated Module | 20 W | Medical | 1 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 88 % | 12 V | 5-DIP Module | 75 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 1.67 A | 5000 V | 18 V | |||
Traco Power | Isolated Module | 20 W | Medical | 2 | OCP OTP OVP SCP | 80 ¯C | -40 °C | 86 % | 5 V | 5-DIP Module | 36 V | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Through Hole | 2 A | 5000 V | 9 V | -5 V |
