MCMNP2065 Series

Catalog

MOSFET N/P-CH 20V 6A/4A 6DFN

Part	Configuration	Supplier Device Package	Mounting Type	Power - Max [Max]	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Package / Case	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Technology	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs [Max]	Rds On (Max) @ Id, Vgs [Min]	Power - Max

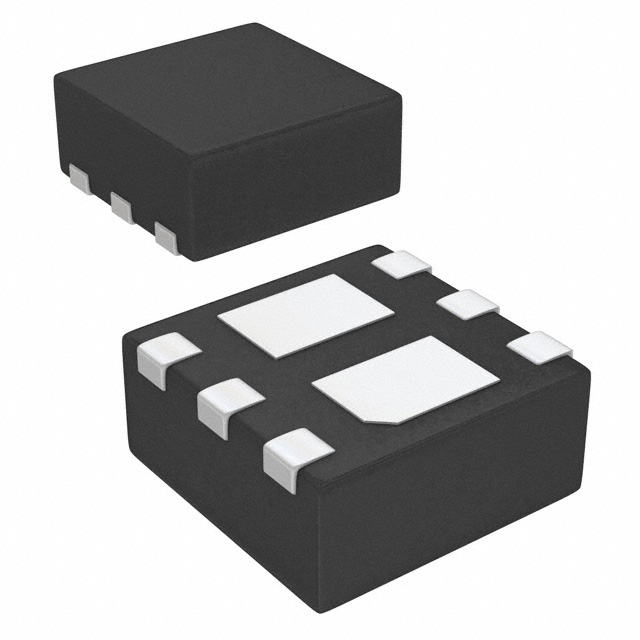

Micro Commercial Components MCMNP2065A-TP	N and P-Channel	DFN2020-6L	Surface Mount	2 W	25 mOhm 51 mOhm	4 A 6 A	6-VDFN Exposed Pad	5.41 nC 7.65 nC	418 pF 880 pF	1 V	-55 °C	150 °C	20 V	MOSFET (Metal Oxide)
Micro Commercial Components MCMNP2065-TP	N and P-Channel	DFN2020-6L	Surface Mount			6 A	6-VDFN Exposed Pad	6.05 nC	418 pF 1010 pF	1 V	-55 °C	150 °C	20 V	MOSFET (Metal Oxide)	10.98 nC	42 mOhm	25 mOhm	1.8 W 2.2 W
