JR21PK Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

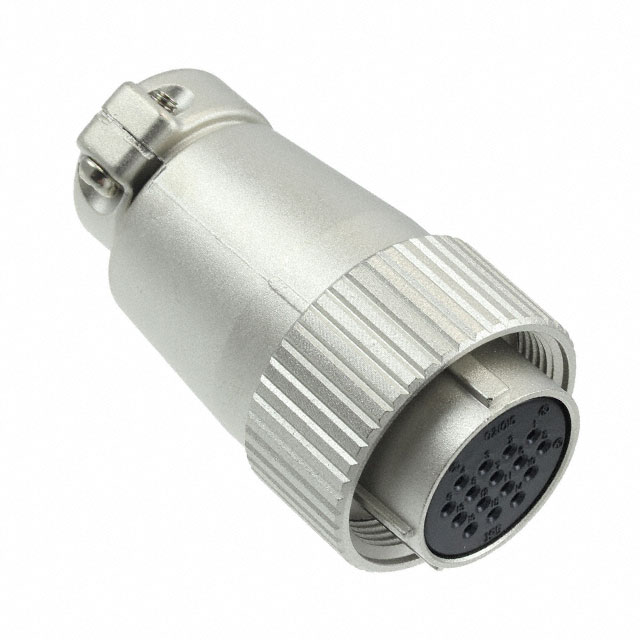

CONN PLUG FMALE 16P SOLDER CUP
| Part | Material Flammability Rating | Contact Material | Cable Opening | Cable Opening | Shielding | Number of Positions | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Features | Insert Material | Color | Contact Finish - Mating | Orientation | Shell Size - Insert [custom] | Connector Type | Shell Material | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Backshell Material, Plating | Voltage Rating | Mounting Type | Housing Color | Contact Type | Type | Contact Shape | Contact Size | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | UL94 V-0 | Copper Alloy | 0.591 in | 15 mm | Unshielded | 16 | Threaded | 85 °C | -25 °C | 5 A | Backshell Cable Clamp Coupling Nut | Phenol Formaldehyde (PF) | Silver | Silver | Keyed | 21 | Plug Female Sockets | Aluminum Alloy | Metal | 78.7 µin | 2 µm | Nickel | Aluminum Alloy Nickel | 250 VAC 350 VDC | Free Hanging (In-Line) | ||||||
Hirose Electric Co Ltd | UL94 V-0 | Unshielded | 16 | Threaded | 85 °C | -25 °C | Backshell Cable Clamp Coupling Nut | Polycarbonate (PC) | Keyed | 21 | Plug Housing | Aluminum Alloy | Nickel | Free Hanging (In-Line) | Silver | Crimp | For Female Sockets | Circular | 1 mm | Contacts Not Included | |||||||||||

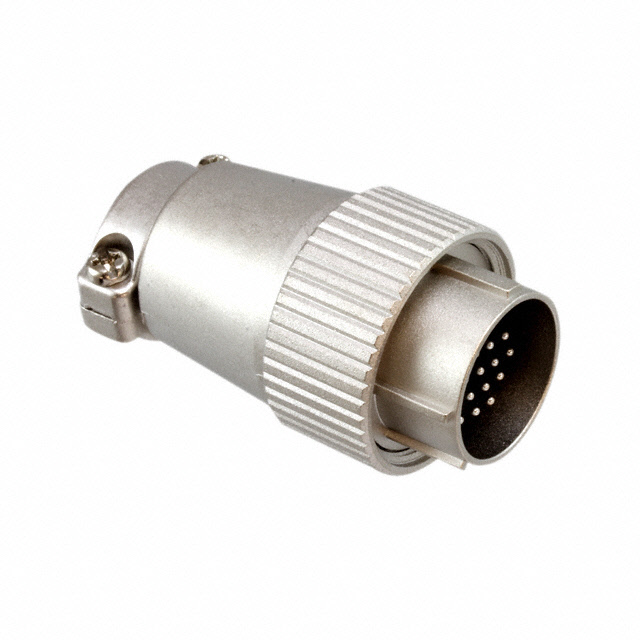

 Hirose Electric Co Ltd | UL94 V-0 | Copper Alloy | 0.591 in | 15 mm | Unshielded | 16 | Threaded | 85 °C | -25 °C | 5 A | Backshell Cable Clamp Coupling Nut | Phenol Formaldehyde (PF) | Silver | Silver | Keyed | 21 | Plug Male Pins | Aluminum Alloy | Metal | 118.1 µin | 3 µm | Nickel | Aluminum Alloy Nickel | 250 VAC 350 VDC | Free Hanging (In-Line) |
