215922 Series

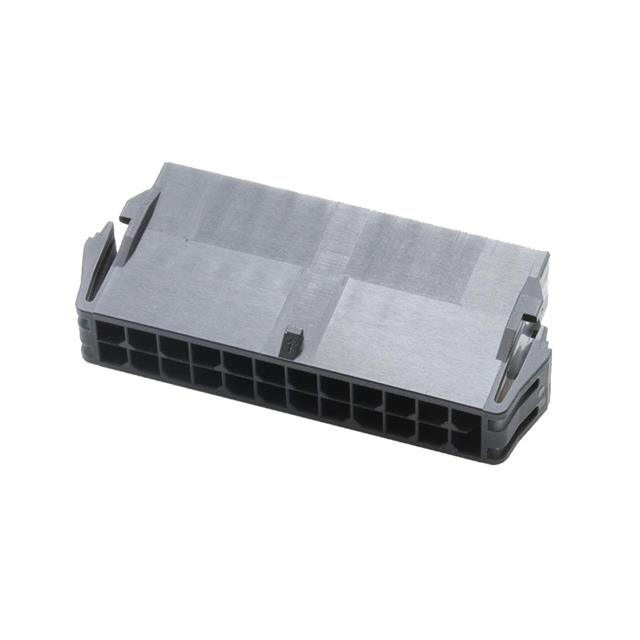

Micro-Fit+ Plug Housing, Dual Row, 22 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
Manufacturer: Molex
Catalog
Micro-Fit+ Plug Housing, Dual Row, 22 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
Beta
⌘K
Micro-Fit+ Plug Housing, Dual Row, 22 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
Micro-Fit+ Plug Housing, Dual Row, 22 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
Micro-Fit+ Plug Housing, Dual Row, 22 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Row Spacing [x] | Row Spacing [x] | Connector Type | Color | Mounting Type | Number of Positions | Number of Rows | Contact Termination | Fastening Type | Insulation Material | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

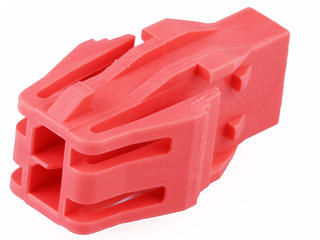

 Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.118 in | 3 mm | Plug | Red | Panel Mount Snap-In | 2 | 2 | Crimp | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Male Pin | |
 Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.118 in | 3 mm | Plug | Yellow | Panel Mount Snap-In | 6 | 2 | Crimp | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Male Pin | |
 Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | Plug | Black | Panel Mount Snap-In | 20 | 2 | Crimp | Latch Holder | Polyamide (PA66) Nylon 6/6 | Male Pin | Glow Wire Compliant | ||
Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | Plug | Black | Panel Mount Snap-In | 12 | 2 | Crimp | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Female Socket | |||
Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | Plug | Black | Panel Mount Snap-In | 14 | 2 | Crimp | Latch Holder | Polyamide (PA66) Nylon 6/6 | Male Pin | Glow Wire Compliant | ||
 Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.118 in | 3 mm | Plug | Red | Free Hanging (In-Line) | 4 | 2 | Crimp | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Male Pin | |
 Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | Plug | Black | Free Hanging (In-Line) | 4 | 2 | Crimp | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Male Pin | |||
 Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | Plug | Black | Panel Mount Snap-In | 4 | 2 | Crimp | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Male Pin | Glow Wire Compliant | ||

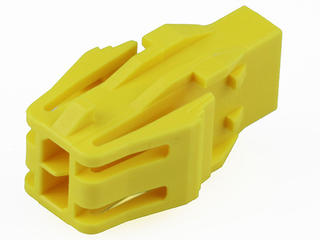

Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.118 in | 3 mm | Plug | Yellow | Panel Mount Snap-In | 4 | 2 | Crimp | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Male Pin | |

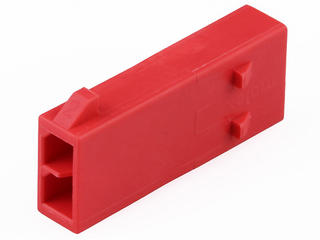

Molex | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.118 in | 3 mm | Plug | Red | Free Hanging (In-Line) | 6 | 2 | Crimp | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Male Pin |
