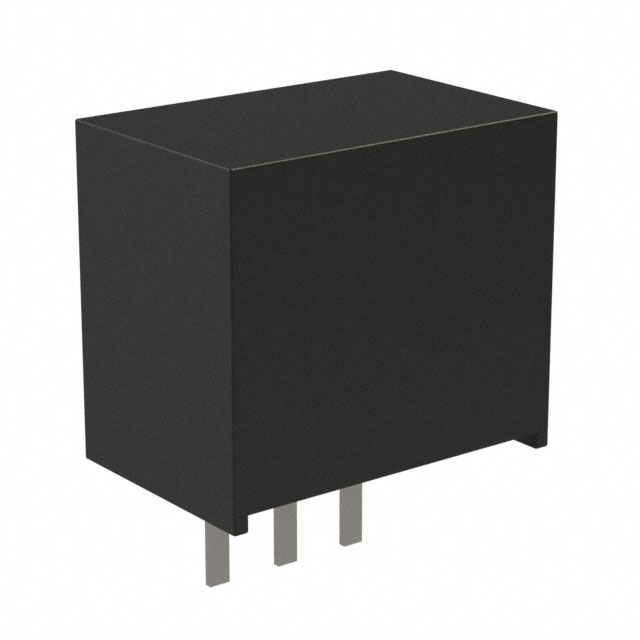

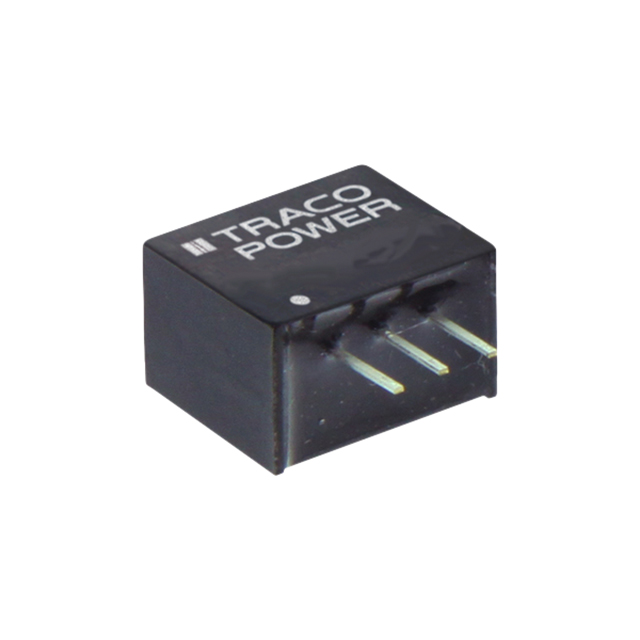

TSRN 1 Series

Catalog

DC DC CONVERTER 15V 15W

Part	Power (Watts)	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Type	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Efficiency
Traco Power TSRN 1-24150	15 W	1 A	1	15 V	36 V	16.5 V	ITE (Commercial)	Linear Regulator Replacement	3-SIP Module	Through Hole	-40 °C	85 °C	OTP SCP	7.5 mm	0.3 "	0.4 "	10.2 mm	0.46 in	11.7 mm	95 %

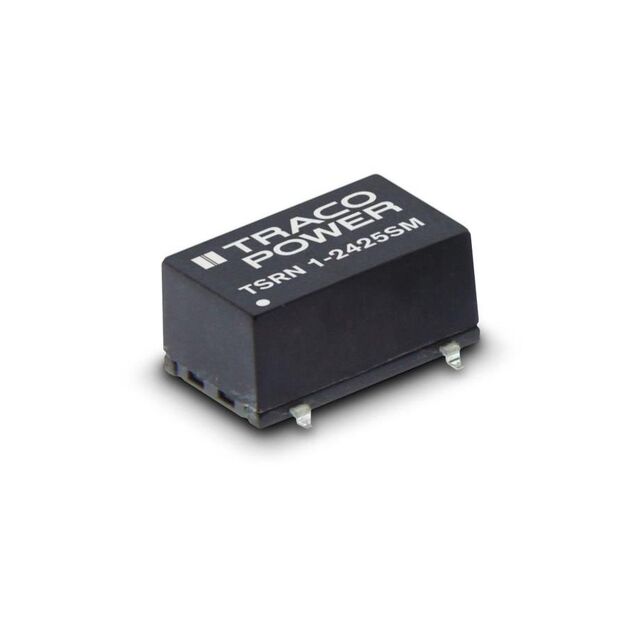

Traco Power TSRN 1-0525SM		1 A	1	2.5 V	5.5 V	3 V	ITE (Commercial)	Linear Regulator Replacement	10-SMD Module 6 Leads	Surface Mount	-40 °C	85 °C	OTP Remote On/Off SCP	9.3 mm	0.37 in	0.29 in	7.4 mm	0.6 "	15.2 mm	95.5 %
Traco Power TSRN 1-24120A	12 W	1 A	1	12 V	36 V	13.5 V	ITE (Commercial)	Linear Regulator Replacement	3-SIP Module	Through Hole	-40 °C	85 °C	OTP SCP	10.2 mm	0.4 "	0.3 in	7.5 mm	0.46 in	11.7 mm	95 %
Traco Power TSRN 1-24120SM	12 W	1 A	1	12 V	42 V	13.5 V	ITE (Commercial)	Linear Regulator Replacement	10-SMD Module 6 Leads	Surface Mount	-40 °C	85 °C	OTP Remote On/Off SCP	9.3 mm	0.37 in	0.29 in	7.4 mm	0.6 "	15.2 mm	95 %
Traco Power TSRN 1-2490	9 W	1 A	1	9 V	36 V	10.5 V	ITE (Commercial)	Linear Regulator Replacement	3-SIP Module	Through Hole	-40 °C	85 °C	OTP SCP	7.5 mm	0.3 "	0.4 "	10.2 mm	0.46 in	11.7 mm	94 %
Traco Power TSRN 1-2415	1.5 W	1 A	1	1.5 V	36 V	4.6 V	ITE (Commercial)	Linear Regulator Replacement	3-SIP Module	Through Hole	-40 °C	85 °C	OTP SCP	7.5 mm	0.3 "	0.4 "	10.2 mm	0.46 in	11.7 mm	77 %
Traco Power TSRN 1-24120	12 W	1 A	1	12 V	36 V	13.5 V	ITE (Commercial)	Linear Regulator Replacement	3-SIP Module	Through Hole	-40 °C	85 °C	OTP SCP	7.5 mm	0.3 "	0.4 "	10.2 mm	0.46 in	11.7 mm	95 %
