DF14A Series

Catalog

CONN HEADER SMD R/A 9POS 1.25MM

Part	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Termination	Material Flammability Rating	Insulation Height	Insulation Height	Style	Shrouding	Contact Shape	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Insulation Color	Number of Positions	Connector Type	Fastening Type	Contact Material	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions Loaded	Mounting Type	Voltage Rating	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
Hirose Electric Co Ltd DF14A-9P-1.25H(52)	0.086 in 0.087 in	2.2 mm	0.1 Ám	3.94 Áin	1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Nylon Polyamide (PA)	85 °C	-35 °C	Solder Retention	Beige	9	Header	Push-Pull	Brass	Gold	Gold	3.94 µin	0.1 µm	All	Right Angle Surface Mount	150 VAC	Male Pin	0.049 in	1.25 mm

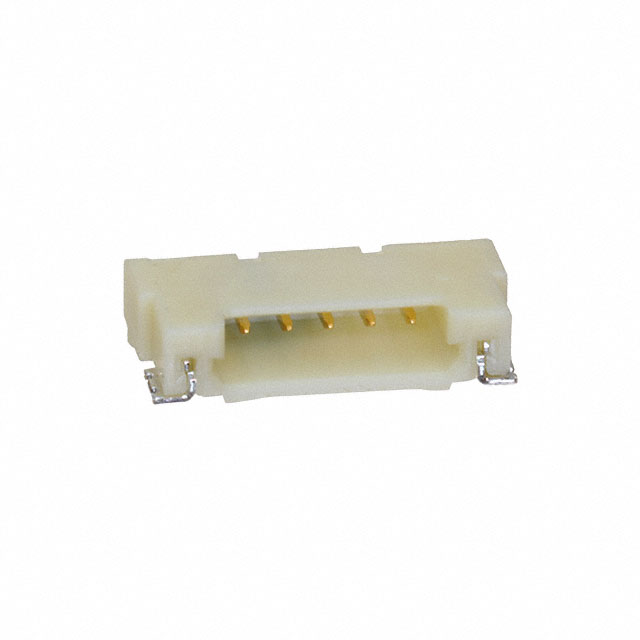

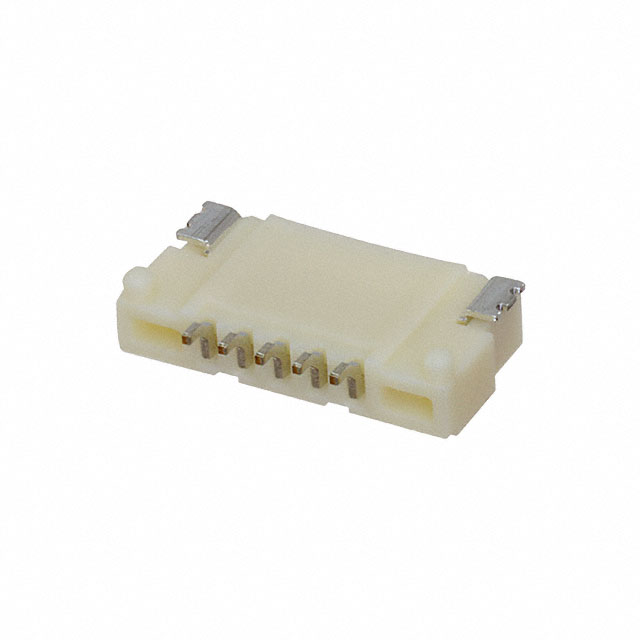

Hirose Electric Co Ltd DF14A-5P-1.25H(22)	0.087 in	2.2 mm 2.21 mm	1 çm	39.4 çin	1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Nylon Polyamide (PA)	85 °C	-35 °C	Solder Retention	Beige	5	Header	Push-Pull	Brass		Tin			All	Right Angle Surface Mount	150 VAC	Male Pin	0.049 in	1.25 mm	39.4 Áin	1 Ám	39.4 µin	1 µm

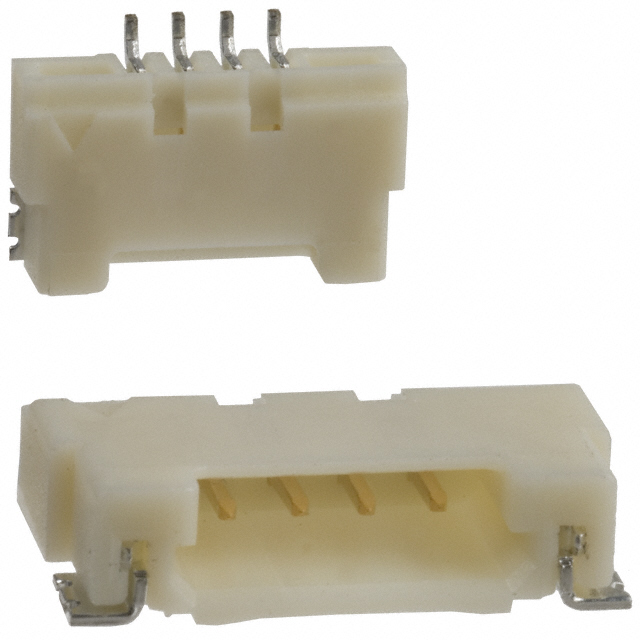

Hirose Electric Co Ltd DF14A-4P-1.25H(22)	0.087 in	2.2 mm 2.21 mm	1 çm	39.4 çin	1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Nylon Polyamide (PA)	85 °C	-35 °C	Solder Retention	Beige	4	Header	Push-Pull	Brass		Tin			All	Right Angle Surface Mount	150 VAC	Male Pin	0.049 in	1.25 mm			39.4 µin	1 µm

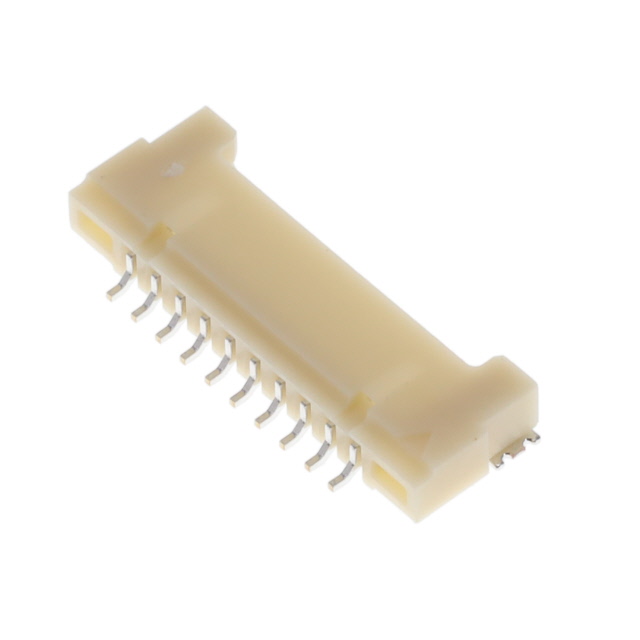

Hirose Electric Co Ltd DF14A-10P-1.25H(35)	0.086 in 0.087 in	2.2 mm	1 çm	39.4 çin	1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Nylon Polyamide (PA)	85 °C	-35 °C	Solder Retention	Beige	10	Header	Push-Pull	Brass		Tin			All	Right Angle Surface Mount	150 VAC	Male Pin	0.049 in	1.25 mm			39.4 µin	1 µm
Hirose Electric Co Ltd DF14A-5P-1.25H(52)	0.086 in 0.087 in	2.2 mm	0.1 Ám	3.94 Áin	1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Nylon Polyamide (PA)	85 °C	-35 °C	Solder Retention	Beige	5	Header	Push-Pull	Brass	Gold	Gold	3.94 µin	0.1 µm	All	Right Angle Surface Mount	150 VAC	Male Pin	0.049 in	1.25 mm
Hirose Electric Co Ltd DF14A-20P-1.25H(97)			1 çm	39.4 çin	1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Polyester	85 °C	-30 ░C	Board Guide Solder Retention	Beige	20	Header	Push-Pull	Phosphor Bronze	Gold	Tin	3.94 µin	0.1 µm	All	Right Angle Surface Mount	150 VAC	Male Pin	0.049 in	1.25 mm

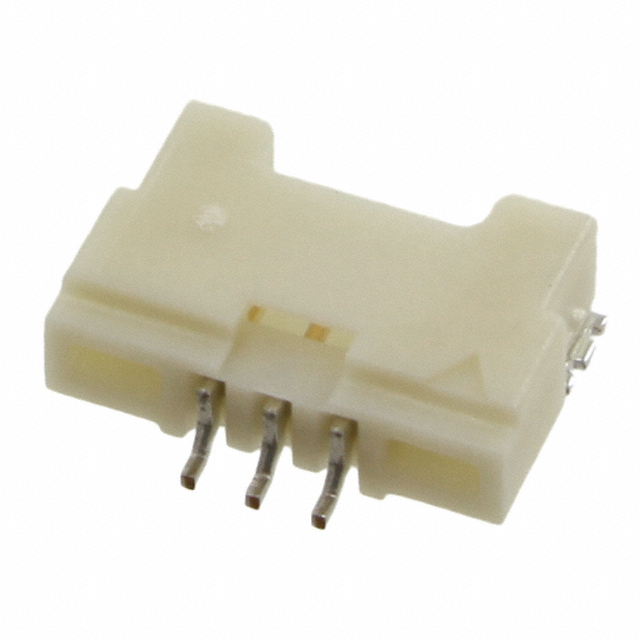

Hirose Electric Co Ltd DF14A-3P-1.25H(56)	0.086 in	2.2 mm	1 çm	39.4 çin	1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Nylon Polyamide (PA)	85 °C	-35 °C	Solder Retention	Beige		Header	Push-Pull	Brass	Gold	Tin-Copper			All	Right Angle Surface Mount	150 VDC	Male Pin	0.049 in	1.25 mm	3.9 µin	0.099 µm

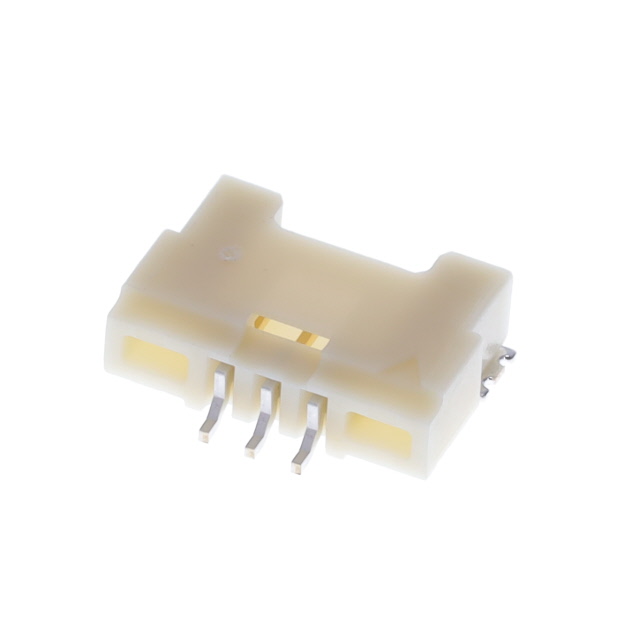

Hirose Electric Co Ltd DF14A-3P-1.25H(52)	0.086 in 0.087 in	2.2 mm	0.1 Ám	3.94 Áin	1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Nylon Polyamide (PA)	85 °C	-35 °C	Solder Retention	Beige		Header	Push-Pull	Brass	Gold	Gold	3.94 µin	0.1 µm	All	Right Angle Surface Mount	150 VAC	Male Pin	0.049 in	1.25 mm

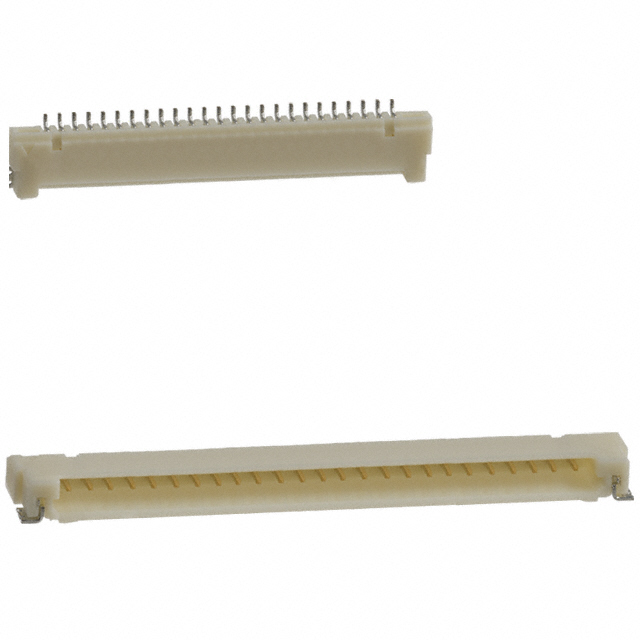

Hirose Electric Co Ltd DF14A-25P-1.25H(56)	0.086 in	2.2 mm	1 çm	39.4 çin	1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Nylon Polyamide (PA)	85 °C	-35 °C	Solder Retention	Beige	25	Header	Push-Pull	Brass	Gold	Tin-Copper			All	Right Angle Surface Mount	150 VDC	Male Pin	0.049 in	1.25 mm	3.9 µin	0.099 µm
Hirose Electric Co Ltd DF14A-5P-1.25H(26)	0.086 in	2.2 mm			1	Solder	UL94 V-0	0.098 "	2.5 mm	Board to Cable/Wire	Shrouded - 4 Wall	Square	Nylon Polyamide (PA)	85 °C	-35 °C	Solder Retention	Beige	5	Header	Push-Pull	Brass	Tin-Copper				All	Right Angle Surface Mount	150 VDC	Male Pin	0.049 in	1.25 mm			39.4 µin	1 µm
