DF81 Series

Catalog

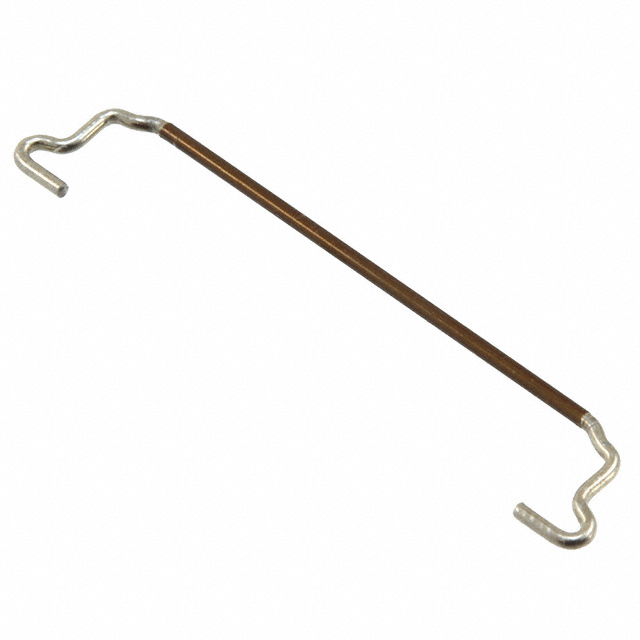

CONN LATCH FOR 40POS PLUG

Part	Accessory Type	Number of Positions	For Use With/Related Products	Cable Termination	Pitch	Pitch	Color	Contact Type	Wire Type	Connector Type	Mounting Type	Number of Rows	Termination	Contact Finish - Post	Contact Finish - Mating	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height [z]	Fastening Type	Current Rating (Amps)	Style	Features	Contact Finish	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Hirose Electric Co Ltd DF81-40P-LCH(52)	Latch	40	DF81 Series
Hirose Electric Co Ltd DF81-30P-SHL(52)	Shell	30	DF81 Series
Hirose Electric Co Ltd DF81-40P-LCH	Latch	40	DF81 Series
Hirose Electric Co Ltd DF81DJ-30P-0.4SD(51)		30		Solder	0.4 mm	0.016 in	Black	Outer Shroud Contact	Discrete Ribbon Cable	Plug	Free Hanging (In-Line)	1
Hirose Electric Co Ltd DF81-30S-0.4H(52)		30						Center Strip Contact		Receptacle	Right Angle Surface Mount	1	Solder	Gold	Gold	UL94 V-0	100 V	All	0.4 mm	0.016 in	3.9 µin	0.099 µm	Black	85 °C	-35 °C	0.9 mm	0.035 in	Latch Holder	0.3 A	Board to Cable/Wire	Grounding Tab Shielded
Hirose Electric Co Ltd DF81D-30P-0.4SD(52)		30		Solder	0.4 mm	0.016 in	Black	Outer Shroud Contact	Discrete Ribbon Cable	Plug	Free Hanging (In-Line)	1																				Gold
Hirose Electric Co Ltd DF81-50S-0.4H(51)		50						Center Strip Contact		Receptacle	Right Angle Surface Mount	1	Solder	Gold	Gold	UL94 V-0	100 V	All	0.4 mm	0.016 in	3.9 µin	0.099 µm	Black	85 °C	-35 °C	0.9 mm	0.035 in	Latch Holder	0.3 A	Board to Cable/Wire	Grounding Tab Shielded		Halogen Free Liquid Crystal Polymer (LCP)	Phosphor Bronze	2 µin	0.051 µm
Hirose Electric Co Ltd DF81-30S-0.4H(51)		30						Center Strip Contact		Receptacle	Right Angle Surface Mount	1	Solder	Gold	Gold	UL94 V-0	100 V	All	0.4 mm	0.016 in	3.9 µin	0.099 µm	Black	85 °C	-35 °C	0.9 mm	0.035 in	Latch Holder	0.3 A	Board to Cable/Wire	Grounding Tab Shielded		Halogen Free Liquid Crystal Polymer (LCP)	Phosphor Bronze	2 µin	0.051 µm
Hirose Electric Co Ltd DF81-40S-0.4H(51)		40						Center Strip Contact		Receptacle	Right Angle Surface Mount	1	Solder	Gold	Gold	UL94 V-0	100 V	All	0.4 mm	0.016 in	3.9 µin	0.099 µm	Black	85 °C	-35 °C	0.9 mm	0.035 in	Latch Holder	0.3 A	Board to Cable/Wire	Grounding Tab Shielded		Halogen Free Liquid Crystal Polymer (LCP)	Phosphor Bronze	2 µin	0.051 µm

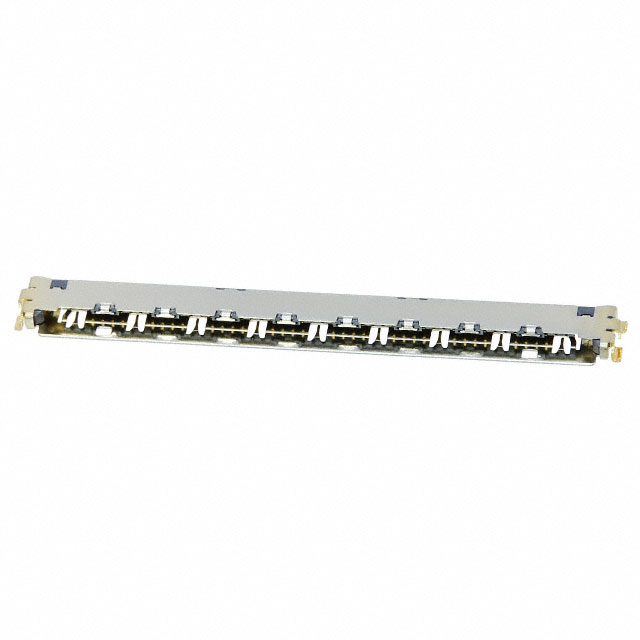

Hirose Electric Co Ltd DF81-50S-0.4H(52)		50						Center Strip Contact		Receptacle	Right Angle Surface Mount	1	Solder	Gold	Gold	UL94 V-0	100 V	All	0.4 mm	0.016 in	3.9 µin	0.099 µm	Black	85 °C	-35 °C	0.9 mm	0.035 in	Latch Holder	0.3 A	Board to Cable/Wire	Grounding Tab Shielded		Halogen Free Liquid Crystal Polymer (LCP)	Phosphor Bronze	2 µin	0.051 µm
