HIF3 Series

Catalog

CONN GUIDE PLATE

Part	For Use With/Related Products	Accessory Type	Number of Positions	Contact Finish	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Type	Fastening Type	Pitch - Mating	Pitch - Mating	Style	Termination	Voltage Rating	Shrouding	Insulation Material	Insulation Color	Number of Rows [custom]	Mounting Type	Contact Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating
Hirose Electric Co Ltd HIF3-GPD40	HIF3 Series	Guide Plate	40

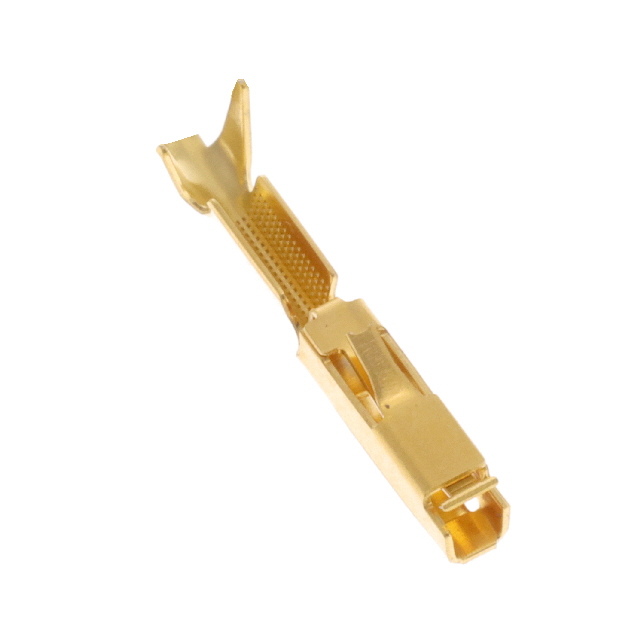

Hirose Electric Co Ltd HIF3-2428SCF				Gold	Socket	24 AWG	28 AWG	Crimp
Hirose Electric Co Ltd HIF3-GPD50	HIF3 Series	Guide Plate	50

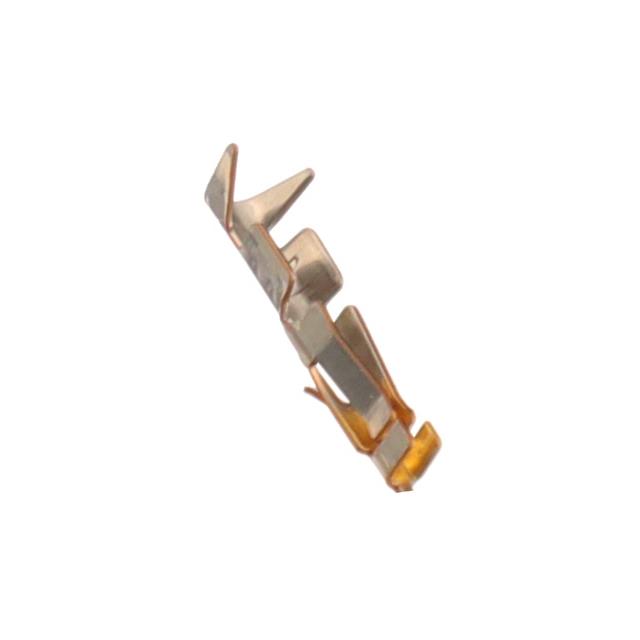

Hirose Electric Co Ltd HIF3-2226SCFC				Gold	Socket	22 AWG	26 AWG	Crimp

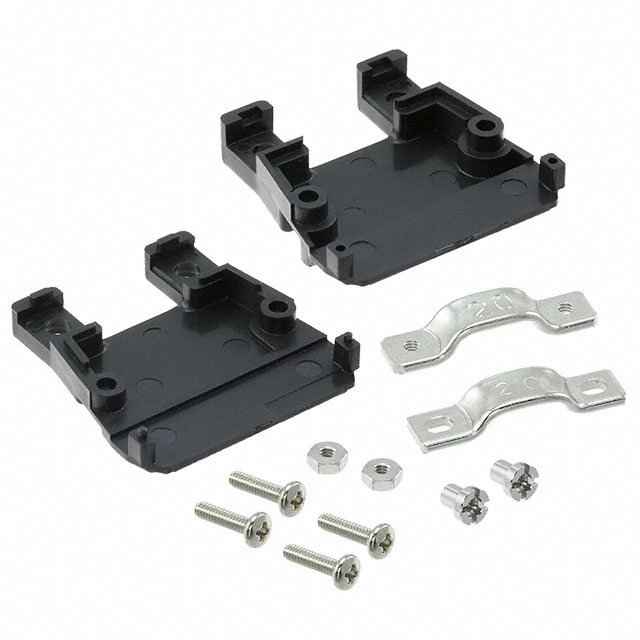

Hirose Electric Co Ltd HIF3-20CV(72)	HIF3 Series	Backshell	20

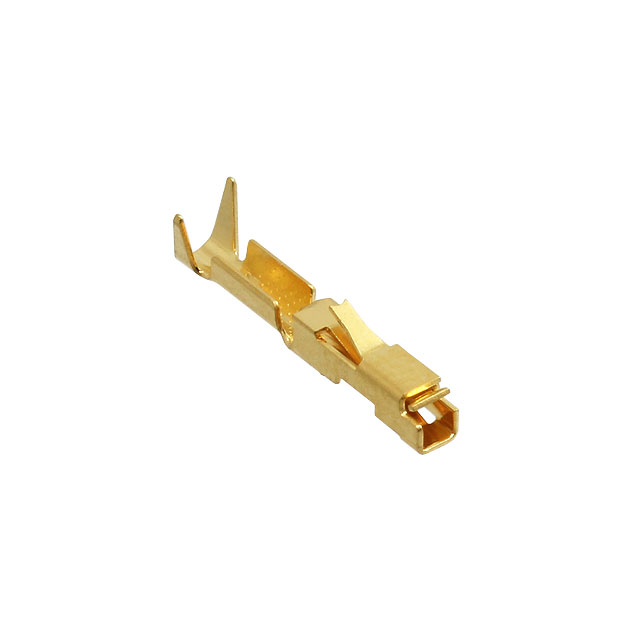

Hirose Electric Co Ltd HIF3-2226SC				Gold	Socket	22 AWG	26 AWG	Crimp

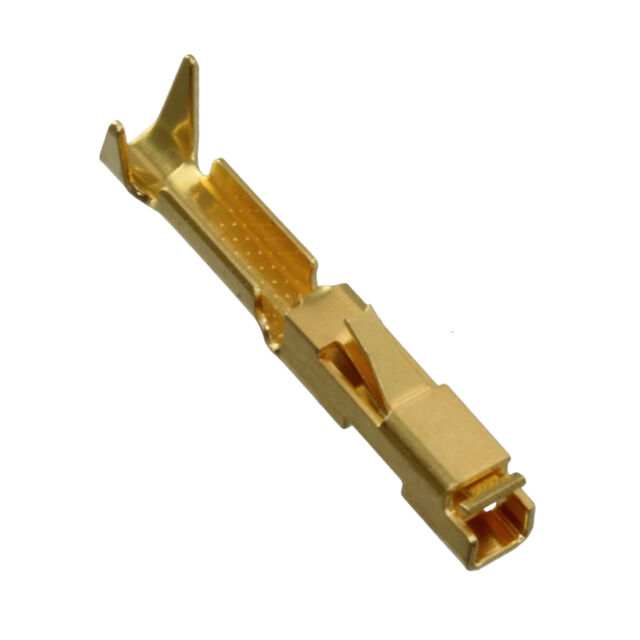

Hirose Electric Co Ltd HIF3-2428SC				Gold	Socket	24 AWG	28 AWG	Crimp	0.203 çm	8 µin
Hirose Electric Co Ltd HIF3-40P-2.54DS			40								Mounting Flange	0.118 in	3 mm	Square	All	6 mm	0.236 in	Male Pin	Latch Lock/Eject Hooks	0.1 "	2.54 mm	Board to Cable/Wire	Solder	200 V	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Black	2	Right Angle Through Hole	Brass	Header	0.1 in	2.54 mm	-55 C	85 °C	UL94 V-0

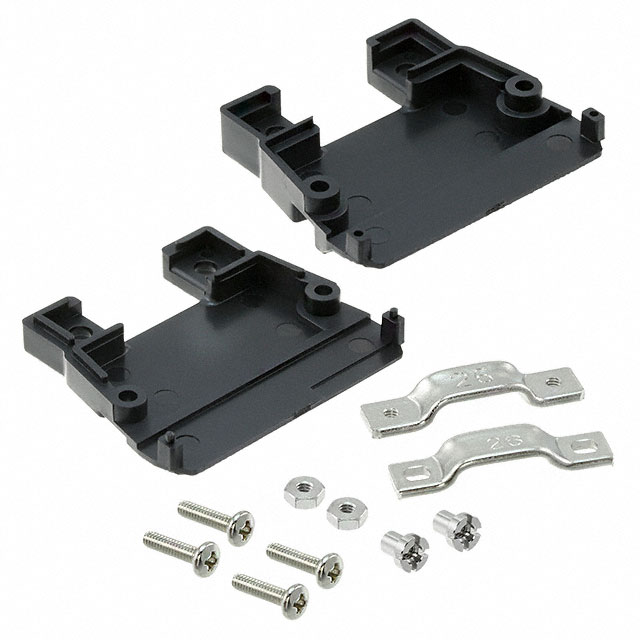

Hirose Electric Co Ltd HIF3-26CV(72)	HIF3 Series	Backshell	26
Hirose Electric Co Ltd HIF3-6P-2.54DS			6								Mounting Flange	0.118 in	3 mm	Square	All	6 mm	0.236 in	Male Pin	Latch Lock/Eject Hooks	0.1 "	2.54 mm	Board to Cable/Wire	Solder	200 V	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Black	2	Right Angle Through Hole	Brass	Header	0.1 in	2.54 mm	-55 C	85 °C	UL94 V-0
