L6983 Series

Catalog

SYNCHRONOUS STEP-DOWN CONVERTER WITH 17UA QUIESCENT CURRENT 3.5V TO 38V 3A 5V 16-PIN QFN T/R

Part	Current - Output	Supplier Device Package	Voltage - Output (Min/Fixed)	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Function	Package / Case	Mounting Type	Output Configuration	Output Type	Voltage - Output (Max) [Max]

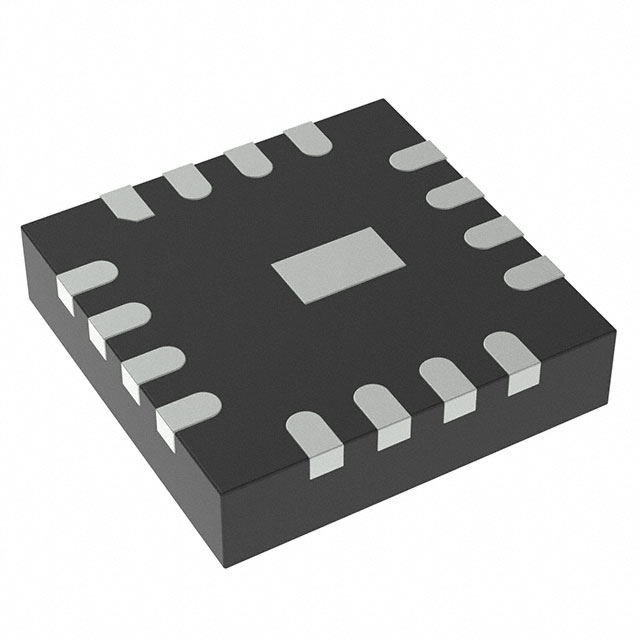

STMicroelectronics L6983C50QTR	3 A	16-QFN (3x3)	5 V	200 kHz	2.2 MHz	3.5 V	38 V	1	Buck	-40 °C	150 °C	Step-Down	16-WFQFN Exposed Pad	Surface Mount	Positive
STMicroelectronics L6983C33QTR	3 A	16-QFN (3x3)	3.3 V	200 kHz	2.2 MHz	3.5 V	38 V	1	Buck	-40 °C	150 °C	Step-Down	16-WFQFN Exposed Pad	Surface Mount	Positive
STMicroelectronics L6983CQTR	3 A	16-QFN (3x3)	0.85 V	200 kHz	2.2 MHz	3.5 V	38 V	1	Buck			Step-Down	16-WFQFN Exposed Pad	Surface Mount	Positive	Adjustable	38 V
STMicroelectronics L6983NQTR	3 A	16-QFN (3x3)	0.85 V	200 kHz	2.2 MHz	3.5 V	38 V	1	Buck	-40 °C	150 °C	Step-Down	16-WFQFN Exposed Pad	Surface Mount	Positive	Adjustable	38 V
STMicroelectronics L6983N50QTR	3 A	16-QFN (3x3)	5 V	200 kHz	2.2 MHz	3.5 V	38 V	1	Buck	-40 °C	150 °C	Step-Down	16-WFQFN Exposed Pad	Surface Mount	Positive
STMicroelectronics L6983N33QTR	3 A	16-QFN (3x3)	3.3 V	200 kHz	2.2 MHz	3.5 V	38 V	1	Buck	-40 °C	150 °C	Step-Down	16-WFQFN Exposed Pad	Surface Mount	Positive
