MIC47050 Series

500mA ULDO w/ Low Input and Low Output Voltage

Catalog

500mA ULDO w/ Low Input and Low Output Voltage

Part	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	PSRR [Max]	PSRR [Min]	Supplier Device Package	Package / Case	Mounting Type	Control Features	Voltage - Input (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Number of Regulators	Output Configuration	Voltage - Output (Min/Fixed)	Current - Output	Output Type	Qualification	Voltage - Output (Max) [Max]	Grade

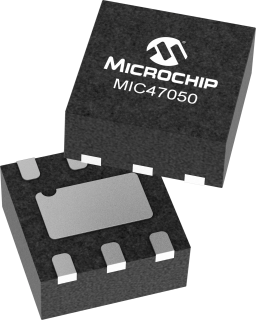

Microchip Technology MIC47050-1.8YML-TR	15 µA	0.12 V	50 dB	37 dB	6-MLF® (2x2)	6-MLF® 6-VDFN Exposed Pad	Surface Mount	Enable Power Good	3.6 V	1.81 mOhm	85 °C	-40 °C	Over Temperature Under Voltage Lockout (UVLO)	1	Positive	1.8 V	500 mA
Microchip Technology MIC47050-1.2YML-TR	15 µA	0.12 V	50 dB	37 dB	6-DFN (2x2)	6-MLF® 6-VDFN Exposed Pad	Surface Mount	Enable Power Good	3.6 V	1.81 mOhm	85 °C	-40 °C	Over Temperature Under Voltage Lockout (UVLO)	1	Positive	1.2 V	500 mA
Microchip Technology MIC47050YML-TRVAO	15 µA	0.12 V	50 dB	37 dB	6-DFN (2x2)	6-VDFN Exposed Pad	Surface Mount	Enable Power Good	3.6 V		125 ¯C	-40 °C	Over Temperature Under Voltage Lockout (UVLO)	1	Positive	0.4 V	500 mA	Adjustable	AEC-Q100	2 V	Automotive
Microchip Technology MIC47050YML-TR	15 µA	0.12 V	50 dB	37 dB	6-DFN (2x2)	6-MLF® 6-VDFN Exposed Pad	Surface Mount	Enable Power Good	3.6 V		85 °C	-40 °C	Over Temperature Under Voltage Lockout (UVLO)	1	Positive	0.4 V	500 mA	Adjustable		2 V
Microchip Technology MIC47050-1.2YML-TRVAO	15 µA	0.12 V	50 dB	37 dB	6-DFN (2x2)	6-VDFN Exposed Pad	Surface Mount	Enable Power Good	3.6 V	1.81 mOhm	125 ¯C	-40 °C	Over Temperature Under Voltage Lockout (UVLO)	1	Positive	1.2 V	500 mA		AEC-Q100		Automotive

Catalog

500mA ULDO w/ Low Input and Low Output Voltage

Key Features

• * AEC-Q100 and PPAP Capable

• * Input voltage range: 1.0V to 3.6V

• * Stable with 1µF ceramic output capacitor

• * Low dropout voltage ULDO™: 44mV at 500mA

• * ±1.5% initial output voltage accuracy

• * Bias supply voltage range: 2.3V to 5.5V

• * Adjustable output voltage range: 0.4V to 2.0V

• * Logic-level enable input

• * 400mA maximum output current per LDO

• * Very fast transient response

• * UVLO on both supply packages

• * Junction temperature range of -40°C to +125°C

Description

The MIC47050 is a high-speed, ultra-low dropout, dual-supply NMOS ULDO™ designed to take advantage of point-of-load applications that use multiple supply rails to generate a low-voltage, high-current power supply. The MIC47050 can source 500mA of output current while only requiring a 1µF ceramic output capacitor for stability. A 1.5% output voltage accuracy, low dropout voltage (44mV at 500mA), and low ground current makes this device ideally suited for mobile and point-of-load applications. The MIC47050 has an NMOS output stage offering very low output impedance. The NMOS output stage makes for a unique ability to respond very quickly to sudden load changes such as those required by a microprocessor, DSP or FPGA. The MIC47050 consumes little quiescent current and can be used for driving the core voltages of mobile processors, post regulating a core DC/DC converter in any processor. The MIC47050 operates over a junction temperature range of -40°C to +125°C. The MIC47050 now offers automotive grade 1. AEC-Q100 and PPAP capable.
