SC52-11 Series

Catalog

DISPLAY 7SEG 0.52" SGL RED 10DIP

Part	Power Dissipation (Max) [Max]	Current - Test	Display Type	Package / Case	Package / Case	Wavelength - Peak	Number of Characters	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Color
Kingbright SC52-11SRWA	75 mw	20 mA	7-Segment	0.6 in 15.24 mm	10-DIP	660 nm	1	Common Cathode	0.52 in	13.21 mm	7 mm	0.689 in	0.276 in	17.5 mm	0.488 "	12.4 mm	34 mcd	1.85 V	Red
Kingbright SC52-11EWA	75 mw	20 mA	7-Segment	0.6 in 15.24 mm	10-DIP	627 nm	1	Common Cathode	0.52 in	13.21 mm	7 mm	0.689 in	0.276 in	17.5 mm	0.488 "	12.4 mm		2 V	Red
Kingbright SC52-11GWA	62.5 mW	20 mA	7-Segment	0.6 in 15.24 mm	10-DIP	565 nm	1	Common Cathode	0.52 in	13.21 mm	7 mm	0.689 in	0.276 in	17.5 mm	0.488 "	12.4 mm	10.5 mcd	2.2 V	Green

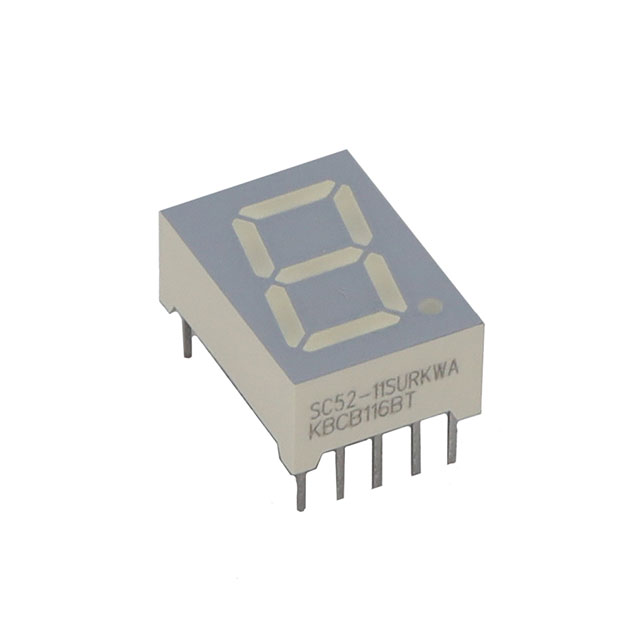

Kingbright SC52-11SURKWA		10 mA	7-Segment	0.6 in 15.24 mm	10-DIP	645 nm	1	Common Cathode	0.52 in	13.2 mm	7 mm	0.689 in	0.276 in	17.5 mm	0.488 "	12.4 mm	110 mcd	1.85 V	Red
