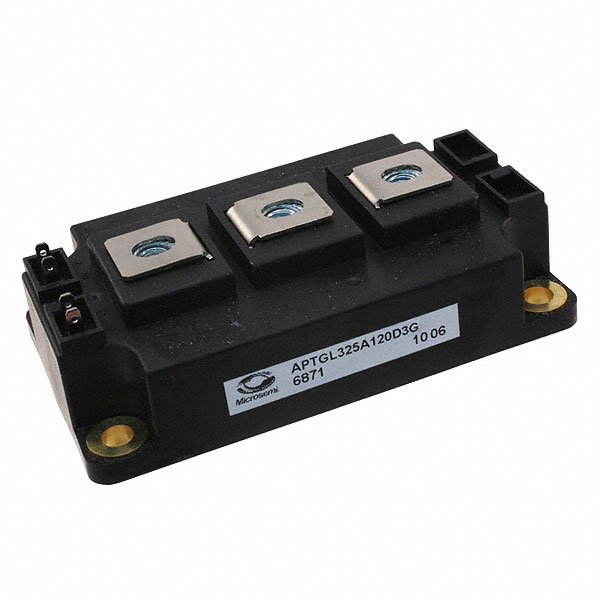

APTGL325A120D3G-Module Series

1200V/Phase leg/IGBT modules

Catalog

1200V/Phase leg/IGBT modules

Part	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	IGBT Type	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Package / Case	NTC Thermistor	Mounting Type	Input Capacitance (Cies) @ Vce	Configuration	Vce(on) (Max) @ Vge, Ic	Input	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Microchip Technology APTGL325A120D3G	420 A	1500 W	Trench Field Stop	5 mA	D3	D-3 Module		Chassis Mount	18.6 nF	Half Bridge	2.2 V	Standard	1200 V	-40 C	175 °C

Catalog

1200V/Phase leg/IGBT modules

Key Features

• + Configuration: Phase leg

• + VCES (V): 1200

• + VCESat (V): 1.85

• + Current (A) Tc=80C: 325

• + Silicon type: TRENCH 4 IGBT

• + Package: D3

Description

* IGBT 4 * Very Low voltage drop * Low tail current * Low leakage current * Kelvin emitter for easy drive * Low stray inductance * High level of integration * Stable temperature behavior * Very rugged * Direct mounting to heatsink (isolated package) * Low junction to case thermal resistance * Internal thermistor for temperature monitoring (optional) * Easy paralleling due to positive TC of VCEsat * Low profile * RoHS Compliant
