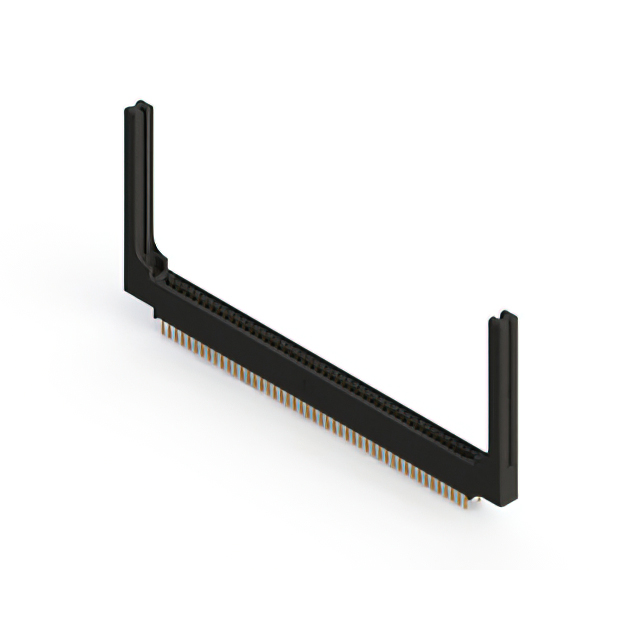

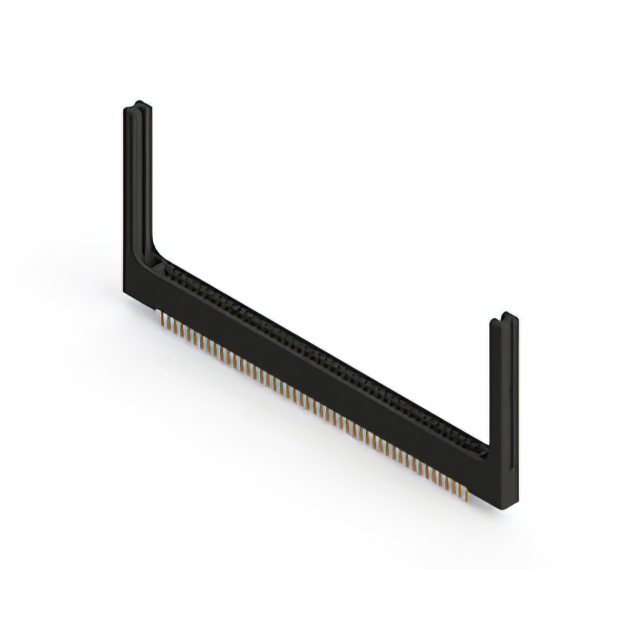

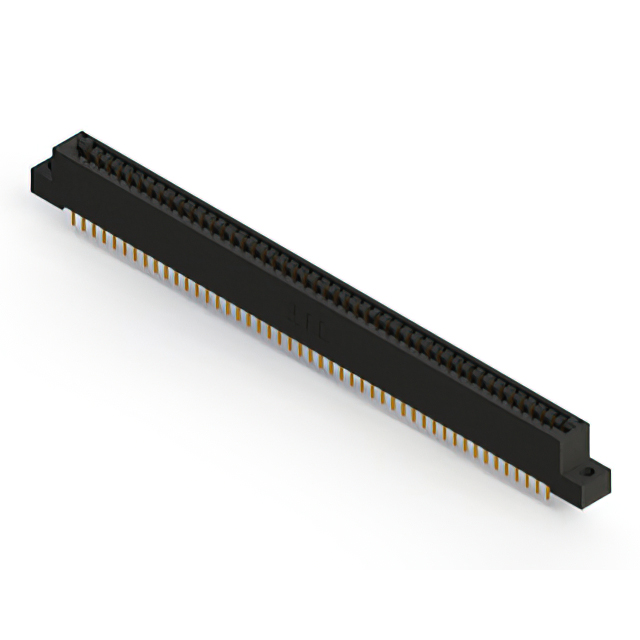

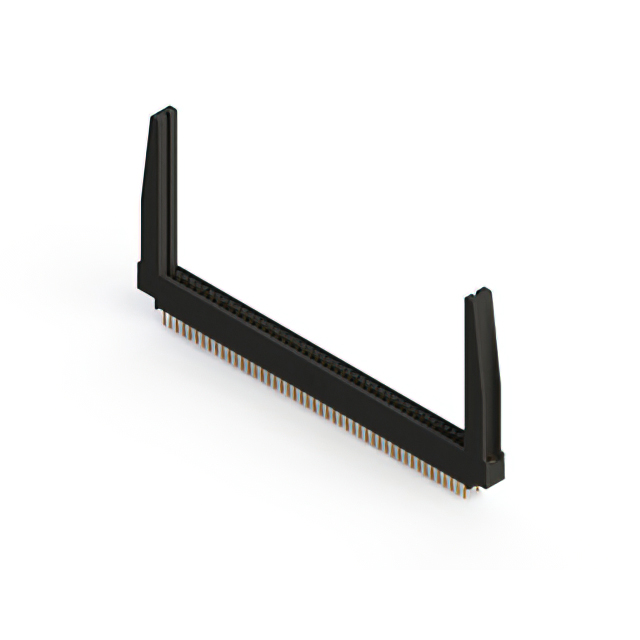

396-094 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 94POS 0.125
...
| Part | Number of Positions | Material - Insulation | Flange Feature | Flange Feature | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Rows | Termination | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination Rows | Mounting Type | Contact Finish | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 94 | Polyester Thermoplastic | 3.25 mm | 0.128 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Wire Wrap | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | ||||
 EDAC Inc. | 94 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Solder | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||
 EDAC Inc. | 94 | Polyester Thermoplastic | 3.25 mm | 0.128 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Wire Wrap | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | ||||
 EDAC Inc. | 94 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Solder | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | |||||
 EDAC Inc. | 94 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Solder | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | ||||||
 EDAC Inc. | 94 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Wire Wrap | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
 EDAC Inc. | 94 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Solder | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
 EDAC Inc. | 94 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Solder | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||
 EDAC Inc. | 94 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Wire Wrap | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | 94 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Solder | 0.125 in | 3.18 mm | 47 | -40 °C | 105 ░C | Black | 2 | Through Hole | Gold | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening |
