ADA4857-2 Series

Ultralow Distortion, Low Power, Low Noise, High Speed Op Amp

Catalog

Ultralow Distortion, Low Power, Low Noise, High Speed Op Amp

Part	Current - Supply	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Number of Circuits	Mounting Type	Voltage - Supply Span (Max) [Max]	Gain Bandwidth Product	-3db Bandwidth	Operating Temperature [Max]	Operating Temperature [Min]	Amplifier Type	Voltage - Input Offset	Package / Case	Slew Rate	Current - Output / Channel	Supplier Device Package	Supplied Contents	Channels per IC	Board Type	Package / Case [y]	Package / Case [x]
Analog Devices ADA4857-2YCPZ-RL	5 mA	4.5 V	2 µA	2	Surface Mount	10.5 V	410 MHz	850 MHz	125 °C	-40 °C	Voltage Feedback	2 mV	16-WQFN Exposed Pad CSP	2800 V/µs	50 mA	16-LFCSP (4x4)
Analog Devices ADA4857-2YCPZ-R7	5 mA	4.5 V	2 µA	2	Surface Mount	10.5 V	410 MHz	850 MHz	125 °C	-40 °C	Voltage Feedback	2 mV	16-WQFN Exposed Pad CSP	2800 V/µs	50 mA	16-LFCSP (4x4)

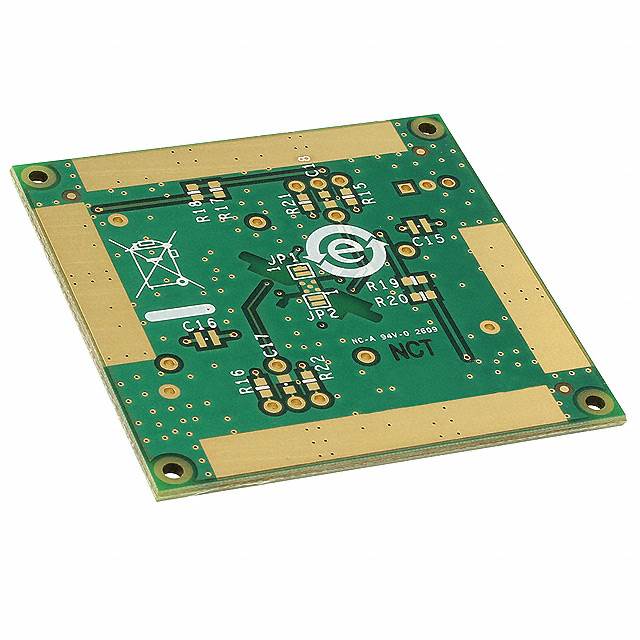

Analog Devices ADA4857-2YCP-EBZ											Voltage Feedback						Board(s)	2 - Dual	Bare (Unpopulated)
Analog Devices ADA4857-1YRZ-RL	5 mA	4.5 V	2 µA	1	Surface Mount	10.5 V		850 MHz	125 °C	-40 °C	Voltage Feedback	2 mV	8-SOIC	2800 V/µs	50 mA	8-SOIC				3.9 mm	0.154 in
Analog Devices ADA4857-1YCPZ-R7	5 mA	4.5 V	2 µA	1	Surface Mount	10.5 V		850 MHz	125 °C	-40 °C	Voltage Feedback	2 mV	8-VFDFN Exposed Pad CSP	2800 V/µs	50 mA	8-LFCSP-VD (3x3)
Analog Devices ADA4857-1YRZ-R7	5 mA	4.5 V	2 µA	1	Surface Mount	10.5 V		850 MHz	125 °C	-40 °C	Voltage Feedback	2 mV	8-SOIC	2800 V/µs	50 mA	8-SOIC				3.9 mm	0.154 in

Catalog

Ultralow Distortion, Low Power, Low Noise, High Speed Op Amp

Key Features

• High speed850 MHz, -3 dB bandwidth (G = +1, RL= 1kΩ), LFSCP)750 MHz, −3 dB bandwidth (G = +1, RL = 1 kΩ, SOIC)2800 V/µs slew rate

• Low distortion:-88 dBc @ 10 MHz (G = +1, RL= 1kΩ)

• Low power: 5 mA/amplifier @ 10 V

• Low noise: 4.4 nV/√Hz

• Wide supply voltage range: 5 V to 10 V

• Power-down feature

• Available in 3 mm × 3 mm 8-lead LFCSP (single), 8-lead SOIC (single), and 4 mm × 4 mm 16-lead LFCSP (dual)

Description

The ADA4857 is a unity gain stable, high speed, voltage feedback amplifier with low distortion, low noise, and high slew rate. With a spurious-free dynamic range (SFDR) of −88 dBc @ 10 MHz, the ADA4857 is an ideal solution for a variety of applications including ultrasounds, ATE, active filters, and ADC drivers. The Analog Devices, Inc., proprietary next-generation XFCB process and innovative architecture enables such high performance amplifiers.The ADA4857 has 850 MHz bandwidth, 2800 V/μs slew rate, and settles to 0.1% in 15 ns. With a wide supply voltage range (5 V to 10 V), the ADA4857 is an ideal candidate for systems that require high dynamic range, precision, and speed.The ADA4857-1 amplifier is available in a 3 mm × 3 mm, 8-lead LFCSP and a standard 8-lead SOIC. The ADA4857-2 is available in a 4 mm × 4 mm, 16-lead LFSCP. The LFCSP features an exposed paddle that provides a low thermal resistance path to the printed circuit board (PCB). This path enables more efficient heat transfer and increases reliability. The ADA4857 works over the extended industrial temperature range (−40°C to +125°C).ApplicationsInstrumentationIF and baseband amplifiersActive filtersADC driversDAC bufferstable.nopad td, table.nopad th { padding: 0px; margin: 0px; vertical-align: top;}
