AD8004 Series

Catalog

3000 V/ΜS, 35MW CURRENT FEEDBACK QUAD AMPLIFIER

Part	Number of Circuits	Voltage - Supply Span (Min) [Min]	Slew Rate	Mounting Type	Package / Case [x]	Package / Case [y]	Package / Case	Amplifier Type	Current - Output / Channel	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	-3db Bandwidth	Gain Bandwidth Product	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Current - Input Bias	Supplier Device Package	Utilized IC / Part	Supplied Contents	Channels per IC	Board Type
Analog Devices AD8004ARZ-14-REEL7	4	4 V	3000 V/µs	Surface Mount	0.154 in	3.9 mm	14-SOIC	Current Feedback	50 mA	12 V	1 mV	250 MHz	30 MHz	14 mA	85 °C	-40 °C	40 µA
Analog Devices AD8004SQ	4	4 V	3000 V/µs	Through Hole			14-CDIP	Current Feedback	50 mA	12 V	1 mV	250 MHz		14 mA	125 °C	-55 °C	40 µA	14-CerDIP

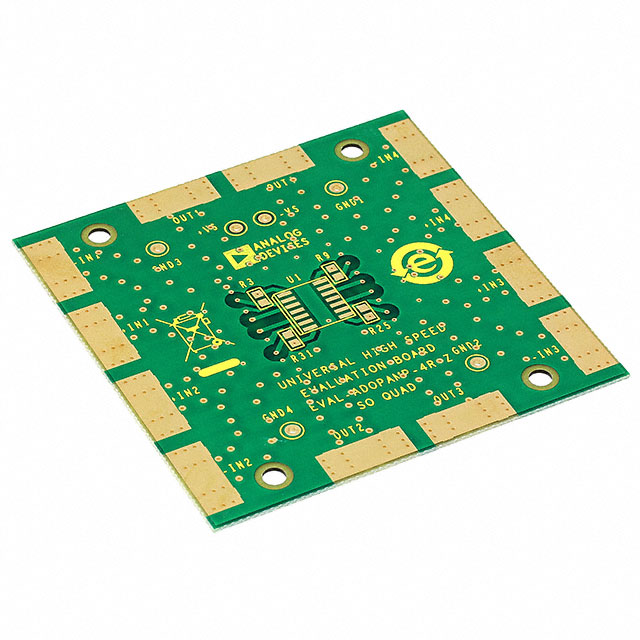

Analog Devices AD8004AR-EBZ								Current Feedback											14-SOIC Package	Board(s)	4	Bare (Unpopulated)
Analog Devices AD8004ARZ-14-REEL	4	4 V	3000 V/µs	Surface Mount	0.154 in	3.9 mm	14-SOIC	Current Feedback	50 mA	12 V	1 mV	250 MHz	30 MHz	14 mA	85 °C	-40 °C	40 µA
Analog Devices AD8004AR-14-REEL7	4	4 V	3000 V/µs	Surface Mount	0.154 in	3.9 mm	14-SOIC	Current Feedback	50 mA	12 V	1 mV	250 MHz	30 MHz	14 mA	85 °C	-40 °C	40 µA
