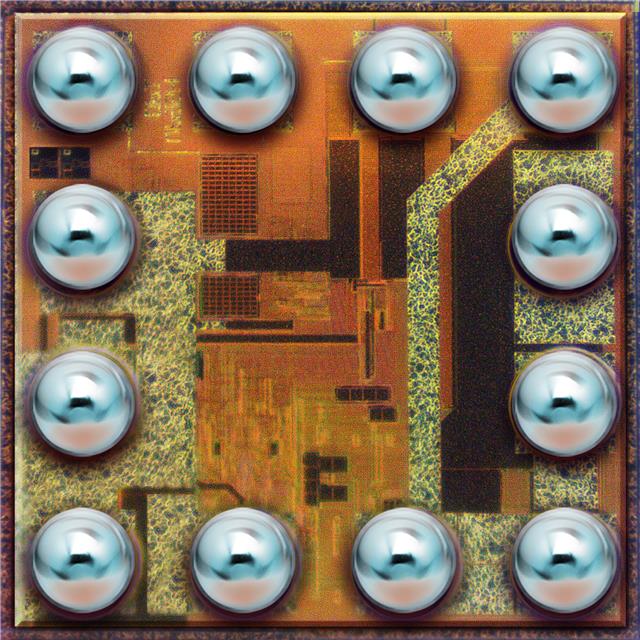

UP1966 Series
Manufacturer: EPC
Beta
⌘K
IC GATE DRVR HALF-BRIDGE 12WLCSP
| Part | Gate Type | Input Type | High Side Voltage - Max (Bootstrap) [Max] | Channel Type | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Supplier Device Package | Logic Voltage - VIL, VIH | Voltage - Supply [Max] | Voltage - Supply [Min] | Driven Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Number of Drivers | Mounting Type | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EPC | Enhanced Mode GaN FET GaN FET | Non-Inverting | 85 V | Independent | 4 ns | 8 ns | 12-WLCSP-B (1.6x1.6) | 0.5 V 2.3 V | 5.5 V | 4.5 V | Half-Bridge | -40 C | 125 °C | 12-UFBGA WLCSP | 2 | Surface Mount | 12.5 A | 7.1 A |
