ZE05H Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT SMT VERT 2MM 24POS
| Part | Style | Number of Positions Loaded | Connector Type | Contact Material | Voltage Rating | Features | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Mounting Type | Termination | Current Rating (Amps) | Number of Positions | Insulation Color | Number of Rows [custom] | Insulation Height | Insulation Height | Insulation Material | Shrouding | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

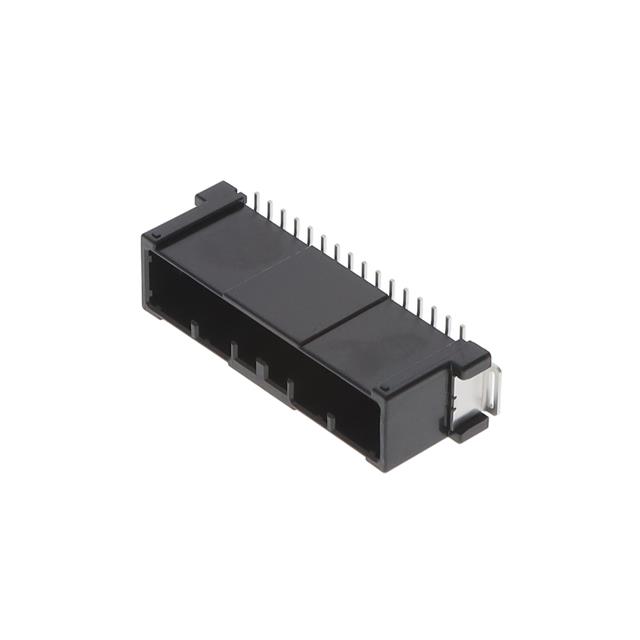

 Hirose Electric Co Ltd | Board to Cable/Wire | All | Header | Brass | 60 VAC | Solder Retention | 125 °C | -40 C | UL94 V-0 | Surface Mount | Solder | 2A 5A | 24 | Black | 2 | 0.276 in | 7 mm | Nylon Polyamide (PA) | Shrouded - 4 Wall | Square | 0.079 " | 2 mm | Male Pin | Tin |

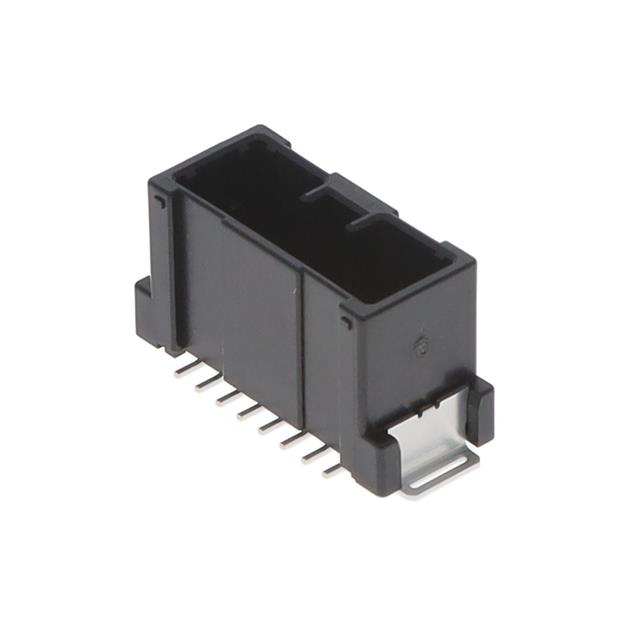

 Hirose Electric Co Ltd | Board to Cable/Wire | All | Header | Brass | 60 VAC | Solder Retention | 125 °C | -40 C | UL94 V-0 | Surface Mount | Solder | 2A 5A | 12 | Black | 2 | 0.276 in | 7 mm | Nylon Polyamide (PA) | Shrouded - 4 Wall | Square | 0.079 " | 2 mm | Male Pin | Tin |

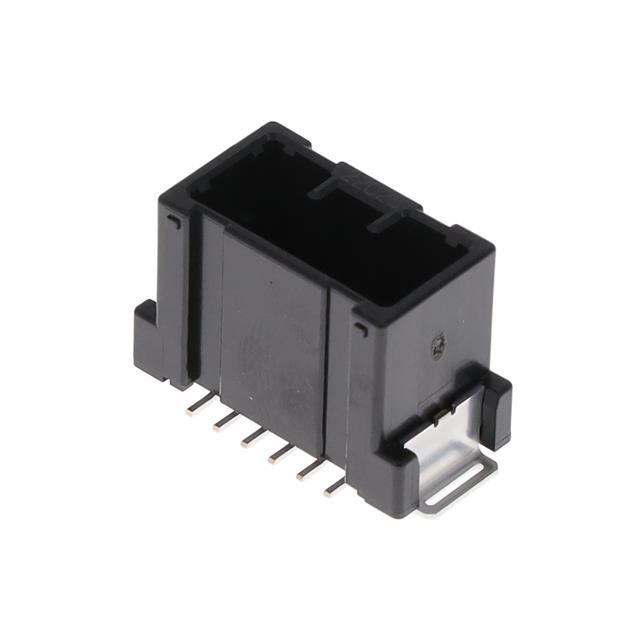

 Hirose Electric Co Ltd | Board to Cable/Wire | All | Header | Brass | 60 VAC | Solder Retention | 125 °C | -40 C | UL94 V-0 | Surface Mount | Solder | 2A 5A | 8 | Black | 2 | 0.276 in | 7 mm | Nylon Polyamide (PA) | Shrouded - 4 Wall | Square | 0.079 " | 2 mm | Male Pin | Tin |
