ER8 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS HIGHSPEED TRANS RCPT 40P STRGHT 0.76UM

Part	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Contact Finish	Number of Rows [custom]	Pitch	Pitch	Number of Positions	Features	Height Above Board	Height Above Board
Hirose Electric Co Ltd ER8-40S-0.8SV-5H	Surface Mount	Receptacle Outer Shroud Contacts	30 Áin	0.76 Ám	0.211 in	5.35 mm	7 mm 10 mm	Gold	2	0.8 mm	0.031 in	40	Board Guide
Hirose Electric Co Ltd ER8-100S-0.8SV-5H	Surface Mount	Receptacle Outer Shroud Contacts	30 Áin	0.76 Ám	0.211 in	5.35 mm	7 mm 10 mm	Gold	2	0.8 mm	0.031 in	100	Board Guide
Hirose Electric Co Ltd ER8-120S-0.8SH	Right Angle Surface Mount	Receptacle Outer Shroud Contacts	30 Áin	0.76 Ám	0.25 in	6.35 mm		Gold	2	0.8 mm	0.031 in	120	Board Guide

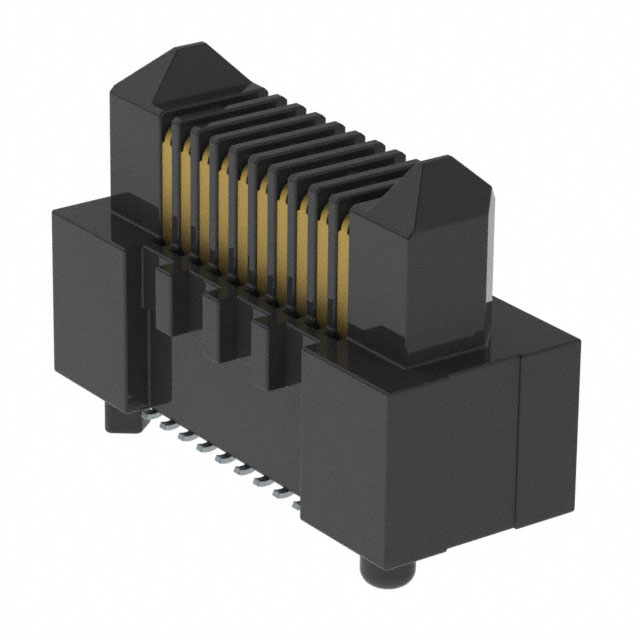

Hirose Electric Co Ltd ER8-20P-0.8SV-5H	Surface Mount	Header Center Strip Contacts	30 Áin	0.76 Ám			10 mm 12 mm	Gold	2	0.8 mm	0.031 in	20	Board Guide	8.91 mm	0.351 "
