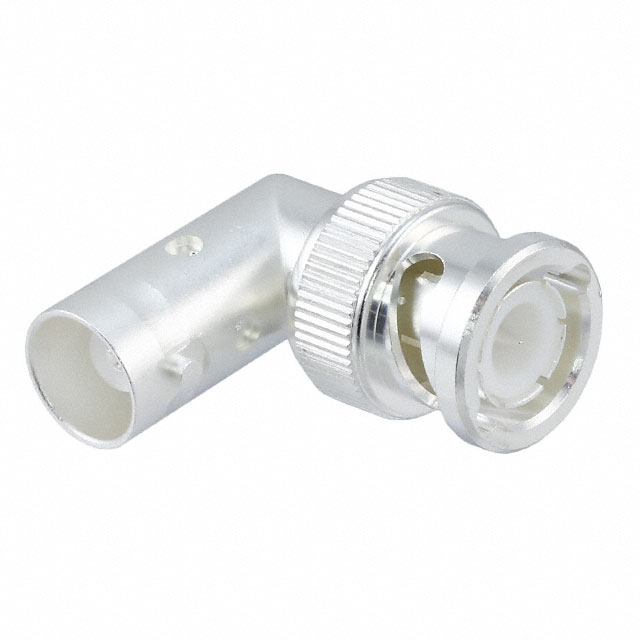

UG-306/U Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RF COAX ADAPT
| Part | Mating Cycles | Dielectric Material | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Impedance | Adapter Series | Adapter Type | Mounting Type | Center Contact Plating | Fastening Type | Frequency - Max [Max] | Convert From (Adapter End) | Conversion Type | Convert To (Adapter End) | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 1000 | Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | -55 C | 85 °C | Nickel | Brass | 50 Ohms | BNC to BNC | Plug to Jack | Free Hanging (In-Line) Right Angle | Gold | Bayonet Lock | 1 GHz | BNC Plug Male Pin | Same Series | BNC Jack Female Socket | Right Angle |
 Hirose Electric Co Ltd | 1000 | Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | Silver | Brass | 50 Ohms | BNC to BNC | Plug to Jack | Free Hanging (In-Line) Right Angle | Silver | Bayonet Lock | 4 GHz | BNC Plug Male Pin | Same Series | BNC Jack Female Socket | Right Angle |
