DF38A Series

Catalog

CONN RCPT 40POS 0.3MM SMD

Part	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Voltage Rating	Features	Connector Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Material Flammability Rating	Termination	Insulation Color	Contact Type	Style	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions
Hirose Electric Co Ltd DF38A-40S-0.3V(55)
Hirose Electric Co Ltd DF38A-32S-0.3V(51)	Phosphor Bronze	Halogen Free Liquid Crystal Polymer (LCP)	0.099 µm	3.9 µin	All	30 VAC	Pick and Place Solder Retention	Receptacle	Surface Mount	3.9 µin	0.099 µm	Friction Lock	UL94 V-0	Solder	Black	Center Strip Contact	Board to Cable/Wire	1	0.012 in	0.3 mm	Gold	85 °C	-35 °C	Varies by Wire Gauge	0.059 in	1.5 mm	Gold

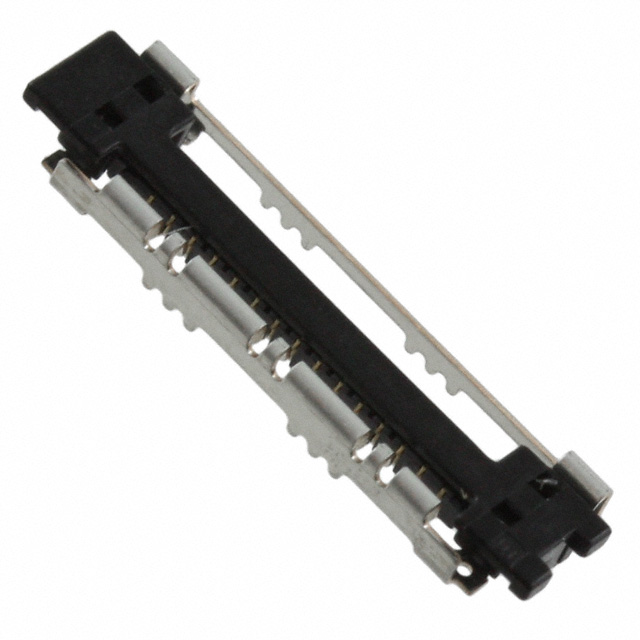

Hirose Electric Co Ltd DF38A-30S-0.3V(51)	Phosphor Bronze	Halogen Free Liquid Crystal Polymer (LCP)	0.099 µm	3.9 µin	All	30 VAC	Pick and Place Solder Retention	Receptacle	Surface Mount	3.9 µin	0.099 µm	Friction Lock	UL94 V-0	Solder	Black	Center Strip Contact	Board to Cable/Wire	1	0.012 in	0.3 mm	Gold	85 °C	-35 °C	Varies by Wire Gauge	0.059 in	1.5 mm	Gold	30
