MX555ABA25 Series

Catalog

SMD CRYSTAL CLOCK OSCILLATOR 25MHZ 2.375V TO 3.63V 6-PIN LGA TUBE

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Supply (Max) [Max]	Frequency Stability	Type	Mounting Type	Function	Base Resonator	Frequency	Output	Voltage - Supply [Max]	Voltage - Supply [Min]
Microchip Technology MX555ABA25M0000	0.197 in	0.126 "	3.2 mm	5 mm	1.4 mm	0.055 in	85 °C	-40 °C	6-SMD No Lead	120 mA	50 ppm	XO (Standard)	Surface Mount	Enable/Disable	Crystal	25 MHz	LVPECL	3.63 V	2.375 V
Microchip Technology MX555ABA50M0000	0.197 in	0.126 "	3.2 mm	5 mm	1.4 mm	0.055 in	85 °C	-40 °C	6-SMD No Lead	120 mA	50 ppm	XO (Standard)	Surface Mount	Enable/Disable	Crystal	50 MHz	LVPECL	3.63 V	2.375 V

• + 25MHz LVPECL

• + Typical phase noise: 100fs (integration range: 1.875MHz to 20MHz)

• + ±50ppm total frequency stability

• + –40°C to +85°C temperature range

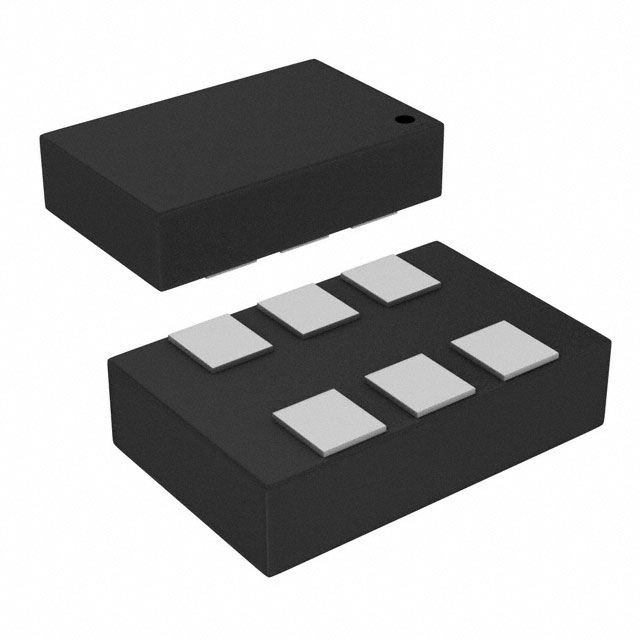

• + Industry standard 6-pin 5mm x 3.2mm LGA package

The MX555ABA25M0000 is an ultra-low phase jitter XO with LVPECL output optimized for high line rate applications. .
