A2-2PA-2 Series

Catalog

CONN UNSHROUDED HEADER HDR 2 POS 2.54MM SOLDER ST THRU-HOLE BAG

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Style	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Mating	Connector Type	Fastening Type	Insulation Color	Contact Finish - Post	Insulation Material	Number of Positions	Contact Material	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Shape	Mounting Type	Shrouding	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Height [z]	Insulation Height [z]

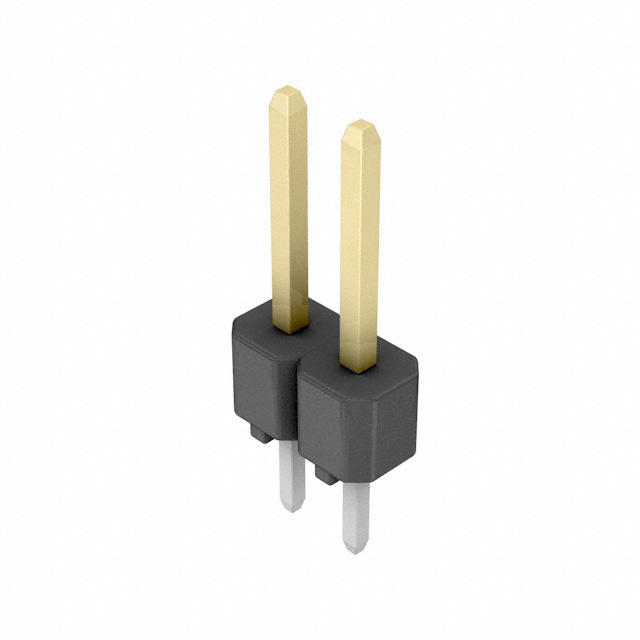

Hirose Electric Co Ltd A2-2PA-2.54DSA(71)	78.7 µin	2 µm	Board to Board Cable	All	8 µin	0.203 µm	200 V	Gold	Header	Push-Pull	Black	Tin	Polybutylene Terephthalate (PBT)	2	Brass	Male Pin	UL94 V-0	0.118 in	3 mm	0.1 in	2.54 mm	1	6 mm	0.236 in	Square	Through Hole	Unshrouded	11.54 mm	0.454 "	3 A	0.1 "	2.54 mm	-55 C	85 °C	Solder

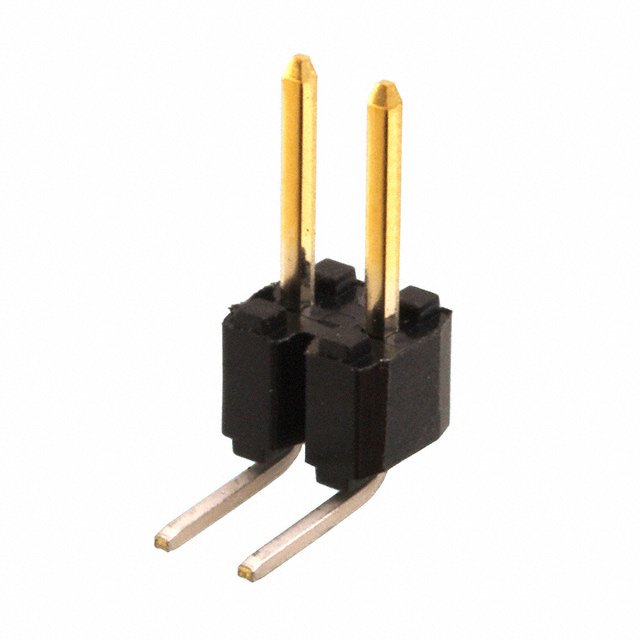

Hirose Electric Co Ltd A2-2PA-2.54DS(71)	78.7 µin	2 µm	Board to Board Cable	All	8 µin	0.203 µm	200 V	Gold	Header	Push-Pull	Black	Tin	Polybutylene Terephthalate (PBT)	2	Brass	Male Pin	UL94 V-0	0.138 in	3.5 mm			1	6 mm	0.236 in	Square	Right Angle Through Hole	Unshrouded			3 A	0.1 "	2.54 mm	-55 C	85 °C	Solder	4 mm	0.157 in
