ECMF4 Series

4 lines Common mode filter with ESD protection for High Speed Serial interface

Catalog

4 lines Common mode filter with ESD protection for High Speed Serial interface

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Number of Lines	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Max) [Max]	Mounting Type	DC Resistance (DCR) (Max)	Height (Max) [z]	Height (Max) [z]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max) [Max]
STMicroelectronics ECMF4-20A42N10	10-UFDFN 10-UFQFN	85 °C	-40 C	Signal Line	4	TVS Diode ESD Protection	0.087 in	2.2 mm	0.053 "	1.35 mm	100 mA	Surface Mount	5 Ohm	0.45 mm	0.018 in

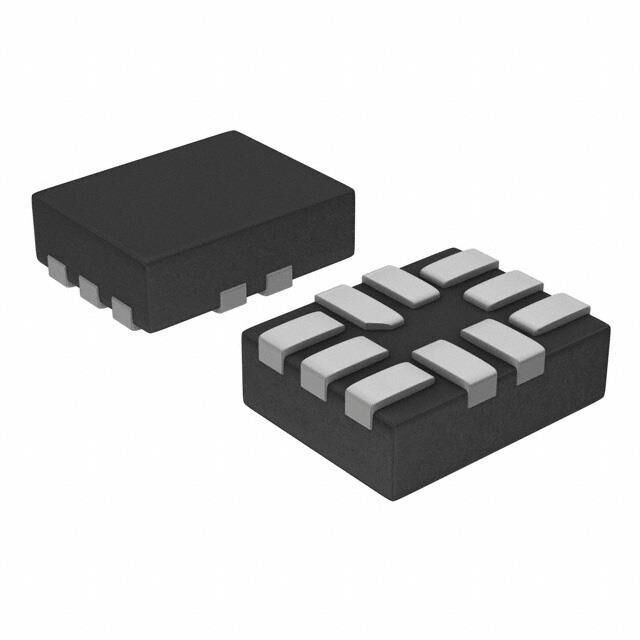

STMicroelectronics ECMF4-40A100N10	10-XFDFN	125 °C	-55 C	Signal Line	4	TVS Diode ESD Protection	0.087 in	2.2 mm	0.053 "	1.35 mm	100 mA	Surface Mount				0.02 in	0.5 mm	3 Ohm

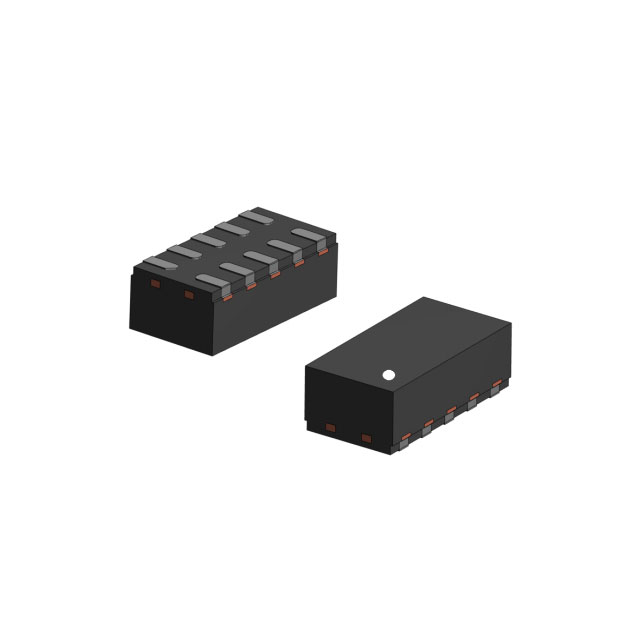

STMicroelectronics ECMF4-2459A6M10Y	QFN-10L	125 °C	-55 C			TVS Diode ESD Protection	0.102 "	2.6 mm	0.053 "	1.35 mm	100 mA	Surface Mount		0.8 mm	0.032 in

Catalog

4 lines Common mode filter with ESD protection for High Speed Serial interface

Description

The ECMF4-2459A6M10Y is an integrated common mode filter designed to suppress EMI/RFI common mode noise on high speed buses HDMI 2.0, HDMI2.1, HDMI 1.4 and DisplayPort, FPD link III, GMSL, USB3.2 generation 1 and 2 , MIPI. It is designed to replace discrete common mode chokes or LTCC. The device embeds ESD protections on connector side to meet ISO 10605 requirements. Packaged in QFN-10L with wettable flank, it is compatible with automatic visual inspection.
