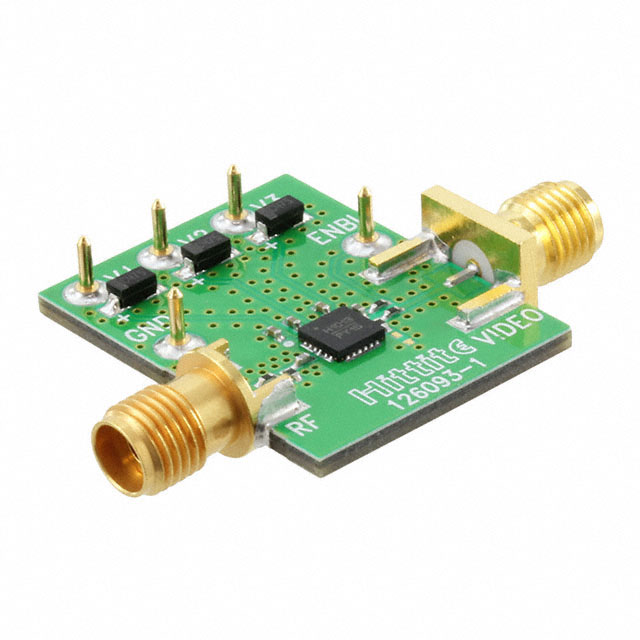

67 dB SMT SDLVA, 0.5 - 18.5 GHz
Key Features
• High Logging Range: 67 dB (-62 to +5 dBm)
• Output Frequency Flatness: ±2 dB
• Log Linearity: ±2 dB
• Fast Rise/Fall Times: 5/15 ns
• Single Positive Supply: +3.3V
• ESD Sensitivity (HBM): Class 1A
• 24 Lead 4x4mm SMT Package: 16mm2
Description
AI
The HMC1013LP4E is a Successive Detection Log Video Amplifier which operates from 0.5 to 18.5 GHz. The HMC1013LP4E provides a logging range of 67 dB. This device offers typical fast rise/fall times of 5/15 ns and a superior delay time of only 10 ns. The HMC1013LP4E log video output slope is typically 15 mV/dB. Maximum recovery times are less than 40 ns. The HMC1013LP4E is available in a highly compact 4x4 mm SMT plastic package and is ideal for high speed channelized receiver applications.APPLICATIONSEW, ELINT & IFM ReceiversDF Radar SystemsECM SystemsBroadband Test & MeasurementPower Measurement & Control CircuitsMilitary & Space Applications
