HMC425A Series

0.5 dB LSB GaAs MMIC 6-BIT DIGITAL POSITIVE CONTROL ATTENUATOR, 2.2 - 8.0 GHz

Catalog

0.5 dB LSB GaAs MMIC 6-BIT DIGITAL POSITIVE CONTROL ATTENUATOR, 2.2 - 8.0 GHz

Part	Frequency [Min]	Frequency [Max]	For Use With/Related Products	Type	Supplied Contents	Frequency Range [Min]	Frequency Range [Max]	Attenuation Value [custom]	Package / Case	Impedance	Attenuation Value [Max] [custom]	Attenuation Value [Min] [custom]

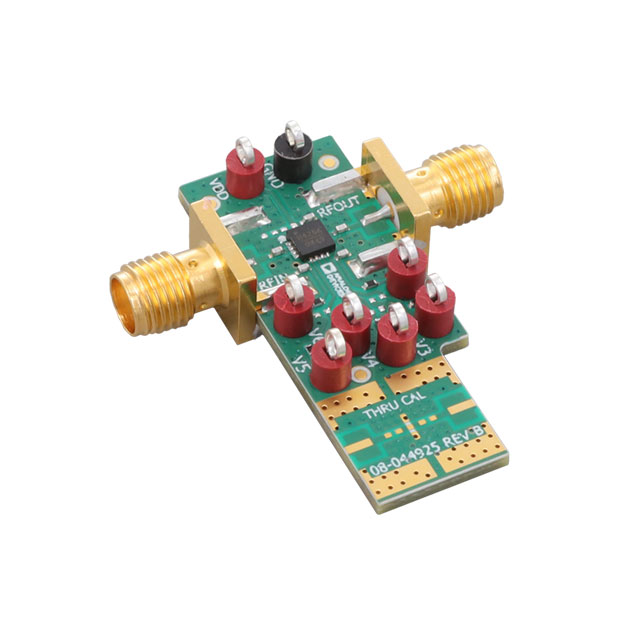

Analog Devices EV1HMC425ALP3E	2.2 GHz	8 GHz	HMC425ALP3E	Attenuator	Board(s)
Analog Devices HMC425ALP3ETR						2.2 GHz	8 GHz	31.5 dB	16-VFQFN Exposed Pad
Analog Devices HMC425LP3E						2.2 GHz	8 GHz		16-VFQFN Exposed Pad	50 Ohms	31.5 dB	0.5 dB
Analog Devices HMC425ALP3E						2.2 GHz	8 GHz	31.5 dB	16-VFQFN Exposed Pad
Analog Devices HMC425LP3TR									16-VFQFN Exposed Pad
Analog Devices HMC425LP3						2.2 GHz	8 GHz		16-VFQFN Exposed Pad	50 Ohms	31.5 dB	0.5 dB

Catalog

0.5 dB LSB GaAs MMIC 6-BIT DIGITAL POSITIVE CONTROL ATTENUATOR, 2.2 - 8.0 GHz

Key Features

• 0.5 dB LSB Steps to 31.5 dB

• Single Control Line Per Bit

• ± 0.5 dB Typical Bit Error

• Single +5V Supply

• 3×3 mm SMT Package

Description

HMC425ALP3E are broadband 6-bit GaAs IC digital attenuators in low cost leadless surface mount packages. Covering 2.2 GHz to 8.0 GHz, the insertion loss is less than 4.5 dB typical. The attenuator bit values are 0.5 (LSB), 1, 2, 4, 8, and 16 dB for a total attenuation of 31.5 dB. Attenuation accuracy is excellent at ± 0.5 dB typical step error with an IIP3 of +40 dBm. Six control voltage inputs, toggled between 0 and +3 to +5V, are used to select each attenuation state. A single VDD bias of +3 to +5V is required.ApplicationsWLAN & Point-to-Multi-PointFiber Optics & Broadband TelecomMicrowave Radio & VSATMilitary
