FX23L Series

Catalog

CONN HDR

Part	Features	Number of Rows [custom]	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mounting Type	Pitch	Pitch	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions [custom]	Number of Positions [custom]

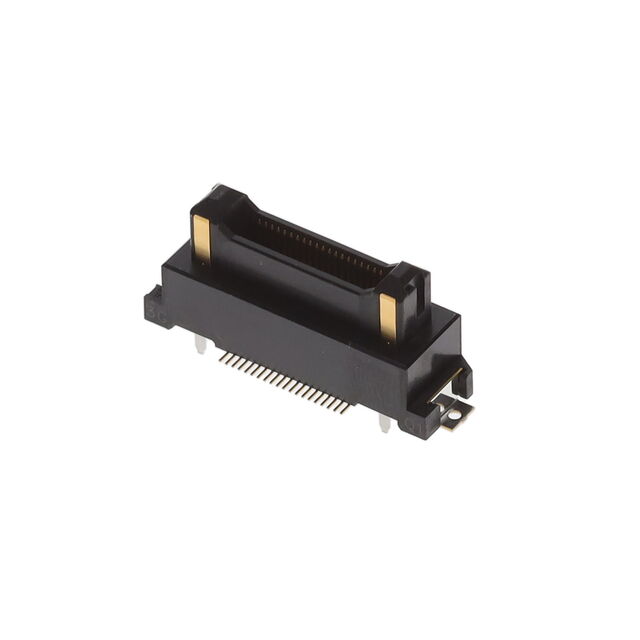

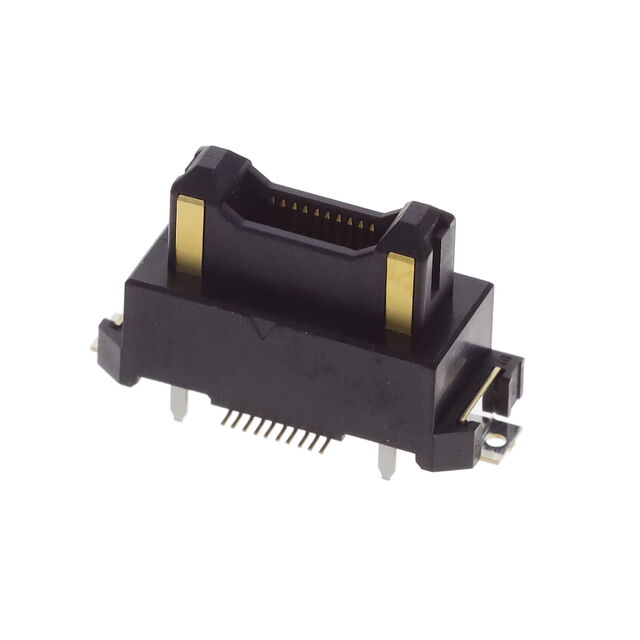

Hirose Electric Co Ltd FX23L-20P-0.5SV12(20)	Board Guide	2	24	4	20	0.427 in	10.85 mm	0.1 Ám	4 Áin	Header Outer Shroud Contacts	Surface Mount	0.02 "	0.5 mm	Gold

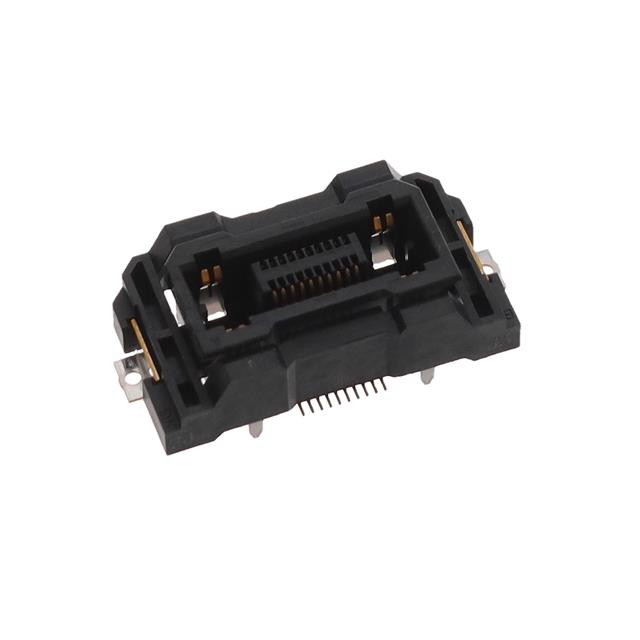

Hirose Electric Co Ltd FX23L-20S-0.5SV	Board Guide Pick and Place	2	24	4	20			0.1 Ám	4 Áin	Receptacle Center Strip Contacts	Surface Mount	0.02 "	0.5 mm	Gold	5.8 mm	0.228 in
Hirose Electric Co Ltd FX23L-20P-0.5SV12	Board Guide	2	24	4	20	0.427 in	10.85 mm	0.1 Ám	4 Áin	Header Outer Shroud Contacts	Surface Mount	0.02 "	0.5 mm	Gold
Hirose Electric Co Ltd FX23L-40P-0.5SV12	Board Guide	2		4		0.427 in	10.85 mm	0.1 Ám	4 Áin	Header Outer Shroud Contacts	Surface Mount	0.02 "	0.5 mm	Gold			40
Hirose Electric Co Ltd FX23L-20P-0.5SV12(01)	Board Guide	2	24	4	20	0.427 in	10.85 mm	0.1 Ám	4 Áin	Header Outer Shroud Contacts	Surface Mount	0.02 "	0.5 mm	Gold

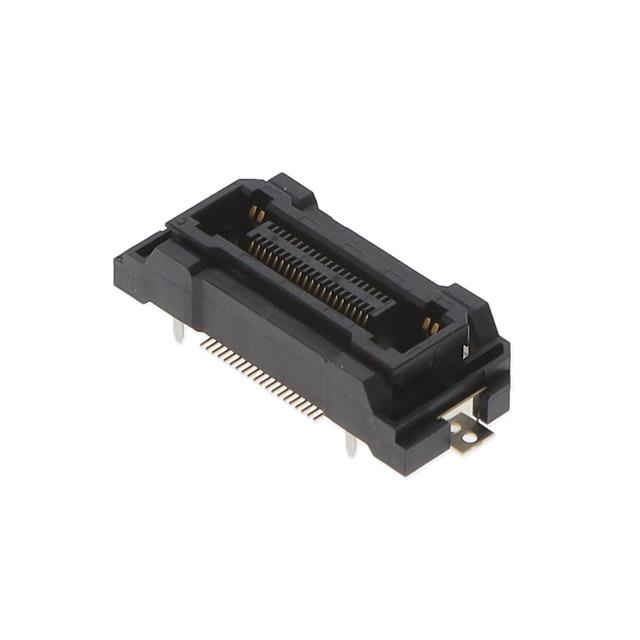

Hirose Electric Co Ltd FX23L-40S-0.5SV	Board Guide Pick and Place	2		4				0.1 Ám	4 Áin	Receptacle Center Strip Contacts	Surface Mount	0.02 "	0.5 mm	Gold	5.8 mm	0.228 in	40

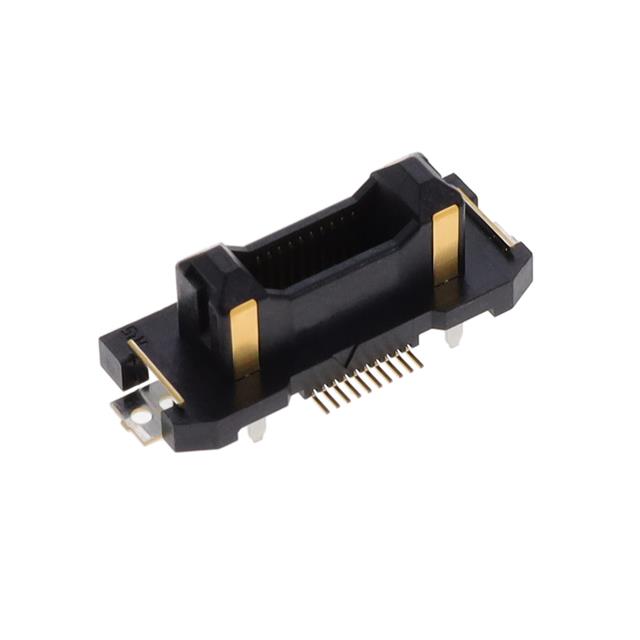

Hirose Electric Co Ltd FX23L-20P-0.5SV8	Board Guide	2	24	4	20			0.1 Ám	4 Áin	Header Outer Shroud Contacts	Surface Mount	0.02 "	0.5 mm	Gold	6.85 mm	0.27 in

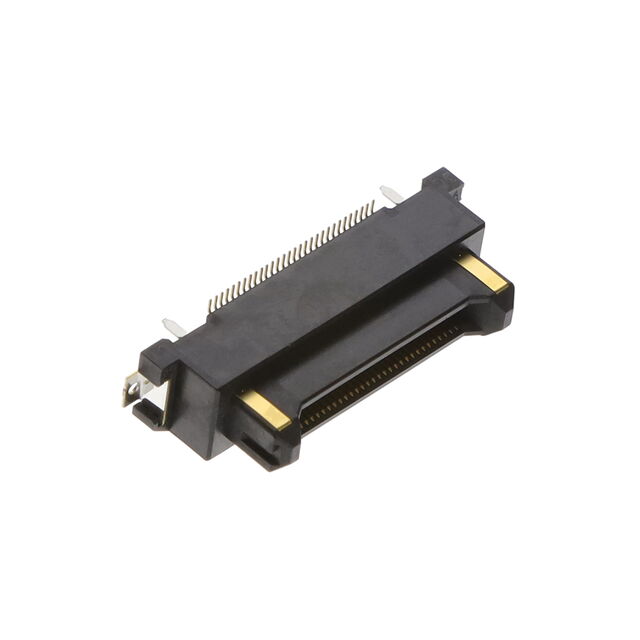

Hirose Electric Co Ltd FX23L-60P-0.5SV12	Board Guide	2		4		0.427 in	10.85 mm	0.1 Ám	4 Áin	Header Outer Shroud Contacts	Surface Mount	0.02 "	0.5 mm	Gold				60
Hirose Electric Co Ltd FX23L-100P-0.5SV10(20)	Board Guide	2	104					0.1 Ám	4 Áin	Header Outer Shroud Contacts	Surface Mount	0.02 "	0.5 mm	Gold	8.84 mm	0.348 in
Hirose Electric Co Ltd FX23L-100S-0.5SV	Board Guide Pick and Place	2	104					0.1 Ám	4 Áin	Receptacle Center Strip Contacts	Surface Mount	0.02 "	0.5 mm	Gold	5.8 mm	0.228 in
