638-078 Series
Manufacturer: EDAC Inc.
Beta
⌘K

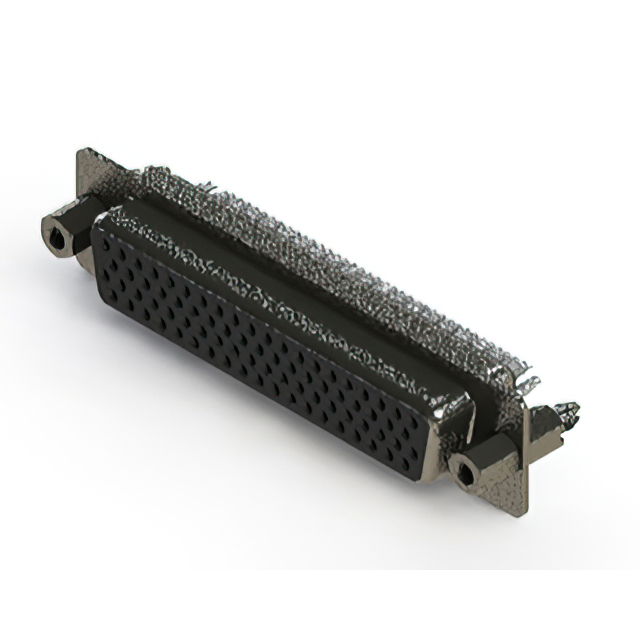

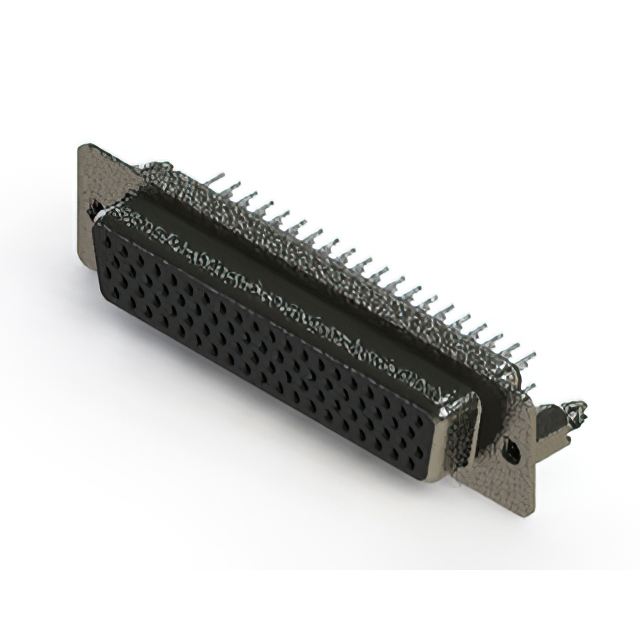

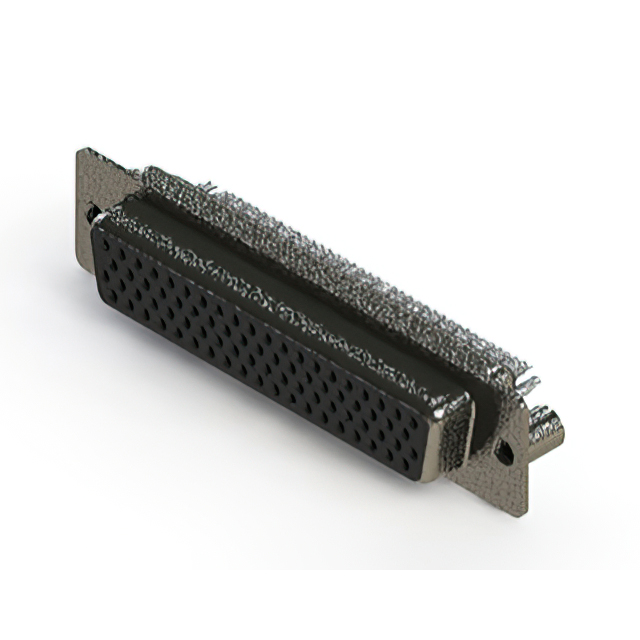

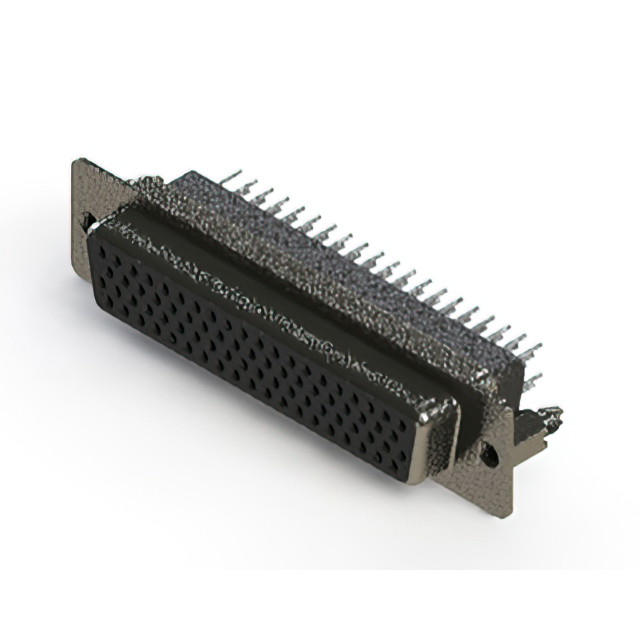

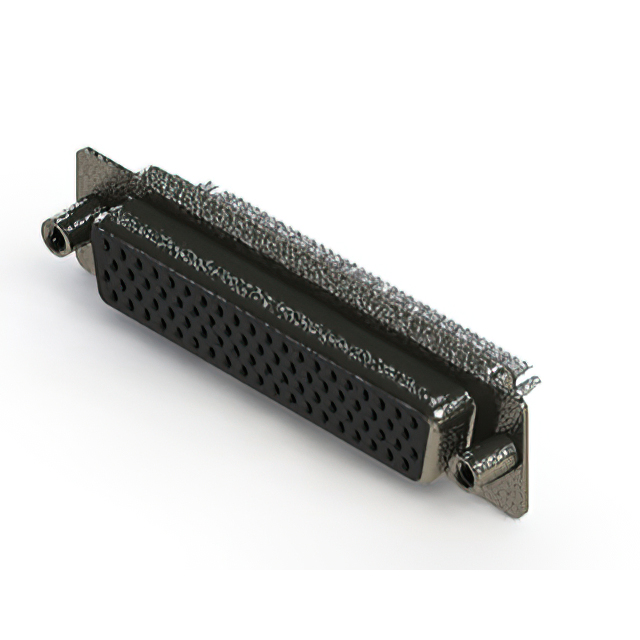

CONN D-SUB HD RCPT 78P VERT SLDR
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Current Rating (Amps) | Number of Positions | Termination | Contact Type | Mounting Type | Contact Finish | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Features | Material Flammability Rating | Connector Type | Connector Style | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 3 A | 78 | Solder | Signal | Through Hole | Gold | Housing/Shell | 4-40 | 30 Áin | 0.76 Ám | Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 3 A | 78 | Signal | Free Hanging (In-Line) | Gold | 4-40 | Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | Flash | |||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | 78 | Solder | Signal | Through Hole | Gold | 4-40 Mating Side Female Screwlock | 15 µin | 0.38 µm | Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | 78 | Solder | Signal | Through Hole | Gold | Housing/Shell | 4-40 | 30 Áin | 0.76 Ám | Board Lock Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 3 A | 78 | Solder | Signal | Through Hole | Gold | Housing/Shell | 4-40 | 15 µin | 0.38 µm | Board Lock Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | 78 | Signal | Free Hanging (In-Line) | Gold | 4-40 Mating Side Female Screwlock | Board Lock Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | Flash | Nickel Plated Steel | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 3 A | 78 | Solder | Signal | Through Hole | Gold | 4-40 Mating Side Female Screwlock | 15 µin | 0.38 µm | Board Lock Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | Nickel Plated Steel | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | 78 | Solder | Signal | Through Hole | Gold | Housing/Shell (Unthreaded) | 15 µin | 0.38 µm | Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 3 A | 78 | Signal | Free Hanging (In-Line) | Gold | 4-40 Mating Side Female Screwlock | 15 µin | 0.38 µm | Board Lock Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 3 A | 78 | Solder | Signal | Through Hole | Gold | Housing/Shell | 4-40 | 15 µin | 0.38 µm | Board Lock Shielded | UL94 V-0 | Receptacle Female Sockets | D-Sub High Density | Nickel Plated Steel |
