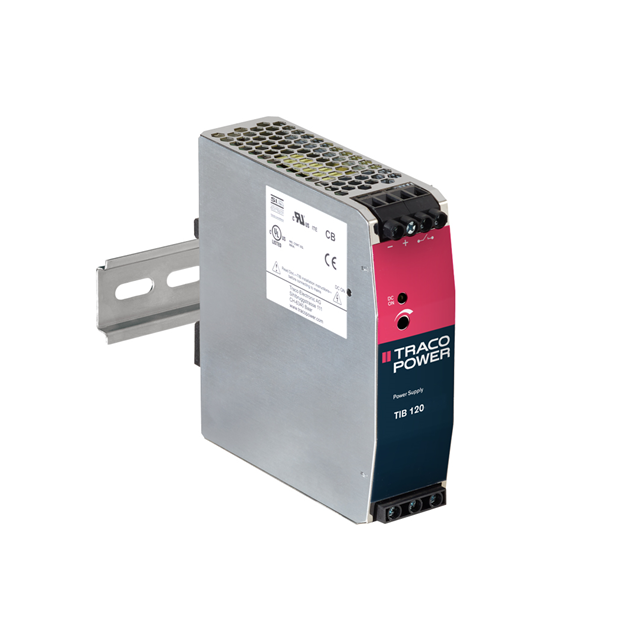

TIB 120 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC DIN RAIL SUPPLY 48V 120W
| Part | Voltage - Output 1 | Number of Outputs | Current - Output (Max) [Max] | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Power (Watts) | Efficiency | Approval Agency | Features | Input Type | AC Voltage - Input [Max] | AC Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 48 V | 1 | 2.5 A | Industrial ITE (Commercial) | 1.42 in | 124.2 mm | 114.2 mm | 4.5 in | 4.89 in | 36 mm | 4.25 kV | 120 W | 94 % | CB CE cULus cURus SIQ | Adjustable Output PFC Universal Input | AC | 264 VAC | 85 VAC |
