AZ943-1A Series

Catalog

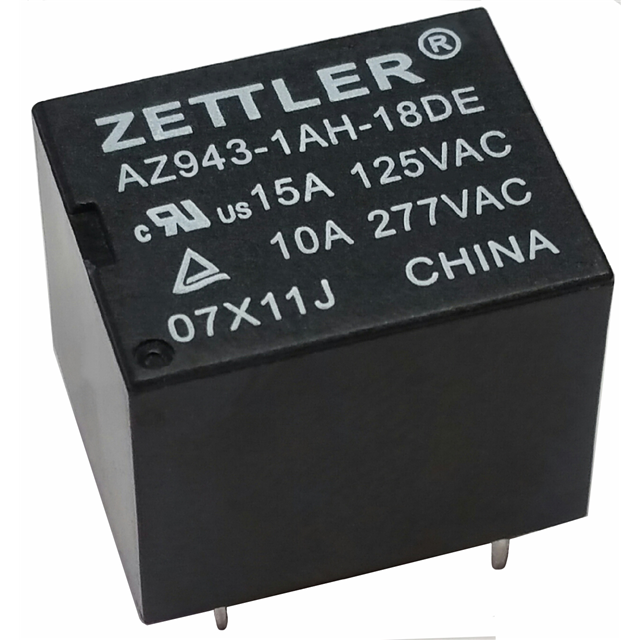

RELAY GEN PURPOSE SPST 15A 5V

Part	Coil Resistance	Contact Rating (Current)	Contact Form	Coil Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Coil Voltage	Release Time	Relay Type	Seal Rating	Coil Current	Contact Material	Must Release Voltage	Switching Voltage [Max]	Load - Max Switching	Termination Style	Mounting Type	Coil Insulation	Operate Time
American Zettler AZ943-1AH-5D	70 Ohms	15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	90 °C	-40 C	3.8 VDC	5 VDC	5 ms	General Purpose	Sealed - Flux Protection	71.4 mA	Silver Tin Oxide (AgSnO)	0.5 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class B	10 ms
American Zettler AZ943-1AH-48DE	6.4 kOhms	15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	90 °C	-40 C	36 VDC	48 VDC	5 ms	General Purpose	Sealed - Fully	7.5 mA	Silver Tin Oxide (AgSnO)	4.8 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class B	10 ms
American Zettler AZ943-1AH-18DEFG	900 Ohms	15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	110 °C	-40 C	13.5 VDC	18 VDC	5 ms	General Purpose	Sealed - Fully	0.02 A	Gold (Au) Silver Tin Oxide (AgSnO)	1.8 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class F	10 ms
American Zettler AZ943-1AH-24D	1.6 kOhms	15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	90 °C	-40 C	18 VDC	24 VDC	5 ms	General Purpose	Sealed - Flux Protection	0.015 A	Silver Tin Oxide (AgSnO)	2.4 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class B	10 ms
American Zettler AZ943-1AH-15DF		15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	110 °C	-40 C		15 VDC	5 ms	General Purpose	Sealed - Flux Protection		Silver Tin Oxide (AgSnO)	1.5 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class F	10 ms
American Zettler AZ943-1AH-24DE	1.6 kOhms	15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	90 °C	-40 C	18 VDC	24 VDC	5 ms	General Purpose	Sealed - Fully	0.015 A	Silver Tin Oxide (AgSnO)	2.4 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class B	10 ms
American Zettler AZ943-1AH-12DE	400 Ohms	15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	90 °C	-40 C	9 VDC	12 VDC	5 ms	General Purpose	Sealed - Fully	0.03 A	Silver Tin Oxide (AgSnO)	1.2 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class B	10 ms
American Zettler AZ943-1AH-24DEG	1.6 kOhms	15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	90 °C	-40 C	18 VDC	24 VDC	5 ms	General Purpose	Sealed - Fully	0.015 A	Gold (Au) Silver Tin Oxide (AgSnO)	2.4 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class B	10 ms
American Zettler AZ943-1AH-6D	100 Ohms	15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	90 °C	-40 C	4.5 VDC		5 ms	General Purpose	Sealed - Flux Protection	0.06 A	Silver Tin Oxide (AgSnO)	0.6 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class B	10 ms
American Zettler AZ943-1AH-6DE	100 Ohms	15 A	SPST-NO (1 Form A)	Non Latching	cUR TUV UL VDE	90 °C	-40 C	4.5 VDC		5 ms	General Purpose	Sealed - Fully	0.06 A	Silver Tin Oxide (AgSnO)	0.6 VDC	30 VDC 277 VAC	300 W 2770 VA	PC Pin	Through Hole	Class B	10 ms
