APA075 Series

Ultra Low Density FPGAs

Catalog

Ultra Low Density FPGAs

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Gates	Total RAM Bits	Supplier Device Package	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of I/O

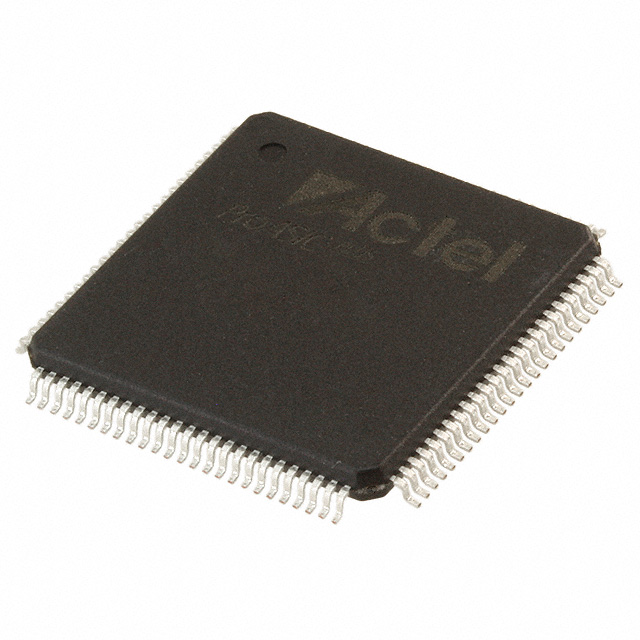

Microchip Technology APA075-TQG100I	85 °C	-40 °C	Surface Mount	75000	27648	100-TQFP (14x14)	100-LQFP	2.7 V	2.3 V	66 I/O
Microchip Technology APA075-TQG100A	125 ¯C	-40 °C	Surface Mount	75000	27648	100-TQFP (14x14)	100-LQFP	2.625 V	2.375 V	66 I/O
Microchip Technology APA075-FGG144	70 °C	0 °C	Surface Mount	75000	27648	13x13 144-FPBGA	144-LBGA	2.7 V	2.3 V	100 I/O
Microchip Technology APA075-TQ144I	85 °C	-40 °C	Surface Mount	75000	27648	144-TQFP (20x20)	144-LQFP	2.7 V	2.3 V	107
Microchip Technology APA075-PQG208I	85 °C	-40 °C	Surface Mount	75000	27648	208-PQFP (28x28)	208-BFQFP	2.7 V	2.3 V	158
Microchip Technology APA075-TQG100	70 °C	0 °C	Surface Mount	75000	27648	100-TQFP (14x14)	100-LQFP	2.7 V	2.3 V	66 I/O
Microchip Technology APA075-PQ208I	85 °C	-40 °C	Surface Mount	75000	27648	208-PQFP (28x28)	208-BFQFP	2.7 V	2.3 V	158
Microchip Technology APA075-TQ100I	85 °C	-40 °C	Surface Mount	75000	27648	100-TQFP (14x14)	100-LQFP	2.7 V	2.3 V	66 I/O
Microchip Technology APA075-TQ100A	125 ¯C	-40 °C	Surface Mount	75000	27648	100-TQFP (14x14)	100-LQFP	2.625 V	2.375 V	66 I/O
Microchip Technology APA075-PQ208	70 °C	0 °C	Surface Mount	75000	27648	208-PQFP (28x28)	208-BFQFP	2.7 V	2.3 V	158

Catalog

Ultra Low Density FPGAs

Key Features

• * 1K logic elements

• * 27Kb RAM

• * 2 PLL in CCC

• * PCI

• * Temperature - Commercial, Industrial, Automotive

Description

The ProASICPLUS family of devices, combines the advantages of ASICs with the benefits of programmable devices through nonvolatile flash technology. Key Features • Reprogrammable • Nonvolatile • Live at power-up • ASIC design flow • Very low power • PLLs and LVPECL I/O
