ACST6 Series

Catalog

TRIAC SENS GATE 700V 6A TO220FP

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Triac Type	Configuration	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max)	Supplier Device Package	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
STMicroelectronics ACST6-7SFP	45 A 50 A	10 mA	Logic - Sensitive Gate	Single	25 mA	700 V	1.5 V	TO-220FP	6 A	TO-220-3 Full Pack	125 °C	-30 °C	Through Hole

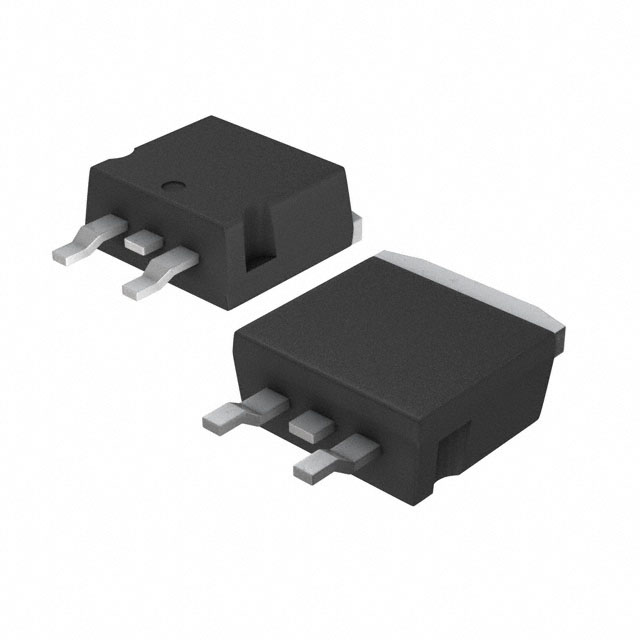

STMicroelectronics ACST6-7SG	45 A 50 A	10 mA	Logic - Sensitive Gate	Single	25 mA	700 V	1.5 V	D2PAK	6 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	125 °C	-30 °C	Surface Mount
STMicroelectronics ACST610-8G	45 A 47 A	10 mA	Logic - Sensitive Gate	Single	25 mA	800 V	1 V	D2PAK	6 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	125 °C	-40 C	Surface Mount

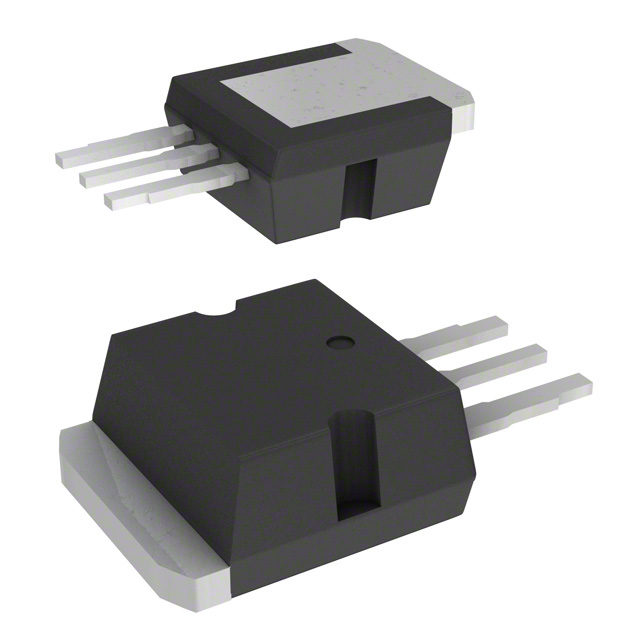

STMicroelectronics ACST6-7SR	45 A 50 A	10 mA	Logic - Sensitive Gate	Single	25 mA	700 V	1.5 V	I2PAK	6 A	TO-262-3 Short Leads I2PAK	125 °C	-30 °C	Through Hole
STMicroelectronics ACST610-8T	45 A 47 A	10 mA	Logic - Sensitive Gate	Single	25 mA	800 V	1 V	TO-220	6 A	TO-220-3	125 °C	-40 C	Through Hole
STMicroelectronics ACST6-7SG-TR	45 A 50 A	10 mA	Logic - Sensitive Gate	Single	25 mA	700 V	1.5 V	D2PAK	6 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	125 °C	-30 °C	Surface Mount
STMicroelectronics ACST6-7ST	45 A 50 A	10 mA	Logic - Sensitive Gate	Single	25 mA	700 V	1.5 V	TO-220	6 A	TO-220-3	125 °C	-30 °C	Through Hole
STMicroelectronics ACST610-8GTR	45 A 47 A	10 mA	Logic - Sensitive Gate	Single	25 mA	800 V	1 V	D2PAK	6 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	125 °C	-40 C	Surface Mount
STMicroelectronics ACST610-8R	45 A 47 A	10 mA	Logic - Sensitive Gate	Single	25 mA	800 V	1 V	I2PAK	6 A	TO-262-3 Short Leads I2PAK	125 °C	-40 C	Through Hole
STMicroelectronics ACST610-8FP	45 A 47 A	10 mA	Logic - Sensitive Gate	Single	25 mA	800 V	1 V	TO-220FPAB	6 A	TO-220-3 Full Pack	125 °C	-40 C	Through Hole
