L78M Series

Catalog

STANDARD REGULATOR POS 10V 0.5A 3-PIN(2+TAB) DPAK T/R

Part	Current - Output	PSRR	Supplier Device Package	Voltage - Output (Min/Fixed)	Number of Regulators	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Mounting Type	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Package / Case
STMicroelectronics L78M10ABDT-TR	500 mA	56 dB	DPAK	10 V	1	6 mA	35 V	Surface Mount	Over Current Over Temperature Short Circuit	125 °C	-40 C	Positive	DPAK (2 Leads + Tab) SC-63 TO-252-3

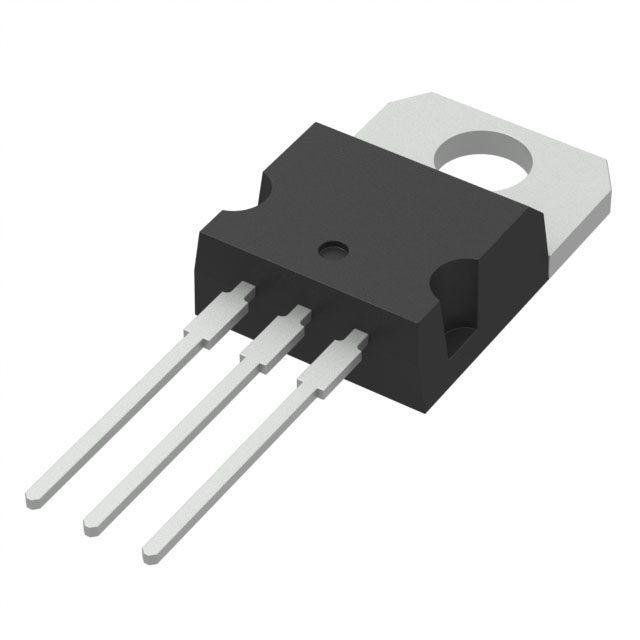

STMicroelectronics L78M05CV	500 mA	62 dB	TO-220	5 V	1	6 mA	35 V	Through Hole	Over Current Over Temperature Short Circuit	150 °C	0 °C	Positive	TO-220-3
STMicroelectronics L78M09ABDT-TR	500 mA	56 dB	DPAK	9 V	1	6 mA	35 V	Surface Mount	Over Current Over Temperature Short Circuit	125 °C	-40 C	Positive	DPAK (2 Leads + Tab) SC-63 TO-252-3
STMicroelectronics L78M05ABDT-TR	500 mA	62 dB	DPAK	5 V	1	6 mA	35 V	Surface Mount	Over Current Over Temperature Short Circuit	125 °C	-40 C	Positive	DPAK (2 Leads + Tab) SC-63 TO-252-3
STMicroelectronics L78M24ABDT-TR	500 mA	50 dB	DPAK	24 V	1	6 mA		Surface Mount	Over Current Over Temperature Short Circuit	125 °C	-40 C	Positive	DPAK (2 Leads + Tab) SC-63 TO-252-3
STMicroelectronics L78M08ABDT-TR	500 mA	56 dB	DPAK	8 V	1	6 mA	35 V	Surface Mount	Over Current Over Temperature Short Circuit	125 °C	-40 C	Positive	DPAK (2 Leads + Tab) SC-63 TO-252-3
STMicroelectronics L78M08CDT-TR	500 mA	56 dB	DPAK	8 V	1	6 mA	35 V	Surface Mount	Over Current Over Temperature Short Circuit	125 °C	0 °C	Positive	DPAK (2 Leads + Tab) SC-63 TO-252-3
STMicroelectronics L78M15ABDT-TR	500 mA	54 dB	DPAK	15 V	1	6 mA	35 V	Surface Mount	Over Current Over Temperature Short Circuit	125 °C	-40 C	Positive	DPAK (2 Leads + Tab) SC-63 TO-252-3
STMicroelectronics L78M05CDT-TR	500 mA	62 dB	DPAK	5 V	1	6 mA	35 V	Surface Mount	Over Current Over Temperature Short Circuit	150 °C	0 °C	Positive	DPAK (2 Leads + Tab) SC-63 TO-252-3
STMicroelectronics L78M15CDT-TR	500 mA	54 dB	DPAK	15 V	1	6 mA	35 V	Surface Mount	Over Current Over Temperature Short Circuit	125 °C	0 °C	Positive	DPAK (2 Leads + Tab) SC-63 TO-252-3
